Electrician Training Workbench for Electrical Labs
This electrician training workbench is designed for educational purposes in electrical laboratories. It provides a comprehensive platform for students to learn and practice electrical wiring, circuit design, and troubleshooting skills.
Technical Specifications
Overview
Professional Electrical Training Solution

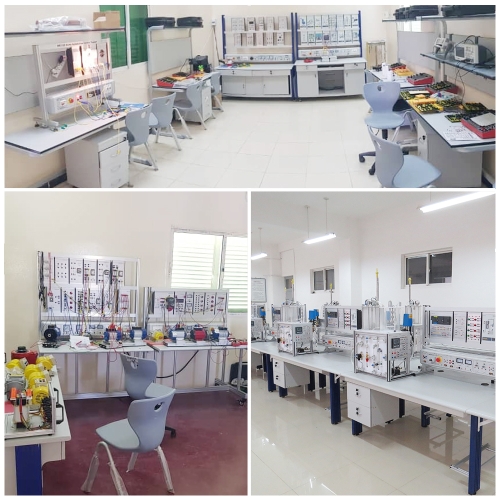

The AF006E Electrician Training Workbench is a double-sided educational platform designed for simultaneous use by two students in electrical laboratory environments. Constructed with a durable aluminum frame and high-precision CNC-machined stainless steel patch boards, it provides a robust and rust-resistant surface for intensive technical training. This versatile system supports a wide range of curriculum needs, from basic electrical skills to advanced automation circuit demonstrations and technical evaluations.
Technical Specifications
Input Power Requirements
- Three-phase five-wire system
- AC 380V ±10% (50Hz)
- Single-phase AC 220V ±10% (50Hz)
DC Power Supply
- DC Power Features
- Piecewise AdjustableDigital DisplayShort Circuit ProtectionSoft RecoverySound & Light Alarm
Construction & Design
- Frame Material
- Industrial aluminum structure with Dutch powder spray finish
- Patch Board Specifications
- SU304 Stainless steel with 5x10mm square installation holes
- Worktop Thickness
- 25 mm
Safety & Mobility
Safety Systems
- Emergency stop button
- Breaker controller
- Safety electrical cables
- Insulated power box with anodic oxidation treatment
- Safety-shuttered sockets
- Mobility Features
- 4 Universal wheels (2 equipped with brakes)
Components
Storage and Hardware
| Component | Quantity |
|---|---|
| Stainless Patch Boards | 2 Pieces |
| Installation Seats & Bolts | 600 Pairs |
| Guide Rail Drawers | 2 Units |
| Push & Plug Cabinet | 1 Unit |
| Aluminum Columns | 2 Long, 2 Short |
