Electrical Power Distribution Terminal Block
This distribution terminal block is designed for electrical power transmission and distribution applications. It features multiple terminal points for connecting and distributing electrical power.
Technical Specifications
Overview
Reliable Power Distribution Solution
This electrical power distribution terminal block is designed for secure and efficient wiring in industrial and commercial applications. Featuring a robust construction with a transparent cover for easy visual inspection, it ensures reliable connectivity across various wire sizes. The unit is engineered for fast installation on DIN rails, making it an ideal choice for organized and safe power transmission.
Key Features
Transparent Inspection CoverStrong Wiring CapabilityFast InstallationSecure Screw Terminals
Electrical Performance
Key Performance Metrics
125 A
Rated Current
500 V
Insulation Voltage (Ui)
20 kA
Peak Short-Circuit Current (Ipk)
- Standards
- EN 60947-1CE

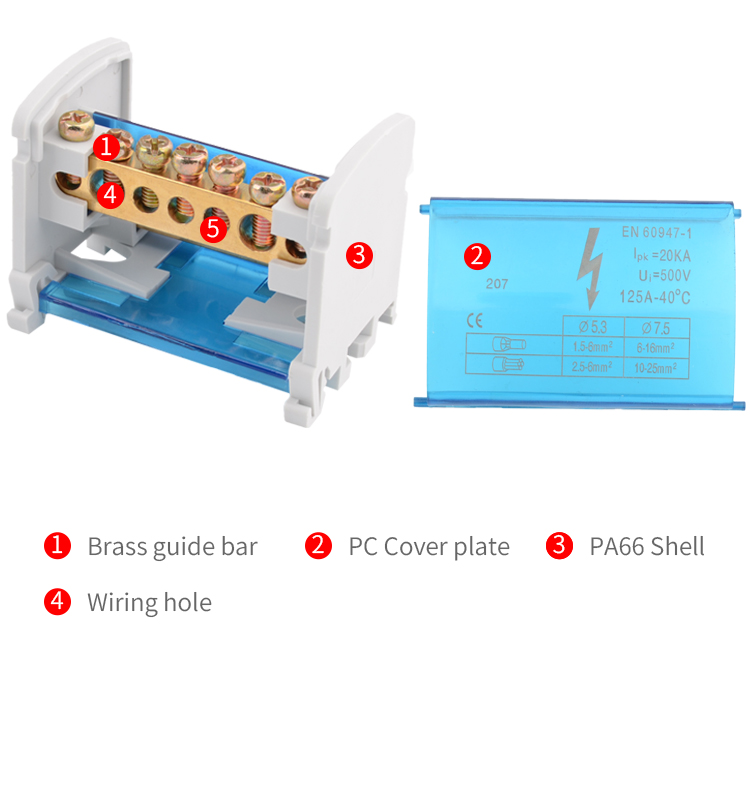

Construction & Materials
Material Specifications
| Component | Material |
|---|---|
| Guide Bar | Brass |
| Shell | PA66 |
| Cover Plate | PC (Polycarbonate) |
| Base | White Housing |
Wiring & Connectivity
Supported Wire Sizes
- 1.5-6mm² (Ø5.3)
- 2.5-6mm²
- 6-16mm² (Ø7.5)
- 10-16mm²
- 10-25mm²
- 10-35mm²
- Terminal Diameters
- Ø5.3Ø7.5Ø9

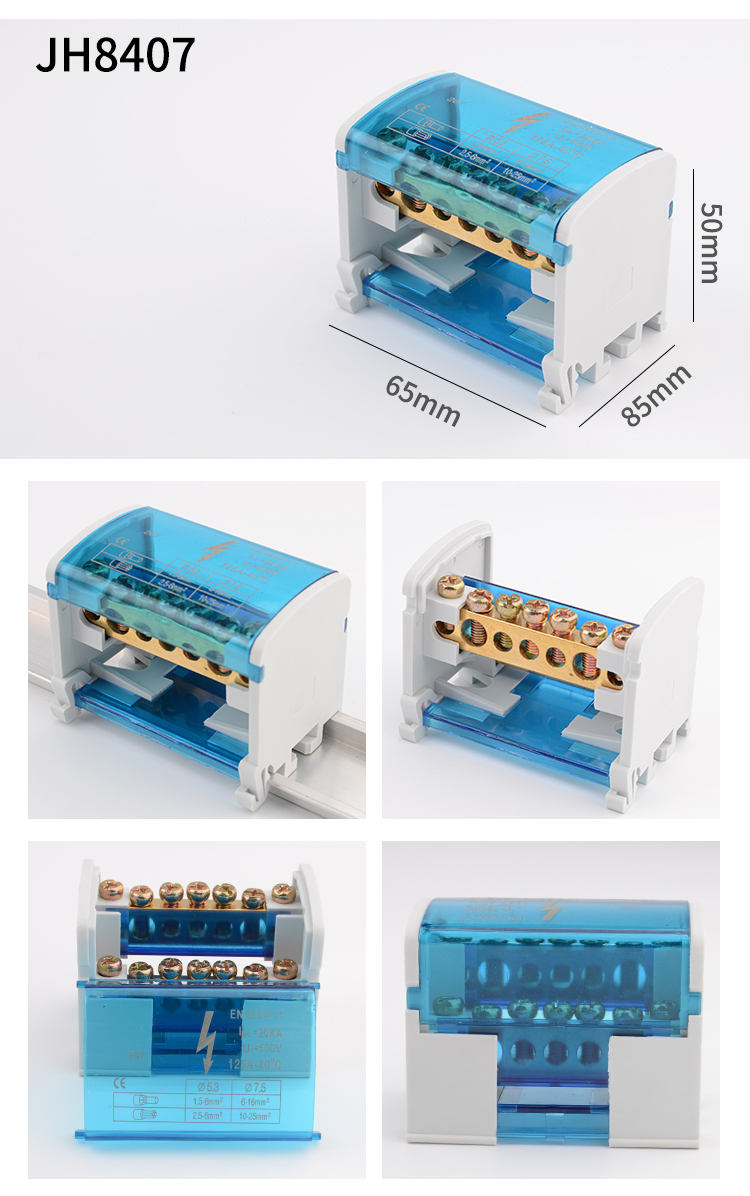

Physical Dimensions
- Width
- 85 mm
- Height
- 50 mm
- Length
- 65 mm
- Mounting Method
- DIN Rail
