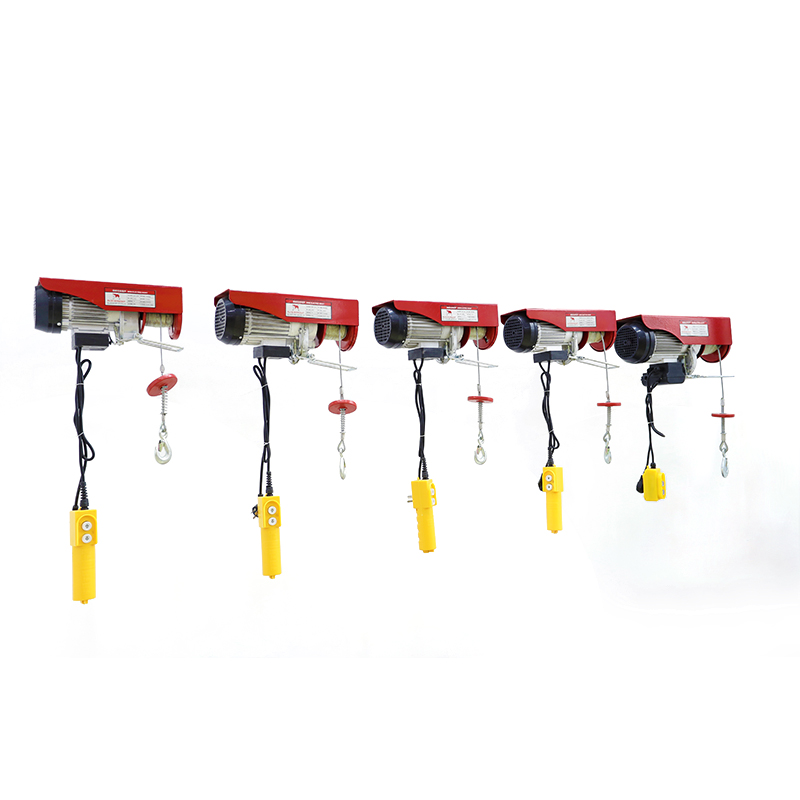

Electric Wire Rope Hoist, 500-1000kg Capacity
This electric hoist provides a lifting capacity ranging from 500kg to 1000kg, suitable for various lifting tasks. It features a durable steel cable and a user-friendly control pendant for precise operation.
Technical Specifications
Overview
Versatile Lifting Solution
This electric wire rope hoist is designed to provide reliable performance for both light and heavy-duty lifting tasks in workshops, construction sites, and warehouses. It features a robust electric motor and a durable steel cable, ensuring secure and efficient operation. With integrated safety mechanisms like an emergency stop button and overload protection, this hoist offers a secure working environment for various professional applications.
Performance Specifications
Lifting Capacity
500 kg
Single Rope
1,000 kg
Double Rope
Lifting Height
12 m
Single Rope
6 m
Double Rope
Lifting Speed
10 m/min
Single Rope
5 m/min
Double Rope
Technical Details
- Input Power
- 950 W
- Voltage/Frequency
- 220V-240V, 50Hz
Safety & Features
- Safety Features
- Emergency Stop ButtonOverload Protection
- Control Method
- User-friendly control pendant
Applications
Recommended Environments
- Workshops
- Construction Sites
- Warehouses
- Agricultural Settings
