Technical Specifications
Overview
Modern Efficient Water Heating
This electric water heater combines advanced energy-saving technology with a durable design, offering 20% less power consumption than 5-star BEE standards. Featuring a high-impact ABS body and a specialized enamel tank, it provides a reliable and long-lasting hot water solution for modern bathrooms. The unit is equipped with a digital display for precise temperature monitoring and offers flexible installation options for both under and above sink configurations.
Performance Metrics
Key Performance Indicators
Technical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 220-240V~ / 110-120V~ |
| Rated Frequency | 50/60Hz |
| Rated Power Options | 500W, 1000W, 1500W, 2000W, 2500W |
| Waterproof Degree | IPX4 |
Tank & Construction

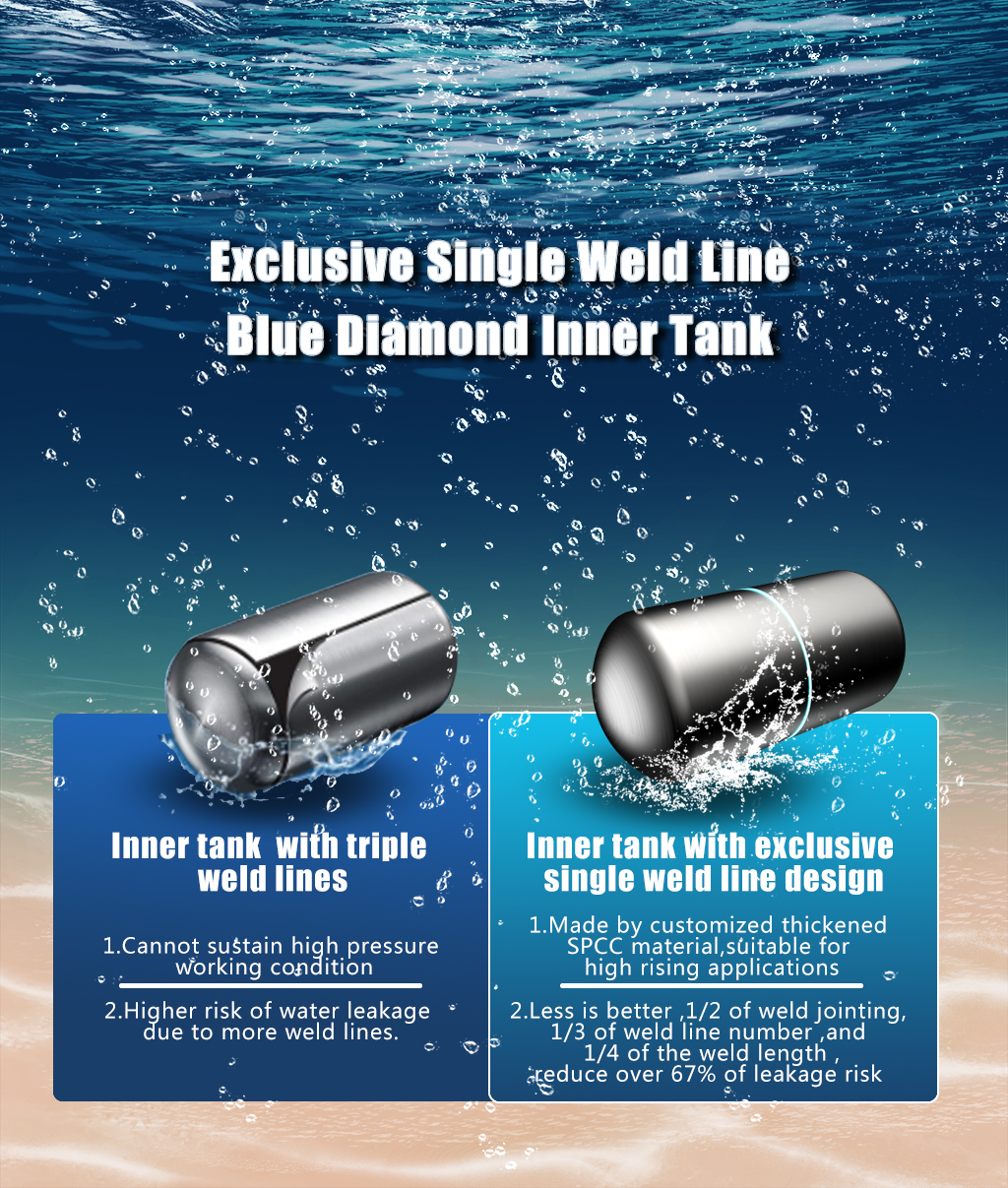

Blue Diamond Inner Tank
The inner tank is constructed from customized thickened SPCC material with a quadro-layer enamel coating. It features an exclusive single weld line design which reduces the weld length by 75% and the number of weld lines by two-thirds compared to traditional triple-weld tanks, resulting in a 67% reduction in leakage risk.
- Rated Pressure
- 0.8 MPa
Heating Element
- Heating Element Features
- Anti-scaleAnti-bacterialSelf-cleaningHigh Corrosion ResistanceStable Performance
Features & Control
Advanced Features

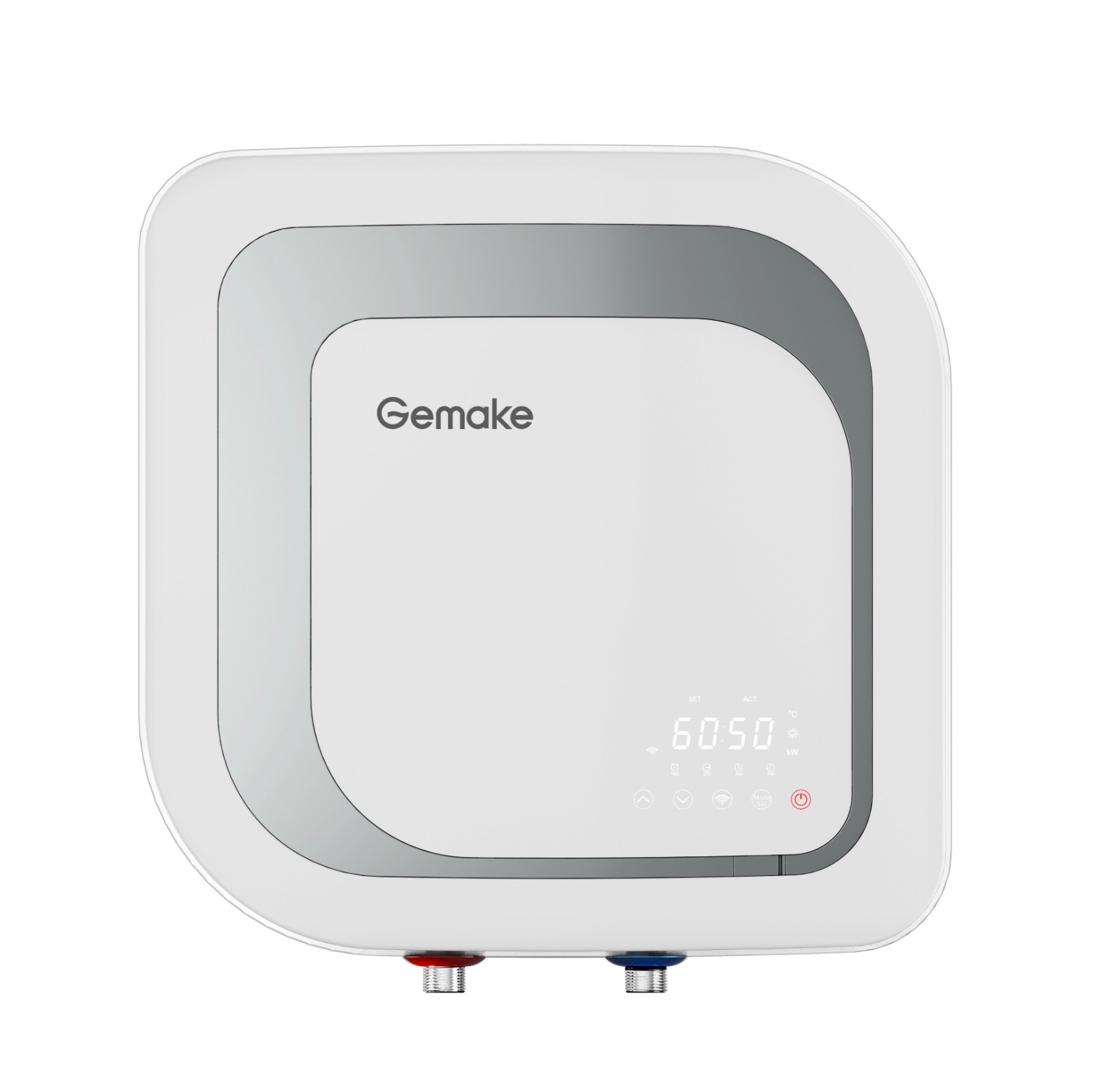

- Digital display for Set and Actual temperatures
- Optional WIFI connectivity
- R/F control capability
- H/R Light indicator available
- Multiple color options for outer shell
- High impact resistant ABS body
- Temperature Adjustment
- Ambient to 75℃
