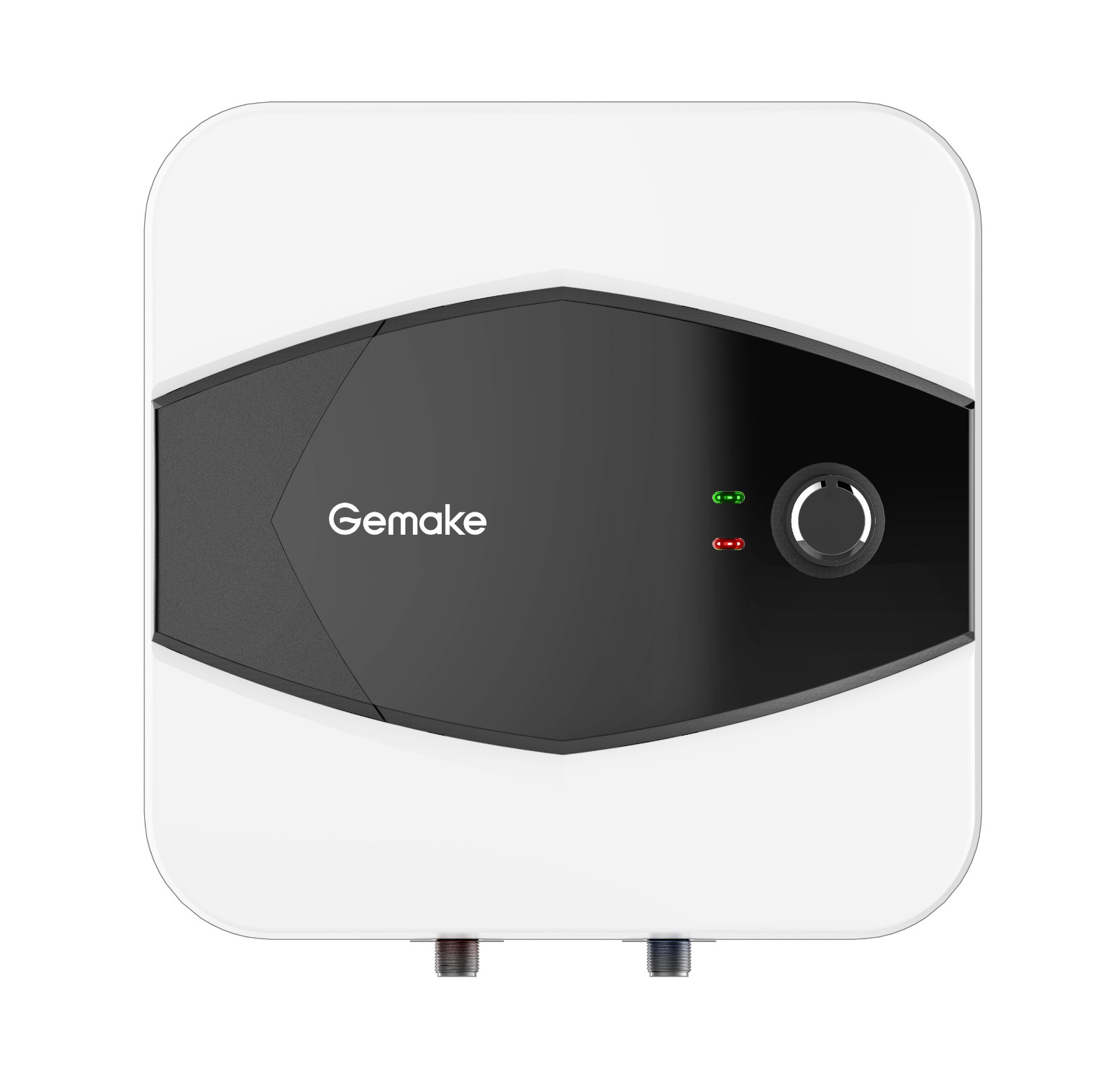

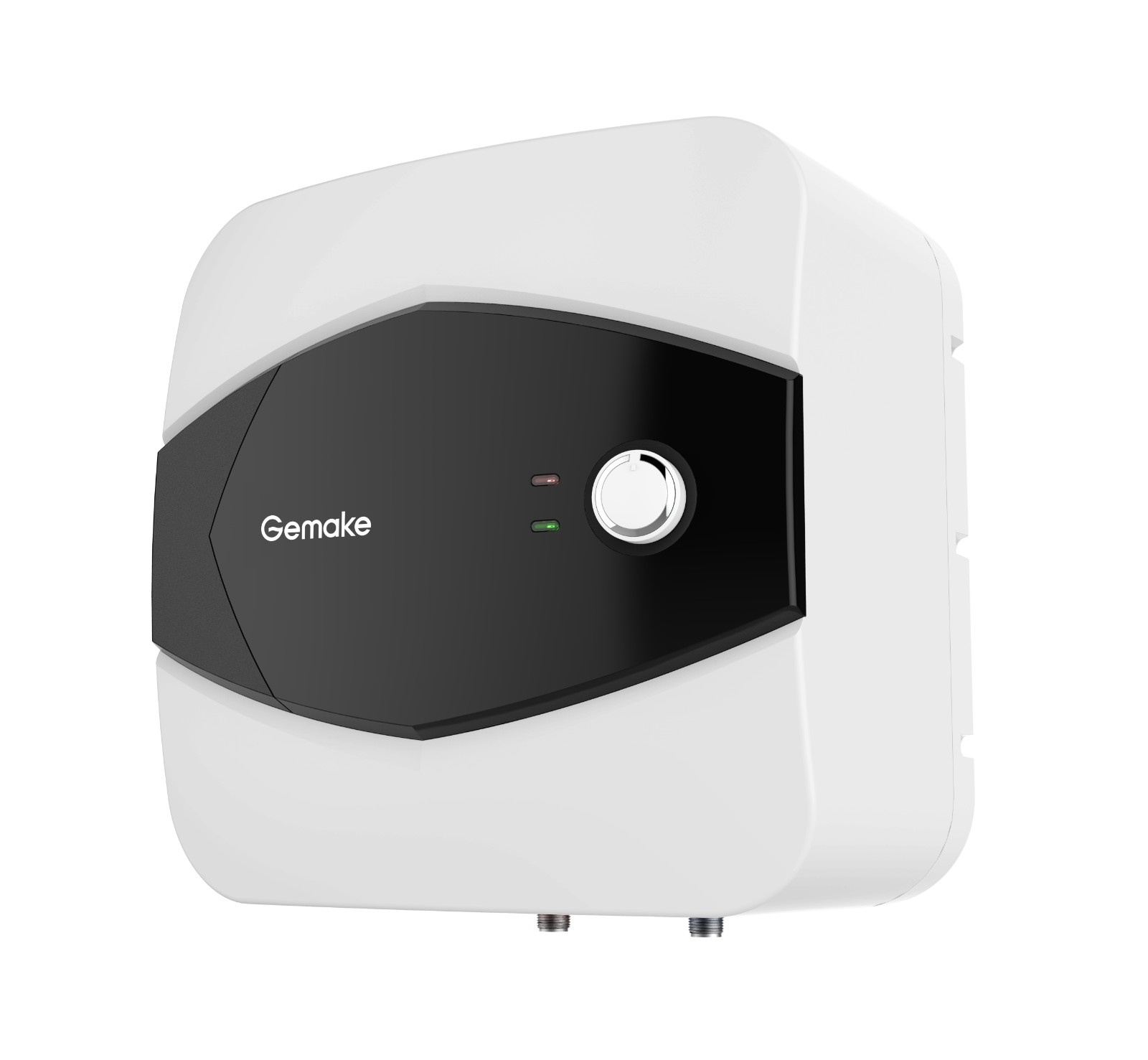

Electric Water Heater with ABS Body
This electric water heater features a high-impact resistant ABS body. The quadro-layer enameled SPCC tank ensures a longer product life.
Technical Specifications
Overview
High-Efficiency Electric Water Heater
This electric water heater features a high-impact resistant ABS body and a specialized Quadro-layer enameled SPCC tank for extended product life. Designed for versatility, it supports both under-sink and above-sink installations with multiple color options for the outer shell. With a 5-star BEE energy rating and advanced insulation materials, it provides superior energy saving and environmental protection for residential applications.
Key Performance Metrics
Performance Highlights
0.8 MPa
Rated Pressure
75 ℃
Max Temperature
5 Star
BEE Energy Star
Technical Specifications
Power Options
- 500W
- 1000W
- 1500W
- 2000W
- 2500W
Water Proof Degree
IPX4
- Rated Voltage
- 220-240V~110-120V~
- Rated Frequency
- 50Hz60Hz
Construction & Design
Core Features
- Under or above sink available
- H/R Light available
- New generation insulation material
- Multiple color options for outer shell
- Anti-scale and self-cleaning design
- Body Material
- High impact resistant ABS
- Tank Construction
- Quadro-layer enameled SPCC tank

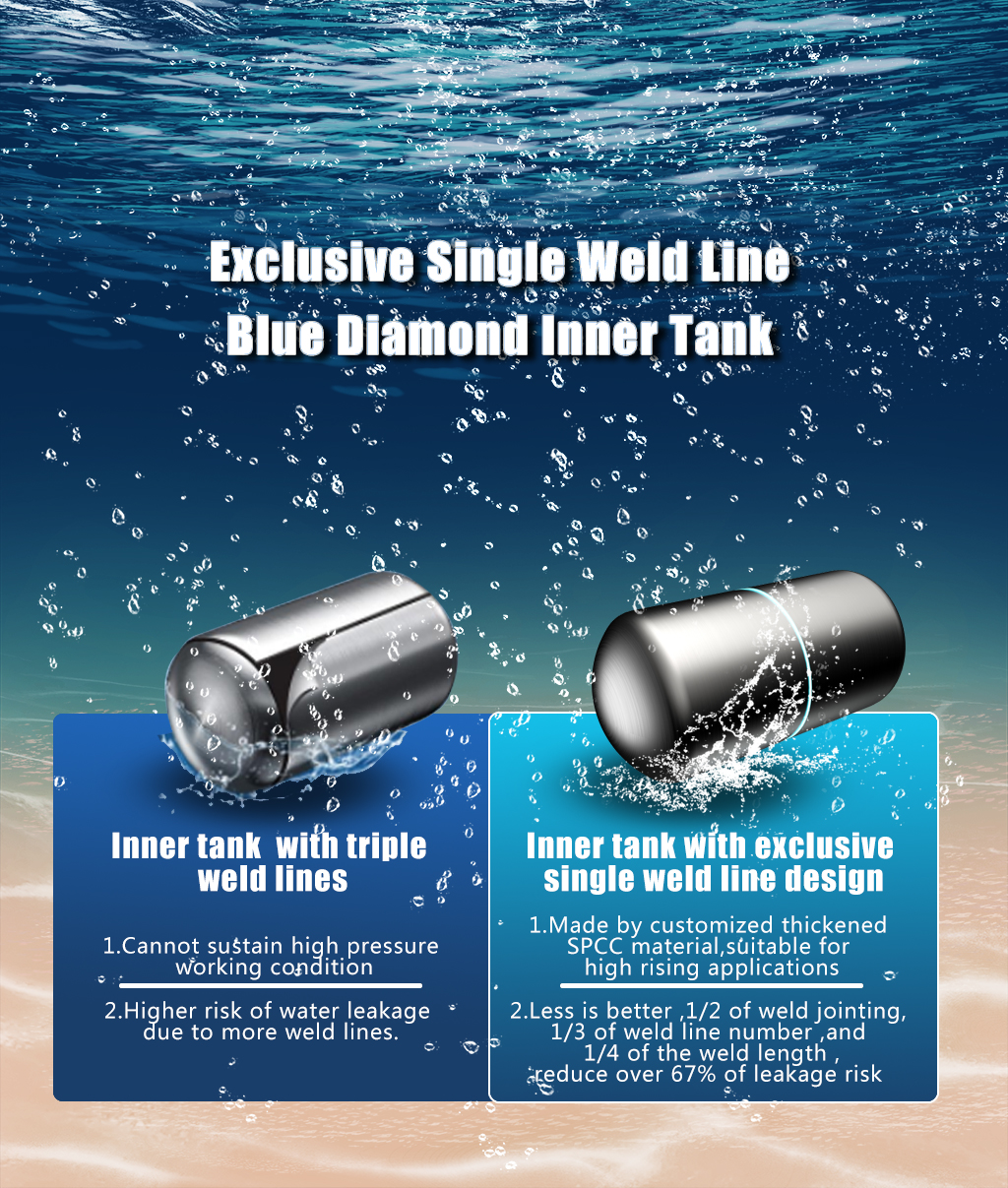

Tank Engineering
Weld Technology
| Feature | Benefit |
|---|---|
| Single Weld Line | Reduces leakage risk by over 67% |
| Weld Jointing | Reduced by 1/2 compared to triple weld designs |
| Weld Length | Reduced by 1/4 for better pressure resistance |
| Material | Customized thickened SPCC for high-rise use |

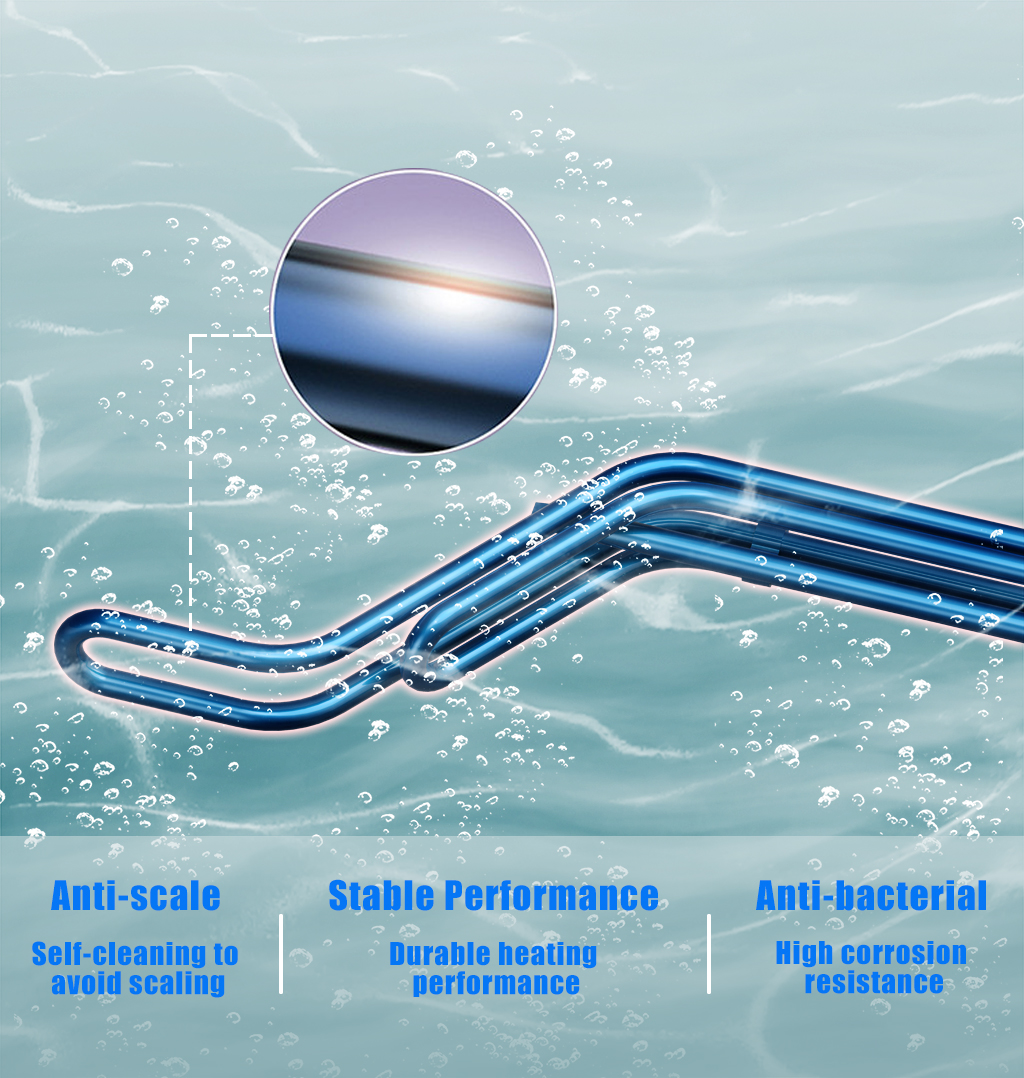

Heating Element
- Heating Element Performance
- Anti-scaleAnti-bacterialCorrosion ResistantDurable Performance
