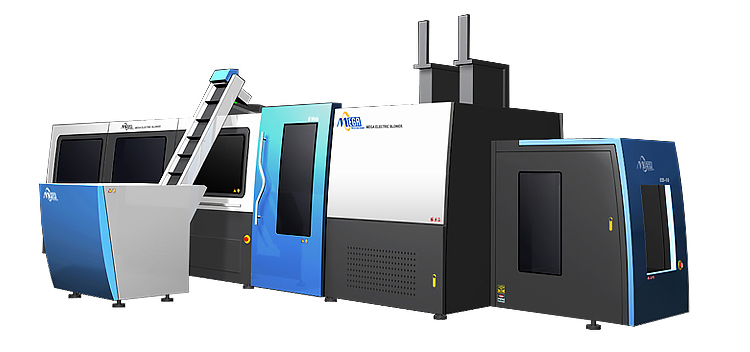

Electric Stretch Blow Molding Machine
This electric stretch blow molding machine utilizes a linear design for efficient production. It features a variable pitch unit, synchronized heating system, and high-speed clamping for creating bottles.
Technical Specifications
Machine Overview
Production Capacity
10,000 BPH
Output
10
Cavities
High-Efficiency Production
This linear electric stretch blow molding machine incorporates advanced servo-driven technology and a synchronized heating system to optimize production efficiency. Designed for high-volume manufacturing, it features a 10-cavity configuration capable of producing 10,000 bottles per hour. The system significantly reduces bottle production costs compared to traditional rotary and hydraulic blow molding alternatives while maintaining consistent quality.
- Machine Type
- Linear Electric Stretch Blow Molding
Key Features
Clamping System Details
- Double-sided pneumatic compensation
- Toggle clamp design
- Self-lubricating graphite bearings
- Synchronized horizontal and vertical movement
- Core Technologies
- Servo-driven Variable PitchSynchronized HeatingHigh-speed ClampingContinuous Preform LoadingAir Recovery System
Automation & Control
Control Capabilities
- Large touch screen graphics interface
- Parameter storage for up to 30 data sets
- Self-diagnostics
- Remote control support
- PID heating zone adjustment
Bottle Compatibility
Supported Bottle Types
Water BottlesCSDHot-fill PETPharmaceuticalDetergentJars
Sample Production Specifications
| Type | Capacity | Weight |
|---|---|---|
| Water Bottle | 500ml | 18g |
| Jar | 1000ml | 45g |
| Detergent | 750ml | 28g |
| Pharmaceutical | 120ml | 12g |
| Hot-fill | 2000ml | 45g |
