Technical Specifications
Product Overview
Efficient Stair Climbing Solution

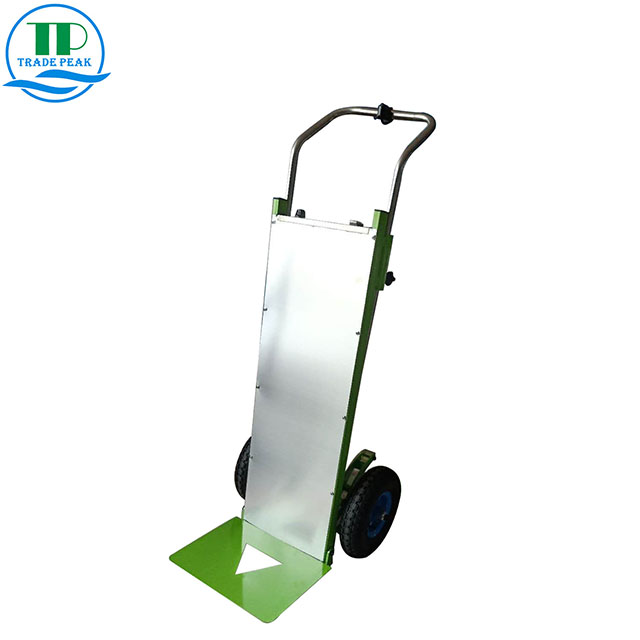

This electric stair climbing trolley is designed to significantly reduce physical strain during the transportation of heavy goods. Equipped with a maintenance-free permanent magnetism brushless motor, it offers reliable performance for delivery services, warehouses, and construction sites. The unit features an adjustable frame and a robust battery system, ensuring efficient operation on stairs and inclines.
- Model
- QTP200C
Performance
Load Capacity
200 kg
Load Capacity
- Climbing Speed
- 40 stairs/min
Power System
Motor Specifications
- 500W Rated Power
- 800RPM Speed
- Permanent Magnetism (PM) Brushless Motor
- Maintenance-free
- Battery
- 48V, 12Ah

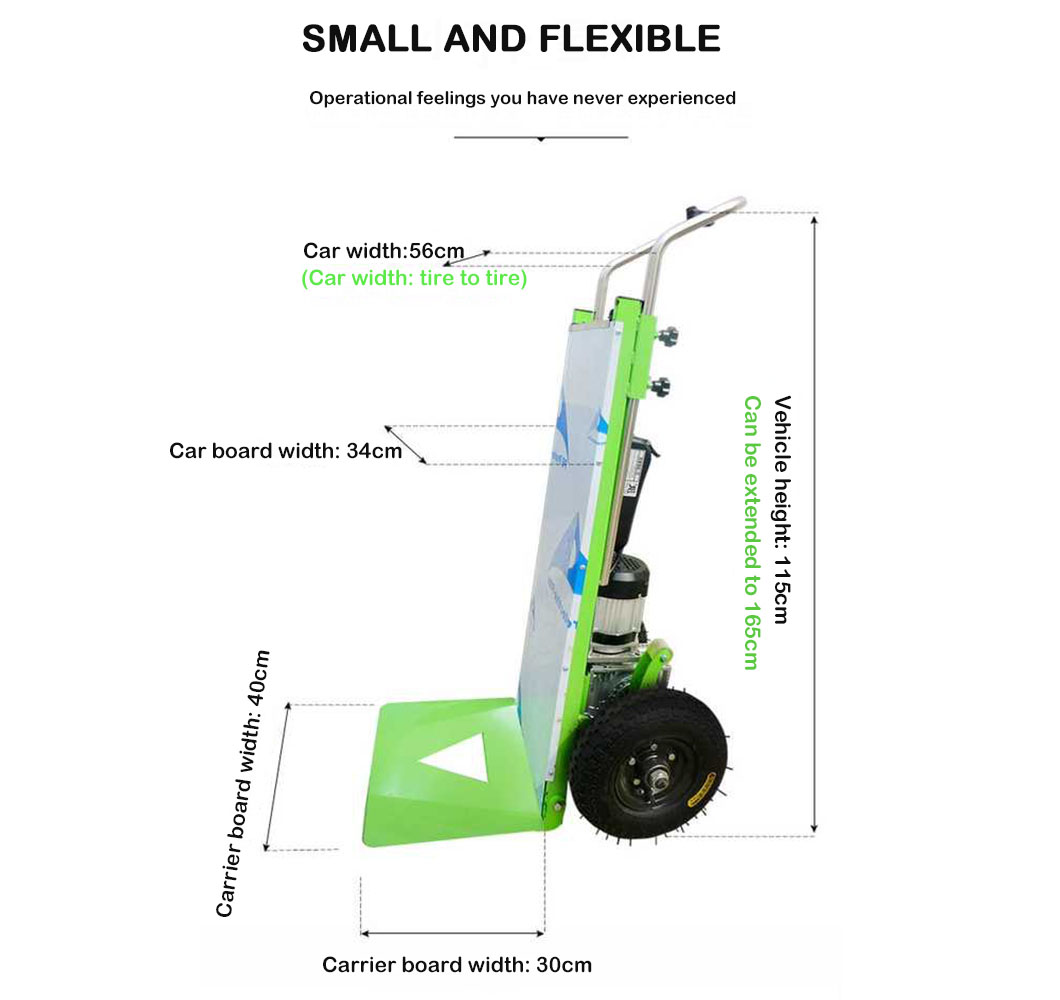

Physical Dimensions
Dimensions
| Measurement | Value |
|---|---|
| Overall Size | 165 x 40 x 60 cm |
| Vehicle Height | 115 cm (extendable to 165 cm) |
| Car Width (Tire to Tire) | 56 cm |
| Carrier Board Dimensions | 40 x 30 cm |
- Unit Weight
- 39 kg
- Wheel Type
- 3.50-5 Air
Features
Key Features
Stair ClimbingEasy OperationExternal Electric Plug Charging
