Technical Specifications
Overview
Efficient Urban Mobility
The CH02 BASIC is a high-performance electric scooter engineered for reliable urban commuting. It features a robust aluminum alloy frame and a powerful 350W motor, balanced with a high-capacity battery for extended city travel. Designed for safety and portability, it includes a dual braking system and a convenient folding mechanism for easy storage.
Performance
Performance Highlights
25 km/h
Max Speed
30 km
Max Range
350 W
Motor Power
- Climbing Ability
- 7 degree
Battery & Charging
- Battery Capacity
- 36V 7.8Ah
- Charging Duration
- 4h - 4.5h
Build & Design
- Frame Material
- Aluminum Alloy
- Tires
- 10-inch Pneumatic Tires (x2)
- Max Loading
- 100 kg
- Body Weight
- 16.3 kg
Safety & Control
Braking System
- Front: Electromagnetic brake
- Rear: Drum brake
Waterproof Rating
IP65
- Control Panel
- Integrated LED Display
- Startup Mode
- Non-zero startup
Dimensions
Product Dimensions
| Status | Dimensions (LxWxH) |
|---|---|

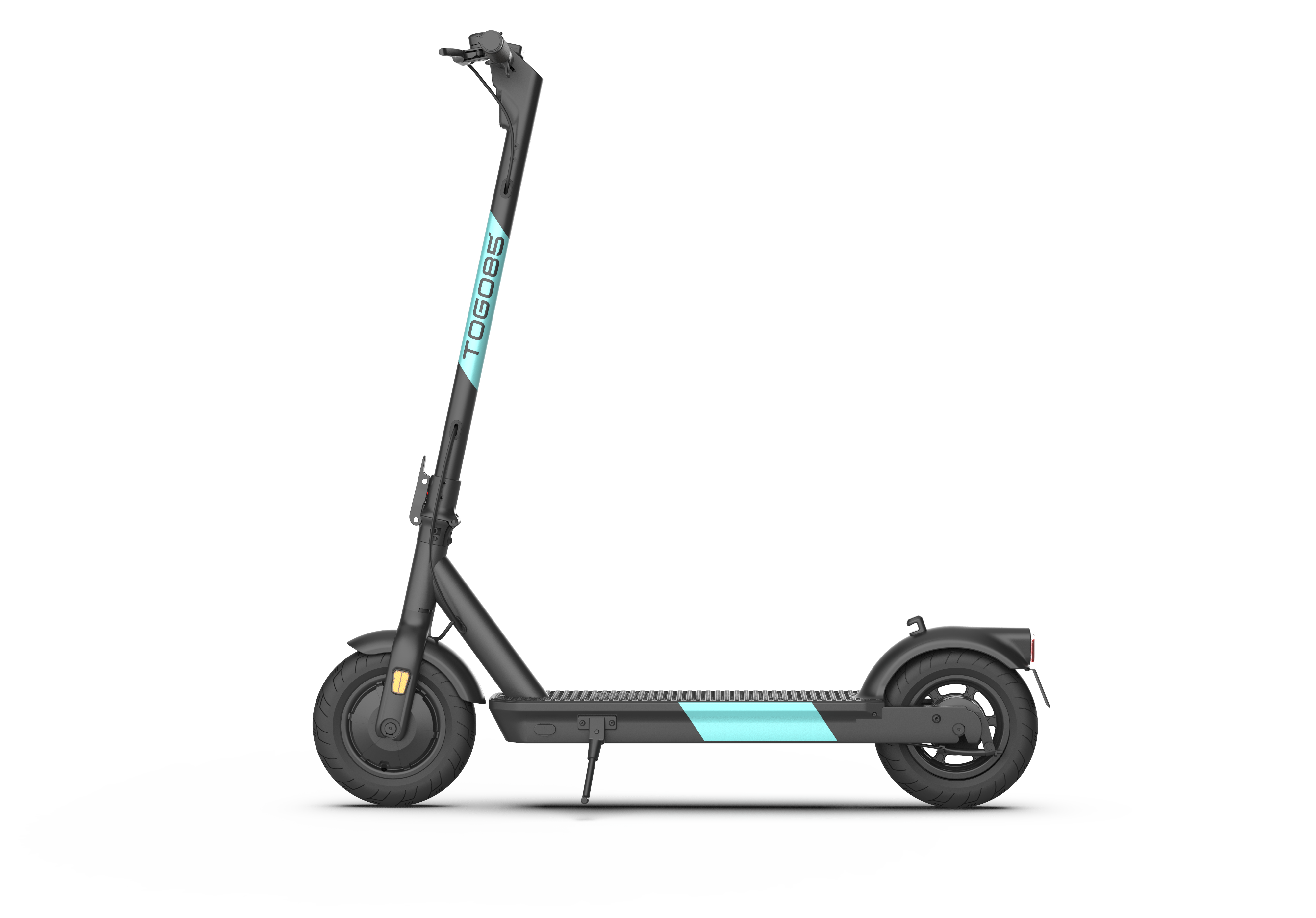

| Unfolded | 1150mm x 500mm x 1200mm |

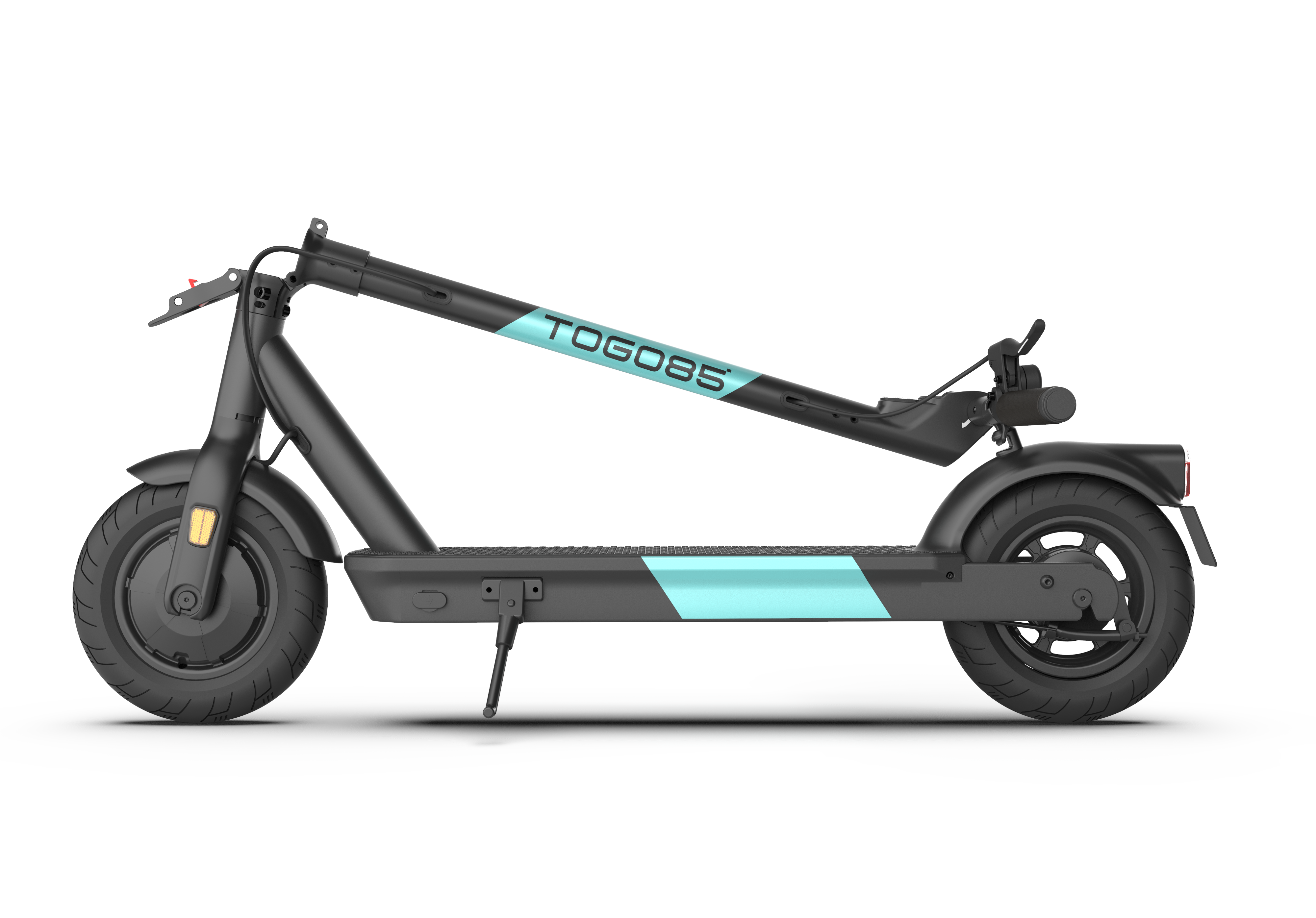

| Folded | 1150mm x 500mm x 500mm |
