Technical Specifications
Overview
Professional Lifting Solution

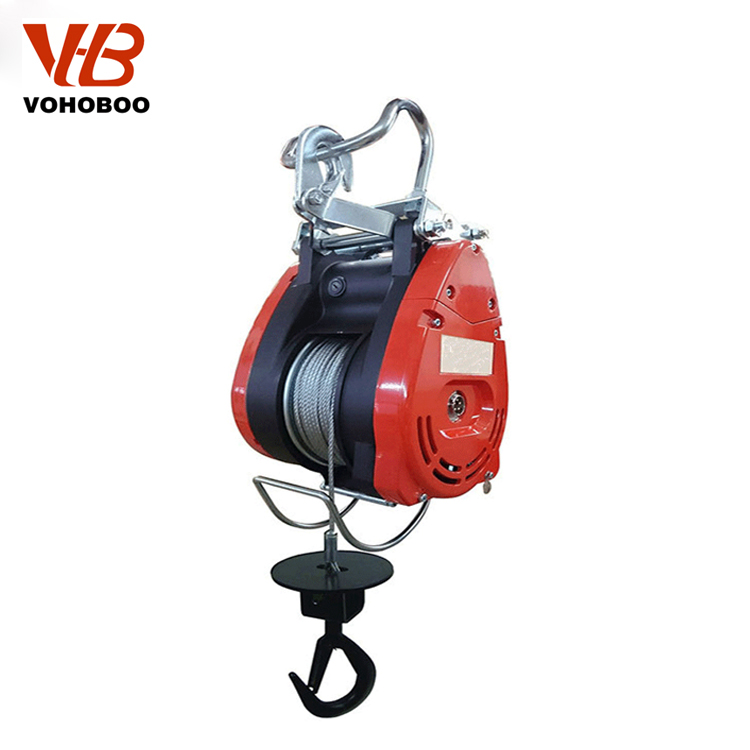

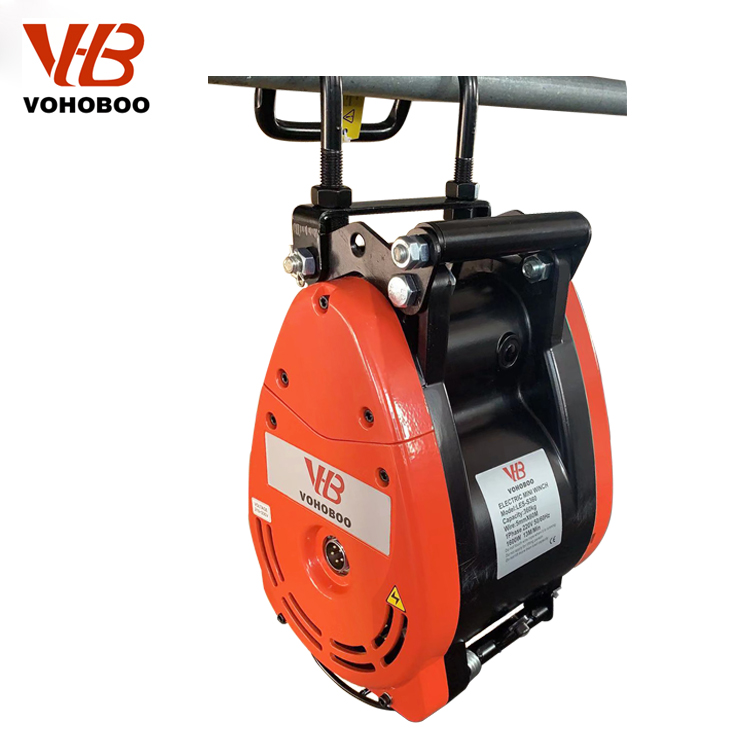

This electric mini winch is a versatile tool engineered for efficiency in construction, factory hoisting, and civil installation projects. Featuring a compact, lightweight design with a powerful motor, it provides reliable lifting and towing performance. Its dual-brake system and automatic safety stops ensure high operational security, while the quick-connector control system simplifies maintenance and setup.
Performance

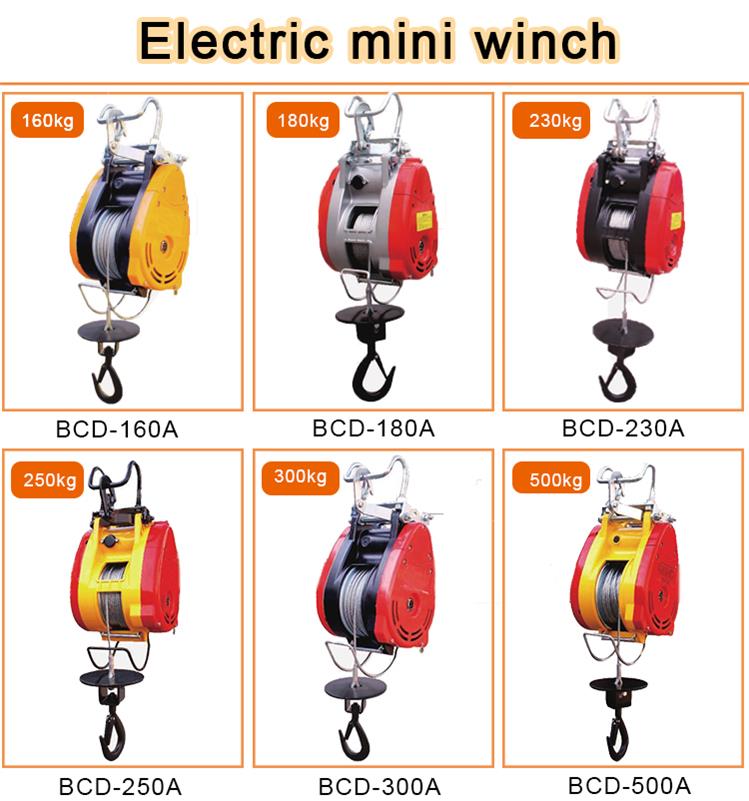

Available Models & Capacity
| Model | Capacity |
|---|---|
| BCD-160A | 160 |
| BCD-180A | 180 |
| BCD-230A | 230 |
| BCD-250A | 250 |
| BCD-300A | 300 |
| BCD-500A | 500 |
Technical Specifications
- Motor System
- Industrial-grade series-excited carbon brush motor
- Input Voltage
- 110V220V
- Motor Heat Resistance
- 200 °C
Safety & Control
Brake System
- Mechanical pawl gear brake
- Controller short-circuit resistance brake
- Oil-immersed copper disc brake
Safety Features
Upper limit auto-stopReverse motion auto-stop
Construction
Safety Factor
3 x
Wire Rope Safety Factor
3 x
Gear Strength Factor
- Build Quality
- Aluminum alloy die-cast motor body and gearbox with automotive-grade powder coating
