Technical Specifications
Overview

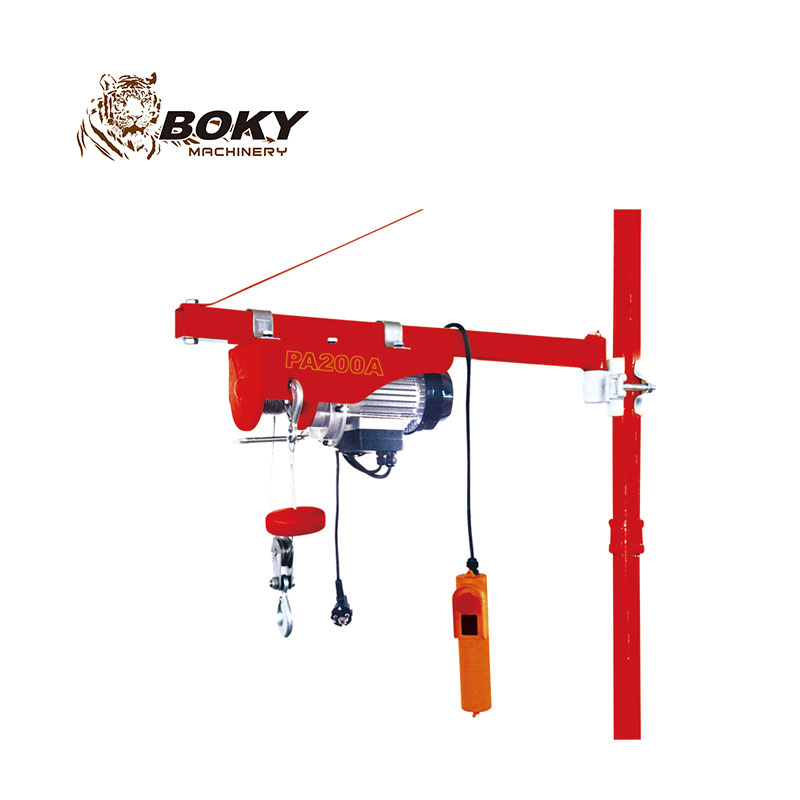

Professional Electric Lifting Hoist
This electric lifting hoist is engineered for efficient and safe material handling in workshops, garages, and construction environments. Featuring a robust motor and durable construction, it provides reliable performance for a variety of heavy-duty tasks. The unit is equipped with essential safety features including an emergency stop switch, position limit switch, and an anti-heat device to ensure secure operation during every lift.
Key Features
Protection Rating
IP54
- Safety Systems
- Emergency Stop SwitchPosition Limit SwitchAnti-heat DeviceSafety Hook
- Operation
- Remote control included
Performance Metrics
Performance Highlights
1,200 kg
Max Capacity
1,800 W
Max Power
12 m
Max Lifting Height
Technical Data
Model Specifications
| Model | Voltage/Power | Weight Capacity (Single/Double) | Lifting Speed |
|---|---|---|---|
| PA200A | 230V/480W | 100/200kg | 10/5 m/min |
| PA400A | 230V/950W | 200/400kg | 10/5 m/min |
| PA600A | 230V/1200W | 300/600kg | 10/5 m/min |
| PA800A | 230V/1300W | 400/800kg | 8/4 m/min |
| PA1200A | 230V/1800W | 600/1200kg | 8/4 m/min |
