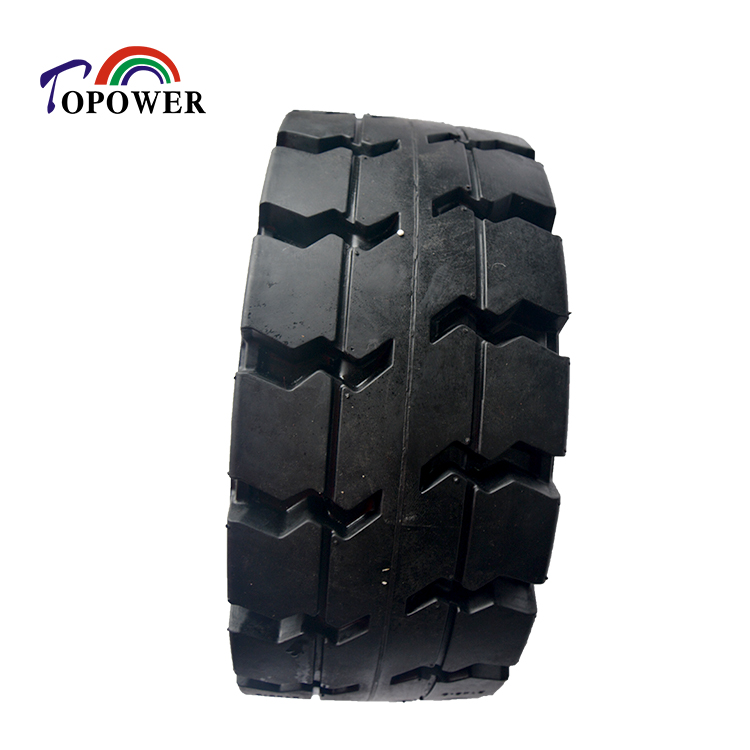

Electric Forklift Quick-Fit Solid Tire
This electric forklift tire features a quick-fit design for easy installation. It is made with natural rubber and high-tech adhesives to ensure a firm fit between the rubber and steel ring.
Technical Specifications
Overview
High-Performance Quick-Fit Solid Tire
Engineered for demanding industrial environments, this solid tire features a specialized quick-fit design that significantly reduces installation time and equipment downtime. Constructed from high-quality natural rubber with advanced adhesives, it ensures a secure, durable bond between the rubber and the steel ring. The tire is designed for quiet operation, low rolling resistance, and exceptional lateral guidance, making it an ideal choice for electric forklifts and heavy-duty material handling applications.
- Key Features
- Quick-Fit DesignNo-Marking CompoundQuiet RunningHigh MileageLow Rolling Resistance
Technical Specifications
Performance at 10km/h
4,449 kg
Max Load
587 mm
Overall Diameter
230 mm
Width

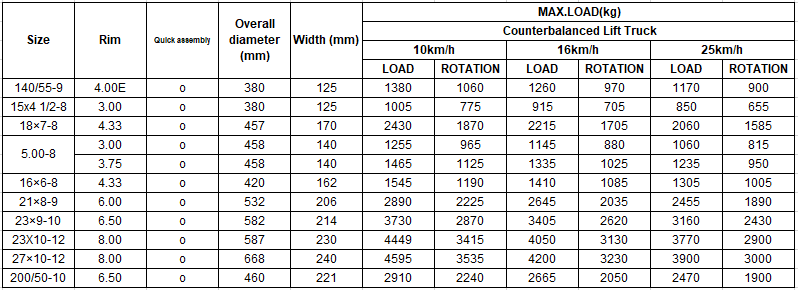

Available Specifications
| Size | Rim | Diameter (mm) | Width (mm) | Max Load (kg) |
|---|---|---|---|---|
| 140/55-9 | 4.00E | 380 | 125 | 1,380 |
| 15x4 1/2-8 | 3.00 | 380 | 125 | 1,005 |
| 18x7-8 | 4.33 | 457 | 170 | 2,430 |
| 21x8-9 | 6.00 | 532 | 206 | 2,890 |
| 23x9-10 | 6.50 | 582 | 214 | 3,730 |
| 23x10-12 | 8.00 | 587 | 230 | 4,449 |
Features & Benefits
Suitable Applications
Electric ForkliftsWarehousingManufacturing PlantsMaterial Handling
Technical Advantages
- Advanced and deep tread design (TP312 pattern)
- Clip/Holo design for efficient quick-fit installation
- High-tech adhesive bonding for superior structural integrity
- Natural rubber compound minimizes floor marking
