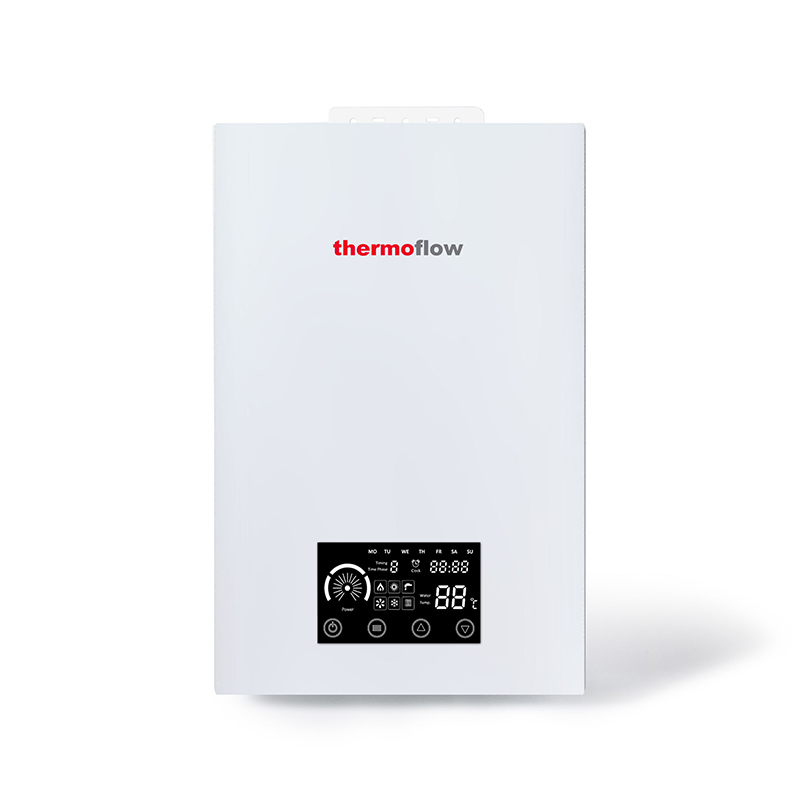

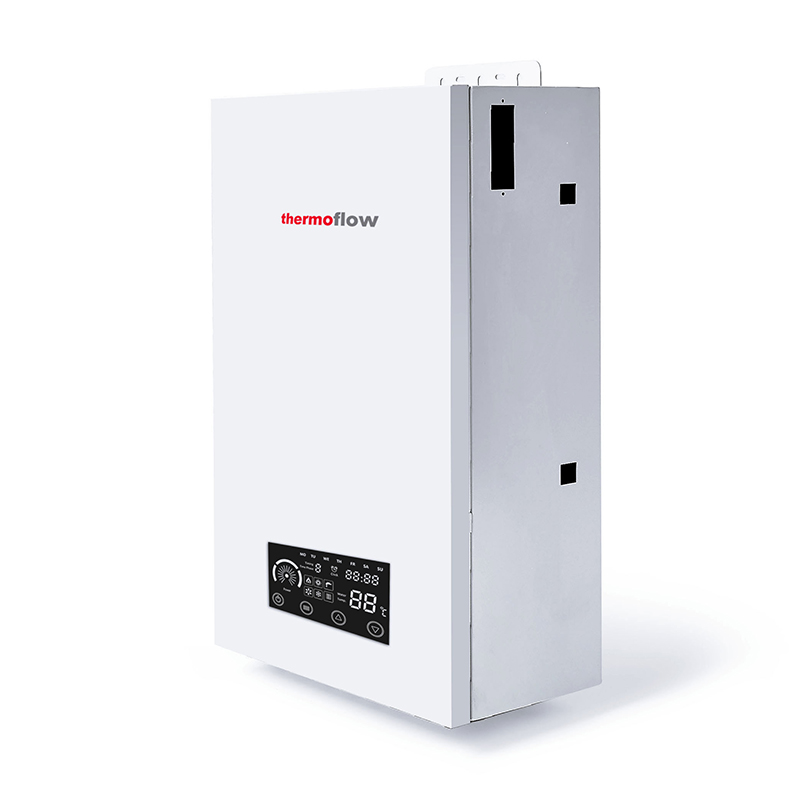

Electric Combi Boiler for Heating and Hot Water
This electric combi boiler provides both central heating and hot water. It features two independent water heating systems for powering central heating and domestic hot water.
Technical Specifications
Product Overview
High-Efficiency Electric Combi Boiler
This wall-mounted electric combi boiler provides a comprehensive solution for both residential heating and domestic hot water supply. Engineered for reliability, it features a rigid casing for protection, built-in pump, and advanced control systems including anti-freeze and heat preservation modes. With a compact design and intelligent scheduling, it offers an efficient alternative to traditional gas systems for modern installations.
Key Features
- Core Functionalities
- Dual Heating SystemAnti-Freeze ModeHeat Preservation ModeIntegrated PumpSchedule Selection SystemDigital Control Panel
Technical Specifications
Performance Metrics
99 %
Efficiency
5 L
Expansion Tank Capacity
21 kg
Net Weight
Operating Temperatures
- Radiator Mode: 35-80°C (Default: 65°C)
- Floor Heating Mode: 35-55°C (Default: 50°C)
- Domestic Hot Water (DHW): 35-60°C (Default: 38°C)
- Anti-freeze Start: <7°C
- Anti-freeze Stop: ≥10°C
- Dimensions
- 602mm x 380mm x 195mm
- Connections
- G3/4" (Radiator/Floor Heating), G1/2" (DHW)
Model Comparison
Model Specifications
| Model | Power (kW) | Voltage |
|---|---|---|
| Combi Solo 6 | 6 | 230V/400V |
| Combi Solo 9 | 9 | 230V/400V |
| Combi Solo 12 | 12 | 230V/400V |
| Combi Duo 15 | 15 | 400V |
| Combi Duo 18 | 18 | 400V |
| Combi Duo 21 | 21 | 400V |
| Combi Duo 24 | 24 | 400V |
