Electric Cable Hoist
This electric cable hoist is designed for lifting applications in workshops and construction sites. It features overload protection and a limit switch to prevent over-winding.
Technical Specifications
Product Overview

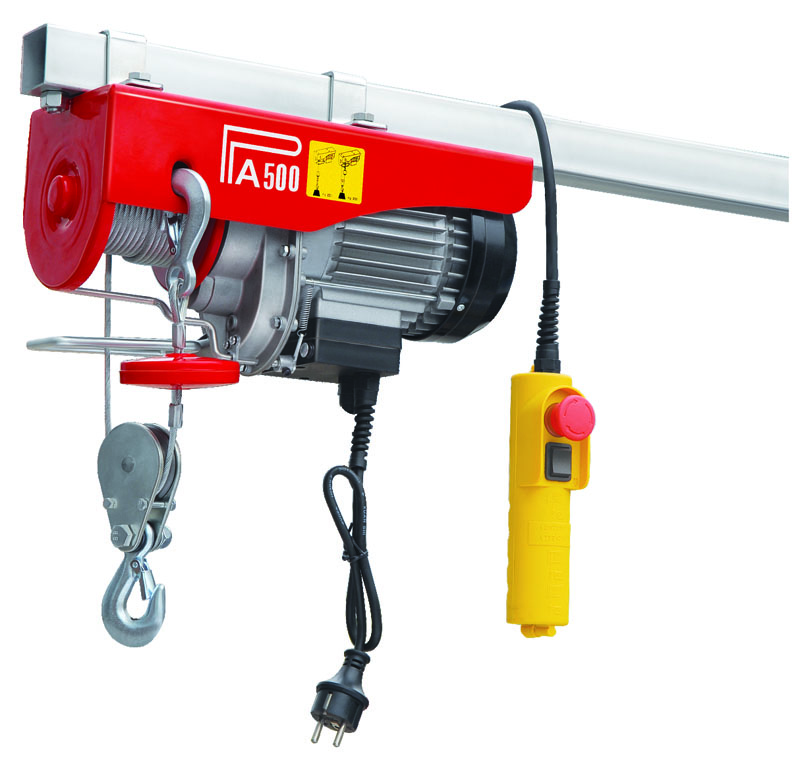

Professional Electric Cable Hoist

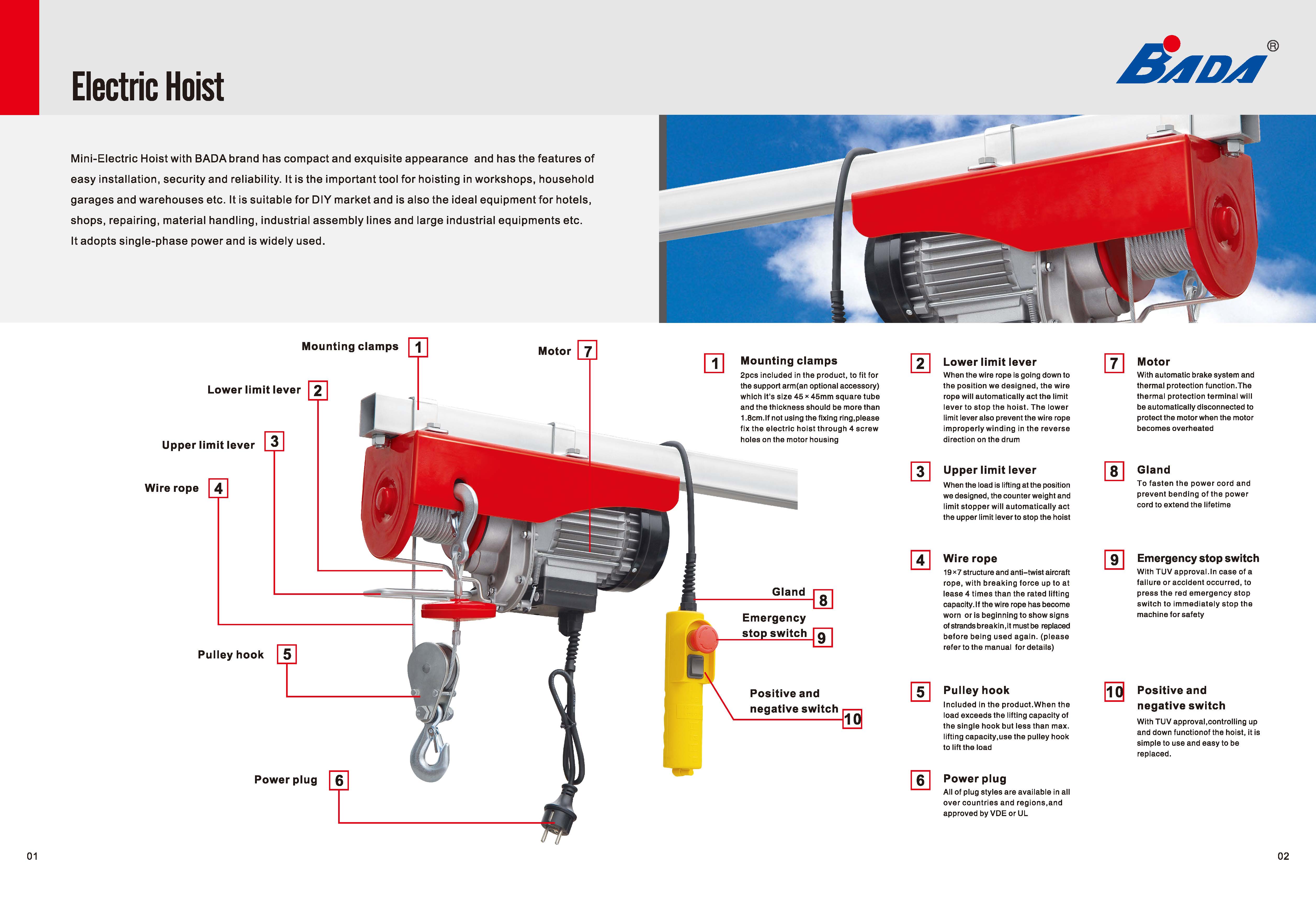

This high-performance electric cable hoist is engineered for reliability and safety in demanding lifting environments such as workshops, garages, and industrial assembly lines. Featuring a 100% copper wire motor with thermal protection and a high-grade braking system, it ensures consistent operation and long service life. The unit is built with safety as a priority, incorporating upper and lower limit switches, an emergency stop function, and durable anti-twist aircraft wire rope.
Technical Performance
Key Performance Metrics
500 kg
Max Lifting Capacity
12 m
Lifting Height
900 W
Input Power
8 m/min
Lifting Speed
Lifting Specifications
| Configuration | Capacity | Height | Speed |
|---|---|---|---|
| Single Hook | 250 kg | 12 m | 8 m/min |
| Pulley Hook | 500 kg | 6 m | 4 m/min |
Motor & Electrical
Electrical Requirements
- Rated Voltage: 220/230V
- Frequency: 50Hz
- Power: 900W
- Overheat protection included
Safety & Compliance
Safety Features
IP54 RatedUpper/Lower Limit FunctionEmergency Stop SwitchThermal ProtectionAnti-Twist Wire Rope
- Standards & Approvals
- CEGSEMCRoHS 2.0ETLCETLEN-14492-2UL1340
