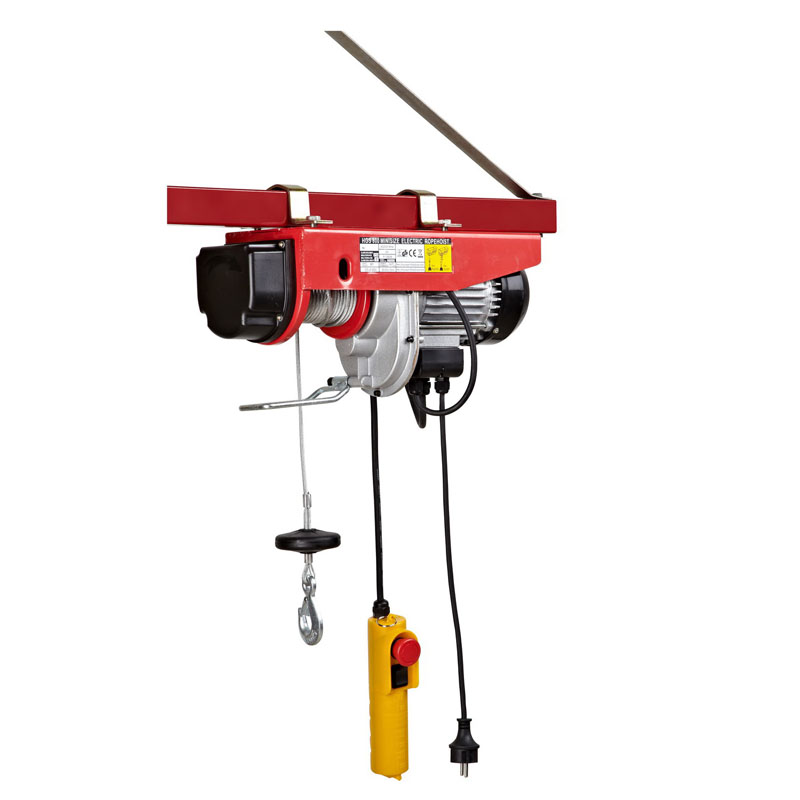

Electric Cable Hoist
This electric cable hoist is suitable for lifting applications in factories, workshops, and warehouses. It can also be used in restaurants, stores, or homes for decoration and conveyance.
Technical Specifications
Product Overview
High-Performance Electric Cable Hoist
This 220V electric hoist is engineered for efficient lifting and lowering of heavy loads with simple push-button operation. Designed for safety and reliability, it features an automatic braking system and double limit protection. Its robust construction makes it an ideal solution for workshops, garages, and construction sites requiring dependable vertical transport.
Performance Metrics
Rated Capacity
400 kg
Single Line
800 kg
Double Line
Lifting Speed
8 m/min
Single Line
4 m/min
Double Line
Lifting Height
12 m
Single Line
6 m
Double Line
Technical Specifications
- Rated Voltage
- 220V, 50Hz
- Power
- 1350 W
- Duty Cycle
- S3 20% 10min
Cable Details
Cable Specifications
| Attribute | Value |
|---|---|
| Cable Length | 12.3m |
| Cable Diameter | 5.0mm |
| Resister Cable Capacity | ≥2000kg |
Certifications
- Compliance Standards
- GSCERoHS
Features
Safety Features
- Automatic brake feature
- Double limit protection
- Anti-torsion cable
