Electric Bike Conversion Kit with Mid-Drive Motor
This electric bike conversion kit features a mid-drive motor for converting standard bicycles into electric bikes. The kit includes essential components such as the motor, display, throttle, speed sensor, and chain wheel.
Technical Specifications
Overview
High-Performance Mid-Drive Conversion Kit
This professional-grade electric bike conversion kit is designed to transform standard bicycles into high-efficiency electric vehicles. Featuring a robust mid-drive motor configuration, it ensures optimal weight distribution and superior power transfer for a natural riding experience. The comprehensive set includes all essential components, from the motor and display to the throttle and sensors, making it an ideal solution for upgrading various bike frames.
Performance
Key Performance Metrics
750 W
Rated Power
80 N.m
Max Torque
35 km/h
Max Speed
Technical Specifications
IP Rating
IP 65
- Motor Type
- High-speed Brush + Gear Decelerating Motor
- Operating Temperature
- -20 to 45°C
- Noise Level
- 55 dB
Compatibility
Compatible Wheel Sizes
- 16"
- 18"
- 20"
- 22"
- 24"
- 26"
- 28"
- 700C
- Supported Bottom Brackets
- 68mm100mm120mm
Included Components

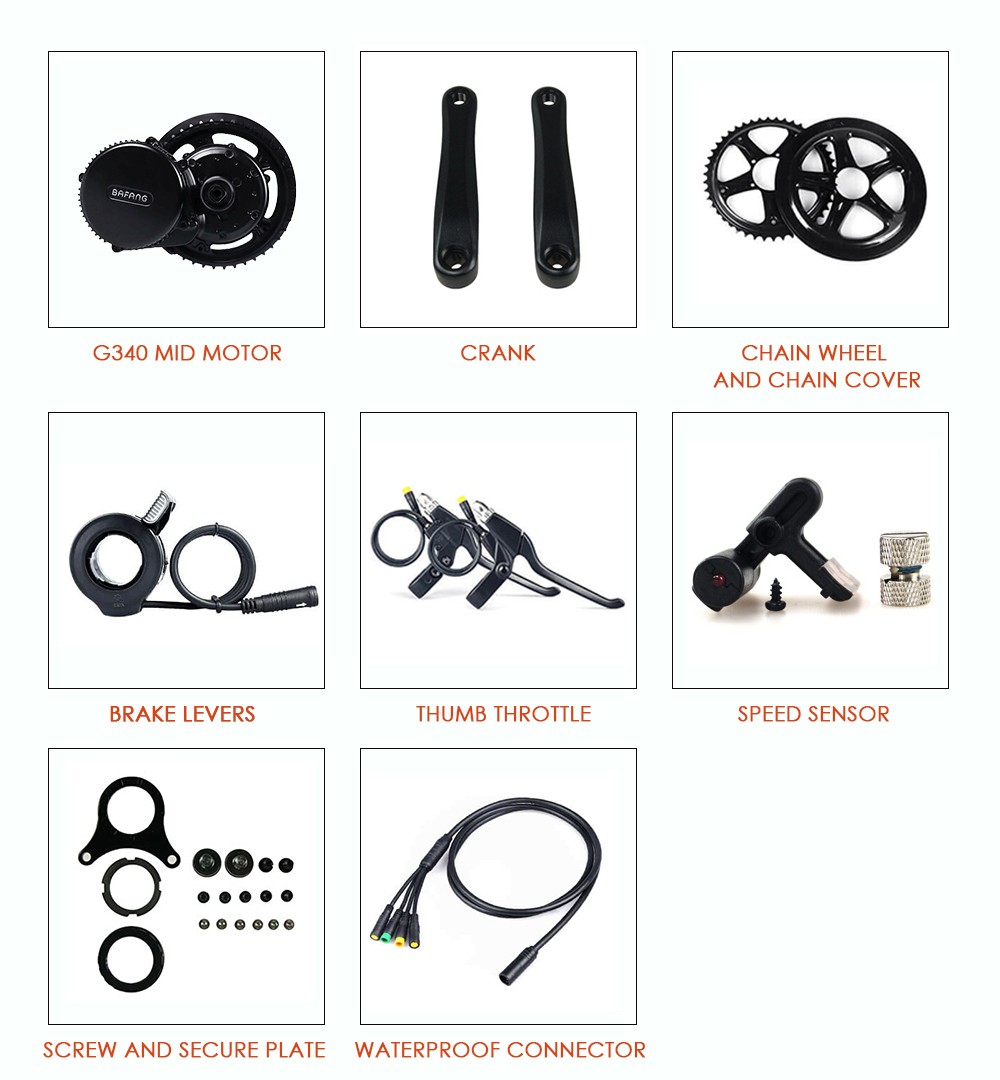

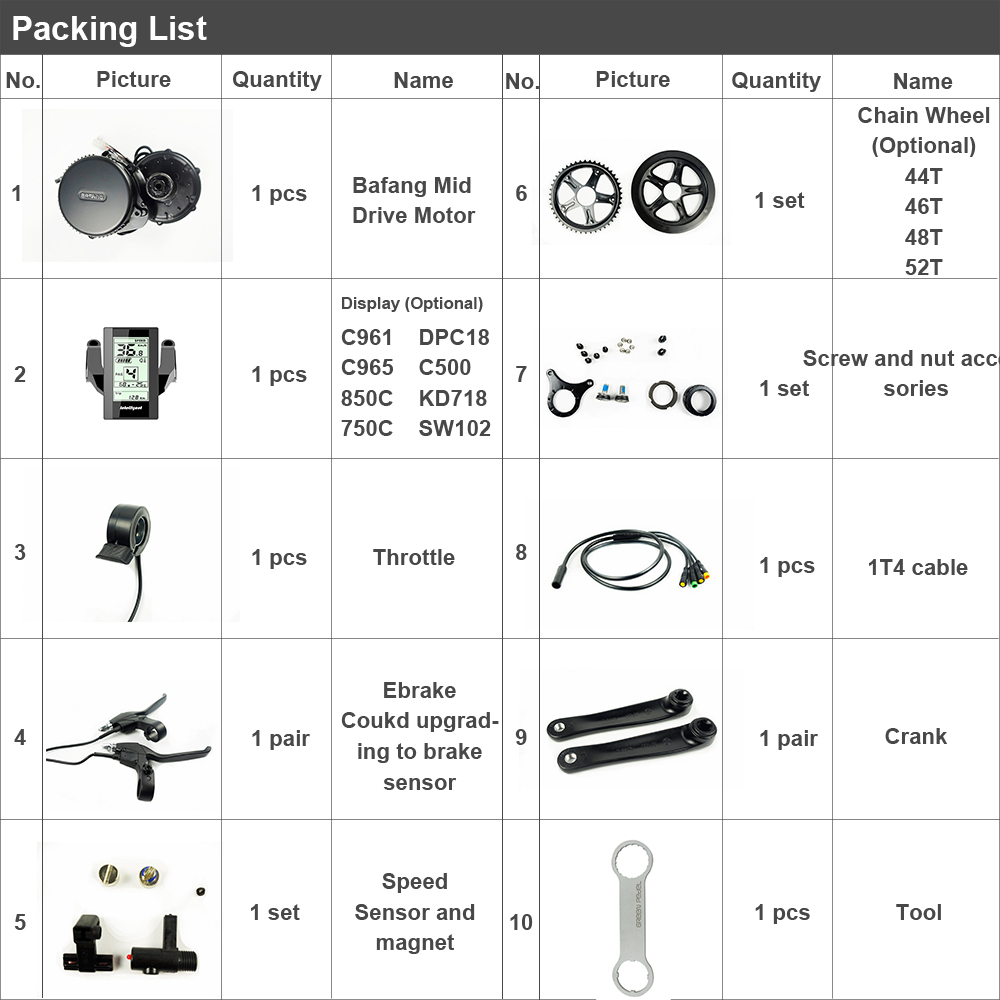

Standard Kit Components
- Mid-drive motor
- Display unit
- Thumb throttle
- Speed sensor
- Chain wheel with cover
- Crank arms

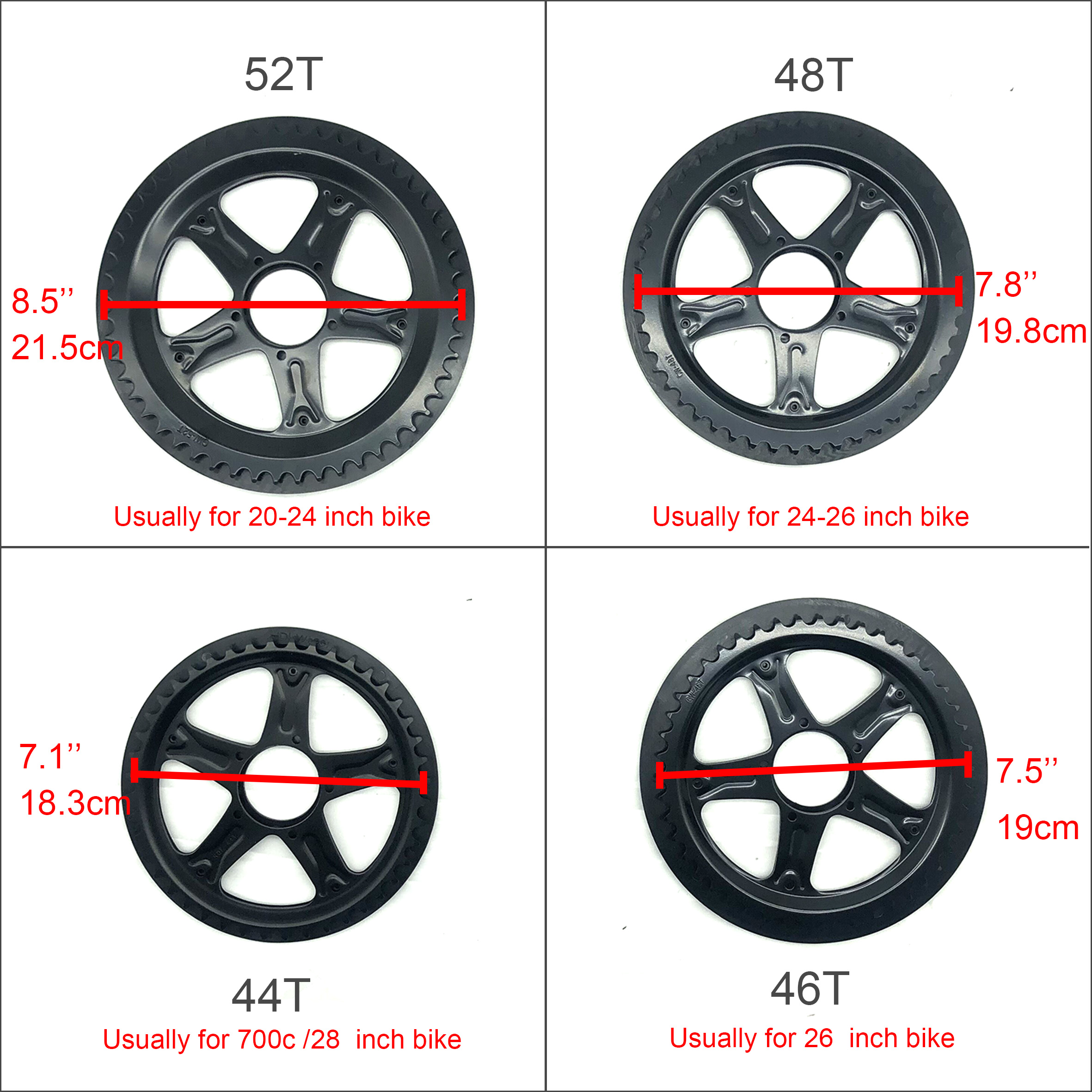

- Available Chainwheel Sizes
- 44T46T48T52T
