Electric Bicycle Conversion Kit with LCD Display
This electric bicycle conversion kit allows users to convert a regular bicycle into an electric bike. It includes a waterproof cable and LCD display.
Technical Specifications
Product Overview
Complete E-Bike Conversion Solution
This comprehensive electric bicycle conversion kit allows for a seamless transition from a standard bike to a high-performance electric vehicle. Featuring a powerful rear-hub motor and a sophisticated LCD display, the kit provides real-time data on speed, battery levels, and assist modes. Designed with waterproof cabling and a versatile controller, it offers a reliable and customizable DIY experience for professional B2B distributors and retailers.
Core Performance
Motor Power Output
250 W
Min Power
1,500 W
Max Power
- System Voltage
- DC 36VDC 48V
Controller Specifications
Controller Details
| Parameter | Value |
|---|---|
| Type | Brushless DC Motor Controller |
| Max Current | 20A |
| Low Voltage Protection | 31.5V ± 0.5V |
| Rated Power Range | 250W - 350W |
Components & Interface

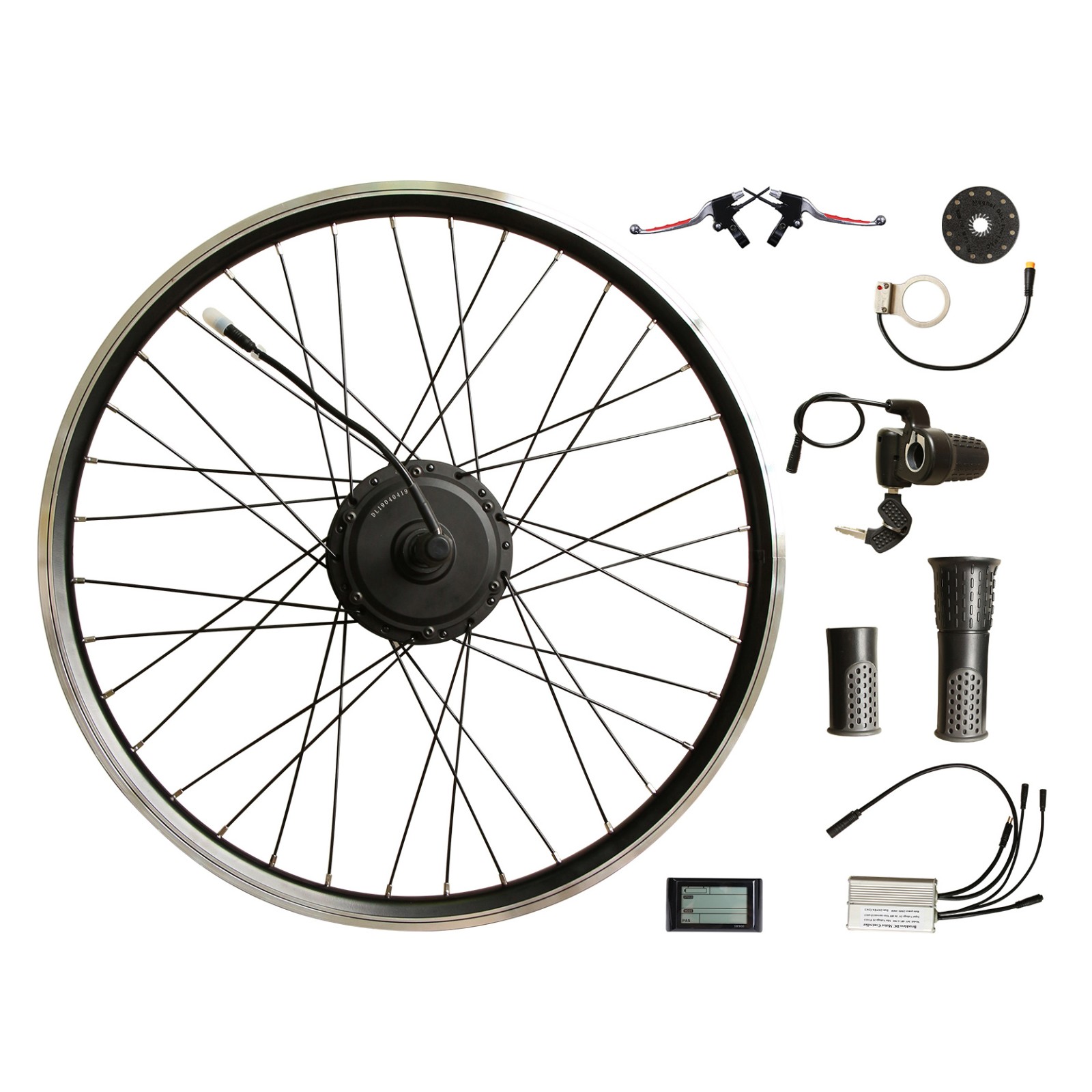

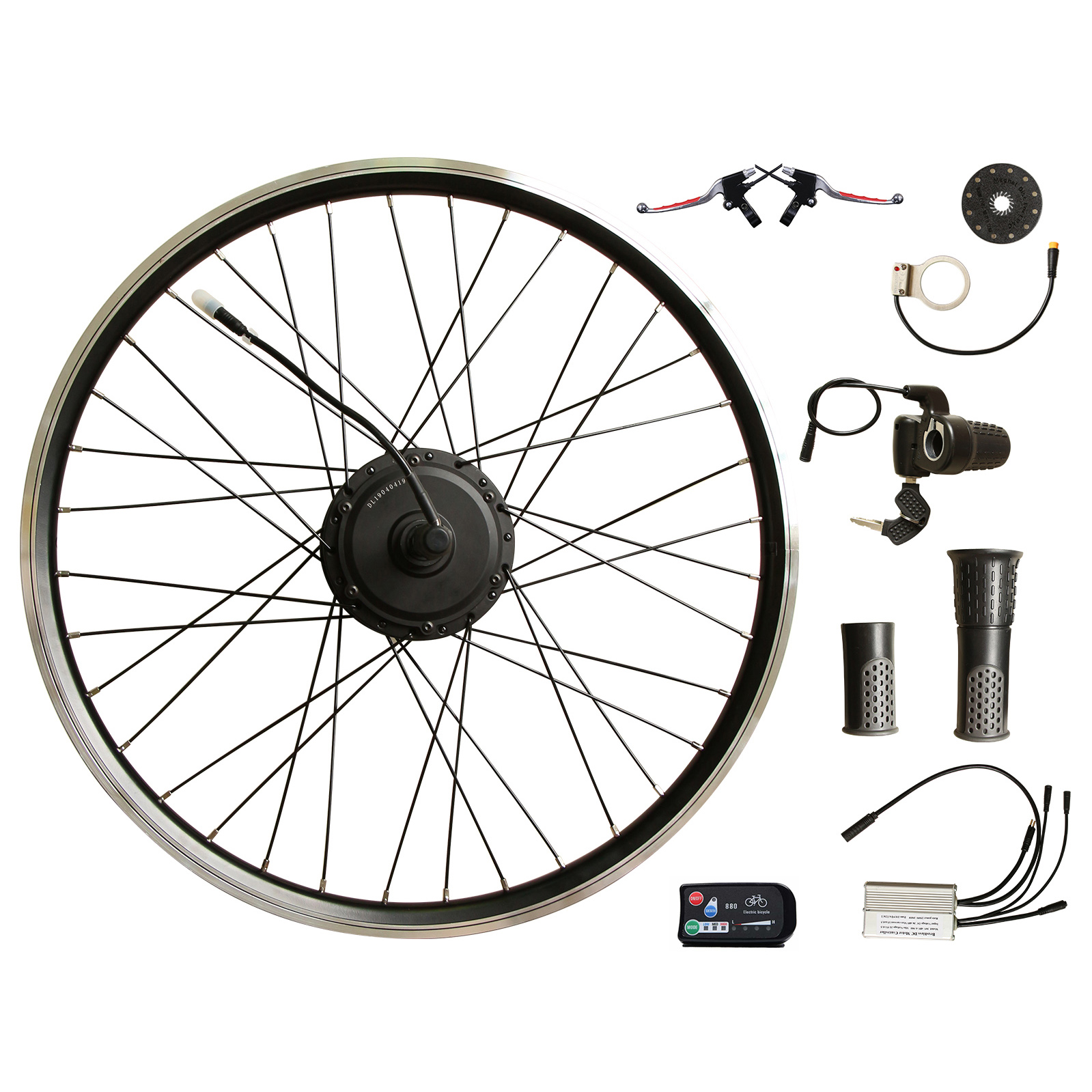

Included Components
- Motor in wheel (Rear)

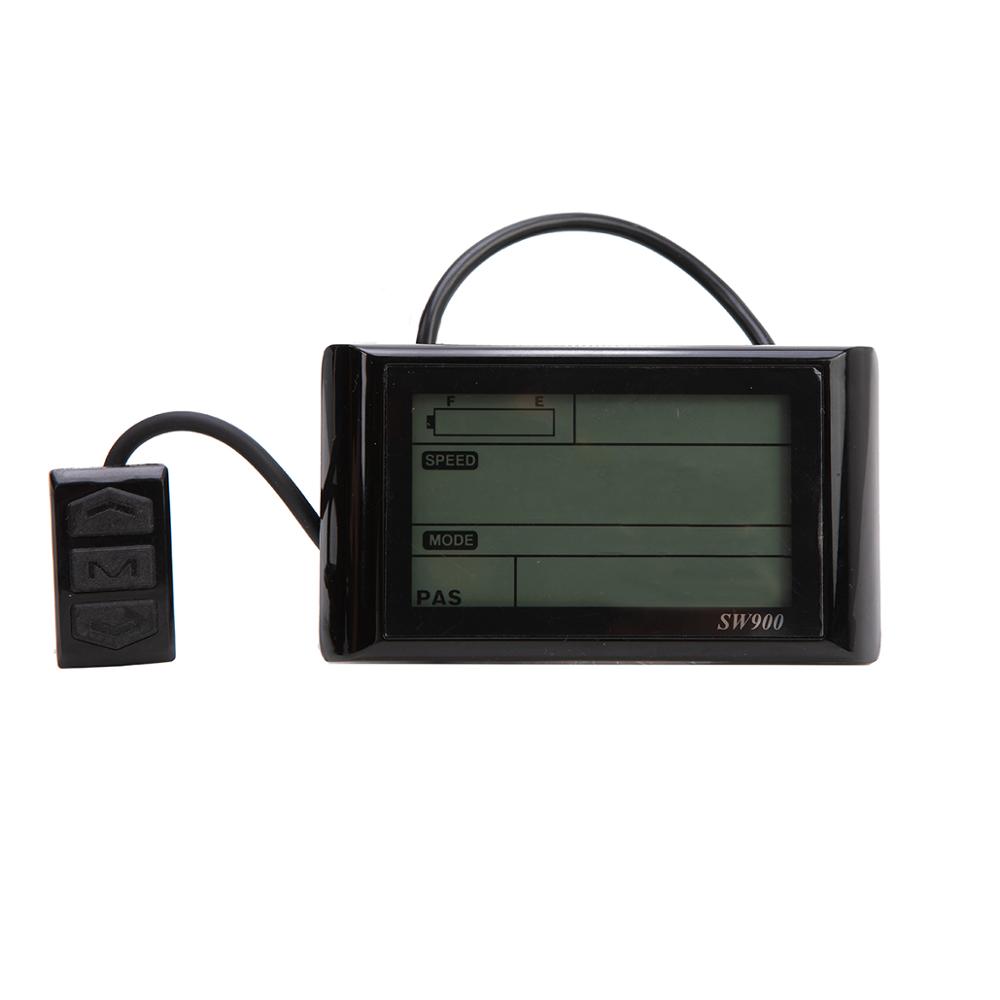

- LCD Display (Speed, Distance, Battery)
- Brushless Controller
- Throttle
- Brake levers with motor cutoff
- Speed Sensor (PAS)
- Waterproof cabling
Customization & Connectivity
Cable Features
WaterproofCustomizable Length
Manufacturing & Service
- Service Options
- OEM SupportedODM SupportedExport Qualified
Logistics
Delivery Timeline
| Order Type | Lead Time |
|---|---|
| Sample Order | 7 Days |
| Mass Production | 35 Days |
- Minimum Order Quantity
- 100 pcs
