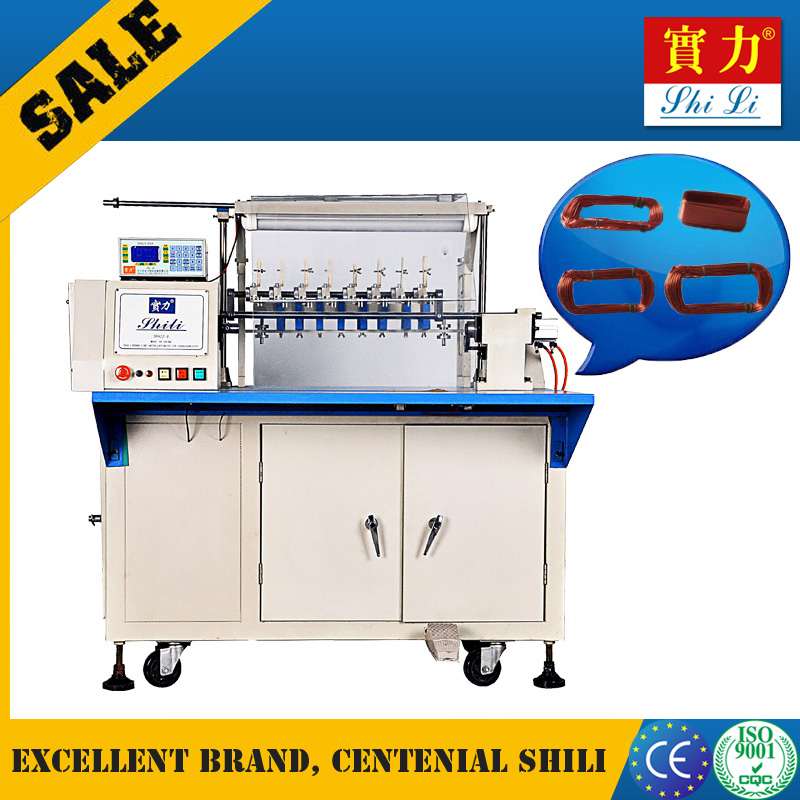

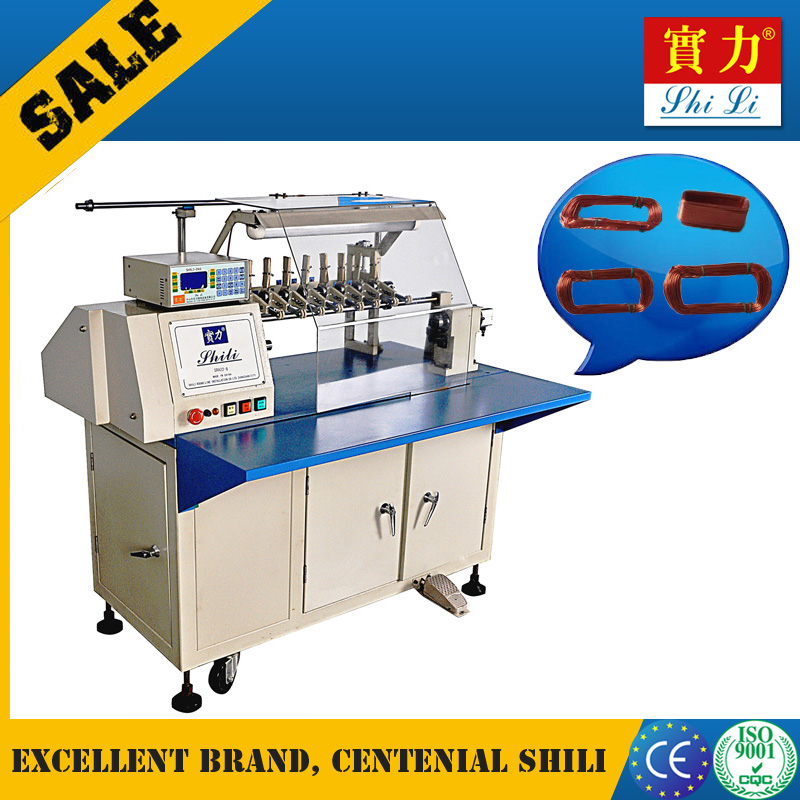

Eight-Spindle Motor Coil Winding Machine
This eight-spindle machine utilizes a 32-bit controller for faster operation and higher reliability. It retains winding data after power failure and features an easy-to-use English/Chinese display.
Technical Specifications
Product Overview
High-Efficiency Eight-Spindle Winding Solution
This advanced eight-spindle motor coil winding machine is engineered for high-reliability industrial production, featuring a 32-bit controller for superior precision. It supports fully automatic multi-layer winding and can process up to 8 wires simultaneously with high speed and consistency. Built with a heavy-duty cast iron body to minimize vibration, it ensures long-term operational stability for industrial, air conditioner, washing machine, and fan motor applications.
Technical Specifications
Maximum Speed
3,500 turn/min
Max Winding Speed
- Spindle Number
- 8
- Wire Size Range
- 0.1-0.6mm
- Machine Dimensions
- 1320 x 900 x 1320mm
- Input Power
- 220V 50HZ/60HZ
Construction & Components
- Premium Components
- Japan BearingsJapan BeltsTaiwan Ball ScrewsTaiwan Transducers
- Build Material
- Thick Cast Iron
Operational Features
Certifications
CEISO 9001CQC
Main Features
- Data retention after power failure
- Automatic wire cutting stop function
- Bilingual display (Chinese/English)
- Dual fixture options: Pneumatic or Manual
