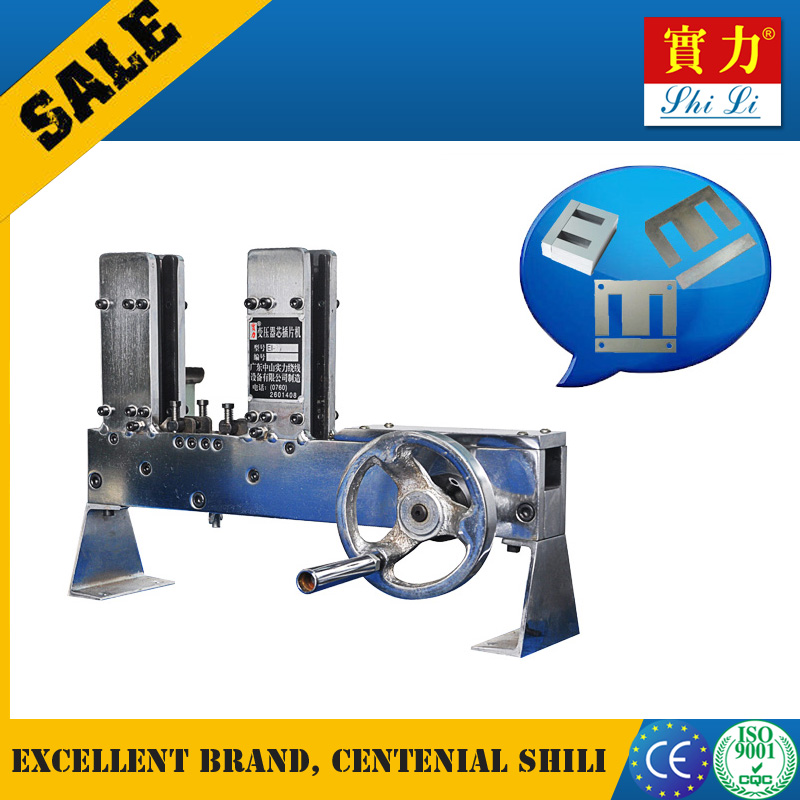

EI Core Insertion Machine
This machine is designed for inserting EI cores into transformers. It features durable construction and imported bearings for stable and reliable operation.
Technical Specifications
Overview
Precision EI Core Insertion
This specialized machinery is designed for the efficient assembly of EI cores into transformers and inductors. Built with high-quality steel and imported bearings, the machine ensures stability, durability, and consistent performance in industrial manufacturing environments. It features a robust mechanical design with a manual hand-operated wheel, allowing for precise control and streamlined lamination placement.
- Certifications
- CEISO 9001CQC
Technical Specifications
Model Specifications
| Model | Lamination Size | Machine Size (mm) | Package Size (mm) | Weight (N/G kg) |
|---|---|---|---|---|
| EI28 | 28 | 410×170×300 | 410×170×300 | 13/19 |
| EI35 | 35 | 440×130×290 | 550×240×330 | 15/21 |
| EI41 | 41 | 440×130×290 | 550×240×330 | 15/21 |
| EI48 | 48 | 480×140×290 | 550×240×330 | 15/21 |
| EI57 | 57 | 540×150×290 | 630×260×380 | 15/22 |
| EI60 | 60 | 650×125×350 | 680×155×380 | 16/23 |
| EI66 | 66 | 560×160×340 | 630×260×380 | 17/25 |
| EI76 | 76 | 600×170×360 | 840×330×440 | 28/38 |
| EI86 | 86 | 700×180×380 | 700×180×380 | N/A |
Construction
Build Quality Features
- High-quality steel construction
- Imported bearings for stability
- Hand-operated wheel for precise control
- Durable metal components for industrial use
