Technical Specifications
Product Overview

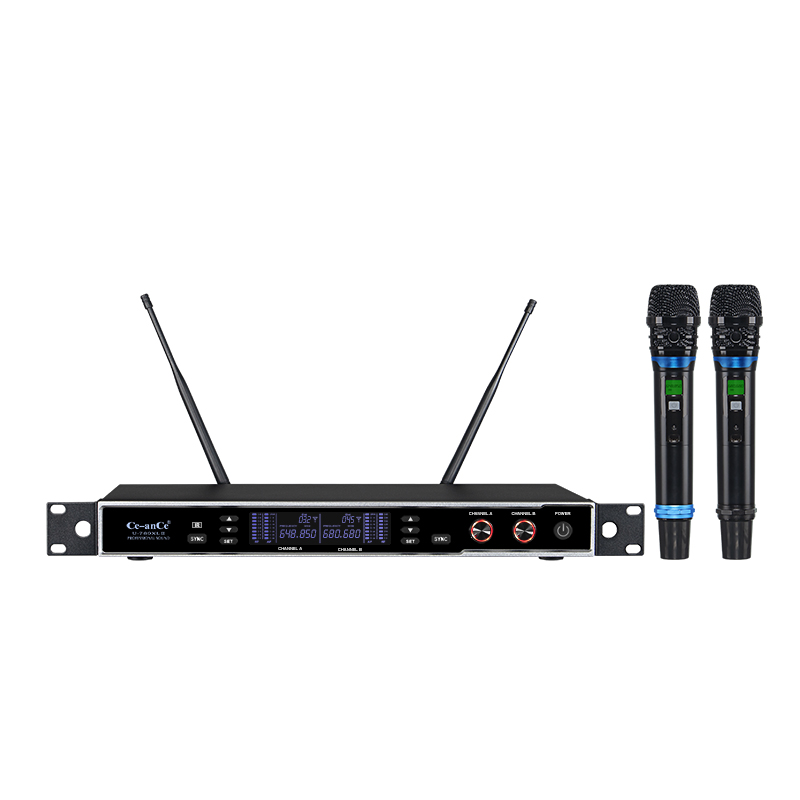

Professional Dual Channel UHF System
This professional-grade UHF wireless microphone system provides high-quality audio transmission with dual-channel operation. Designed for reliability and clear sound reproduction, the system is suitable for live performances, studios, and professional broadcasting environments. It features rack-mountable architecture and a wide operating range, ensuring consistent performance even in challenging audio setups.
Audio Performance
- Frequency Response
- 40Hz-18KHz
- Total Harmonic Distortion
- 0.5 %
- Signal-to-Noise Ratio
- 105 dB
Technical Specifications
Coverage Range
250 m
Effective Range
- Modulation Type
- FM
- Frequency Stability
- 0.005 %
Operational Details
Power Requirements
- Receiver: DC12-15V 450mA
- Microphones: 2 x 1.5V AA Alkaline batteries
- Operating Temperature
- -10 to +50°C

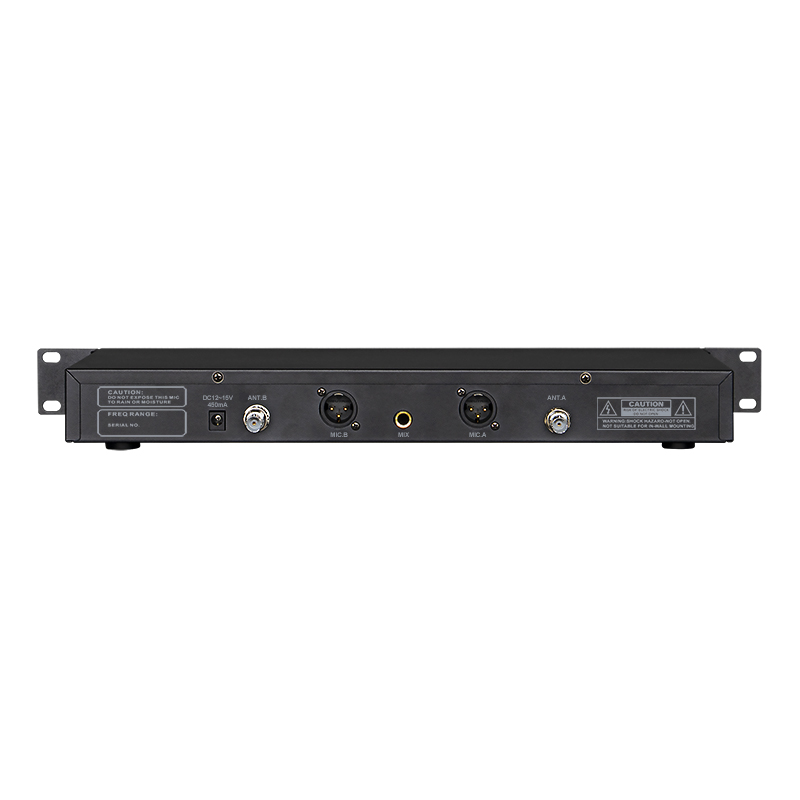

Connectivity
Inputs and Outputs
| Connection Type | Purpose |
|---|---|
| MIC A/B | Independent Input |
| MIX | Mixed Audio Output |
| ANT A/B | Antenna Connectors |
