Technical Specifications
Product Overview

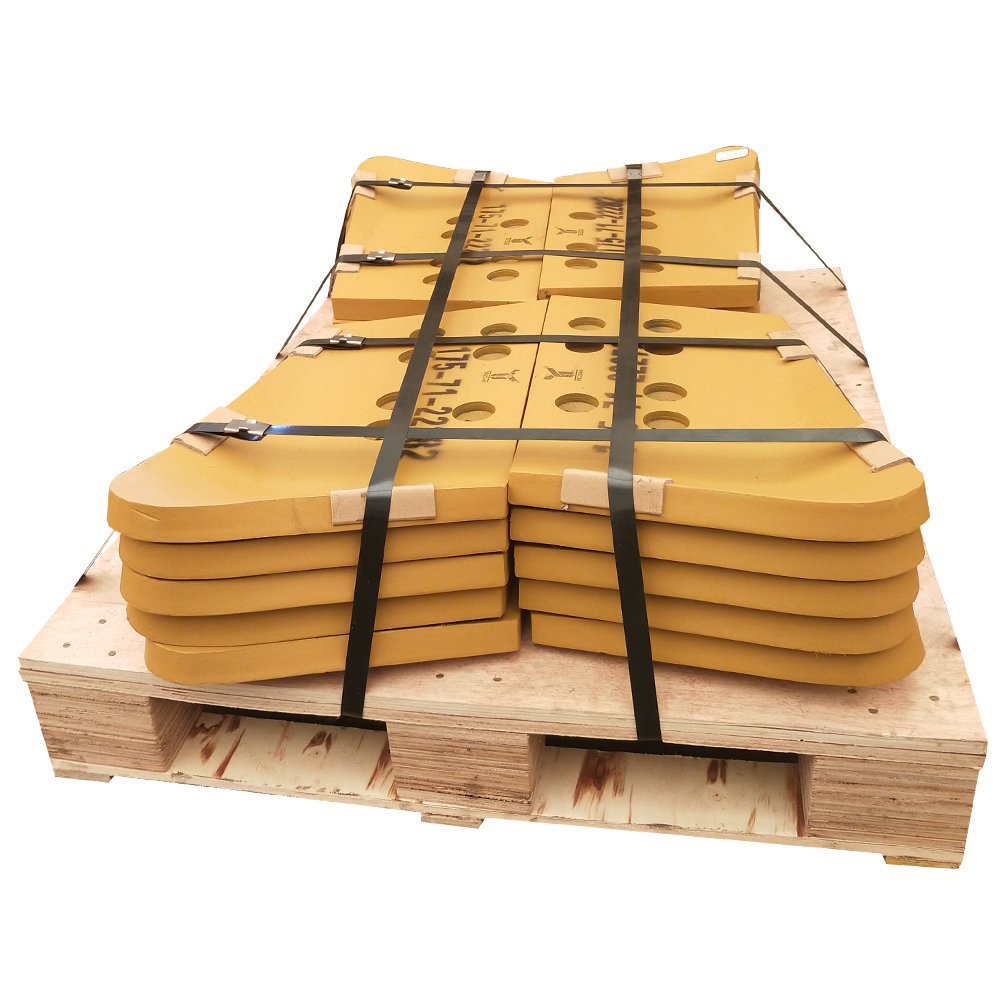

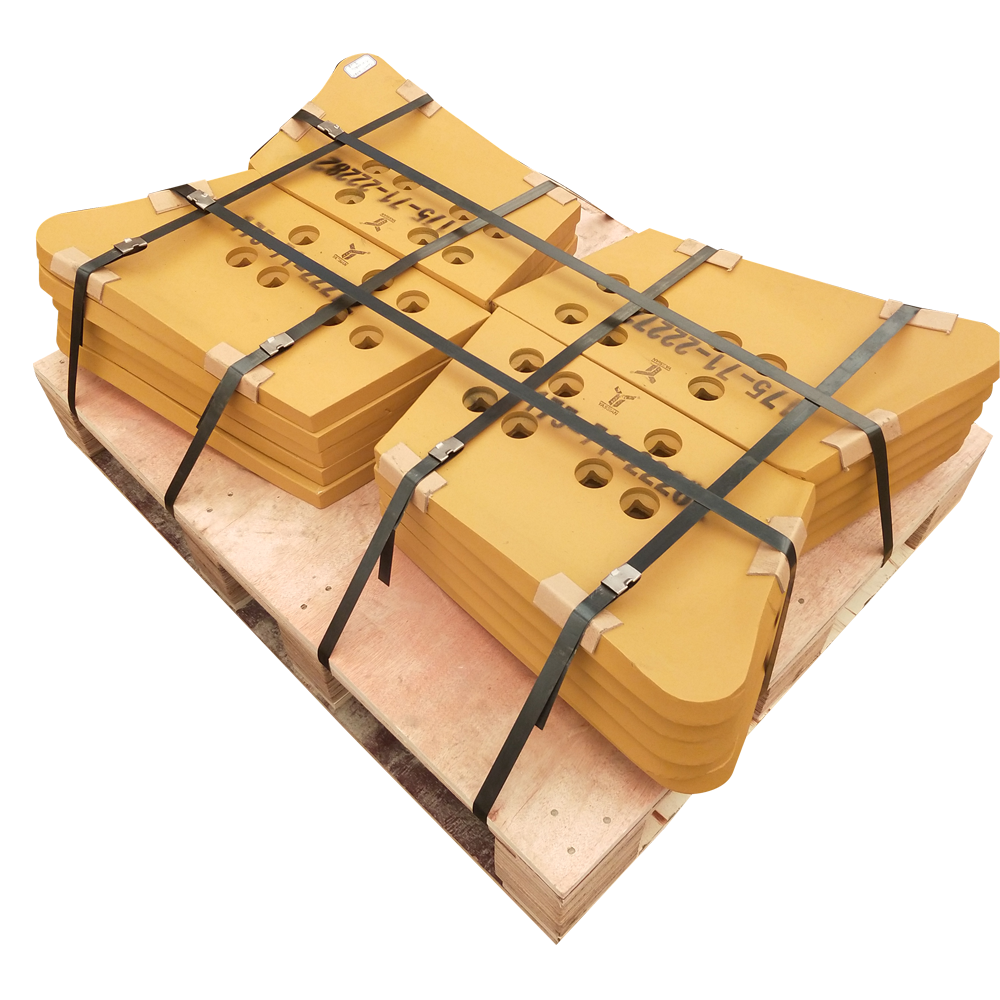

High-Performance Dozer End Bits
These professional-grade dozer end bits are engineered for demanding earthmoving and construction applications. Designed for optimal wear resistance and durability, they ensure consistent performance in harsh operating environments. Available in multiple material compositions and precise dimensional configurations, these parts are built to provide a perfect fit for your heavy machinery.
Technical Specifications
Compatible Part Numbers
- 1757122272
- 1757122282
Dimensional Specifications
| Length (mm) | Width (mm) | Thickness (mm) | Bolt Pattern |
|---|---|---|---|
| 540 | 254 | 40 | 7*7/8" |
| 540 | 254 | 35 | 7*7/8" |
| 540 | 254 | 30 | 7*7/8" |
- Available Materials
- 16Mn30MnB
