Dozer End Bit 9W9193 for Caterpillar Bulldozers
This dozer end bit is a replacement part for Caterpillar bulldozers, specifically the 9W9193 model. It provides a high-quality cutting edge for earthmoving applications.
Technical Specifications
Product Overview
High-Performance Dozer End Bit
This high-carbon (HC) dozer end bit is engineered as a robust replacement part for heavy-duty bulldozers. Manufactured from heat-treated Boron steel (30MnB), it offers exceptional durability and wear resistance in demanding ground-engaging applications. Designed for precise fitment, this component ensures optimal cutting and grading efficiency for construction and earthmoving projects.
Technical Specifications
- Part Number
- 9W9193
- Material
- Heat treated Boron steel (30MnB)
- Hardness
- HB400-450
Dimensions & Weight
Physical Dimensions

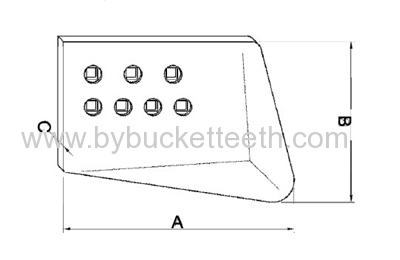

| Measurement | Value | Unit |
|---|---|---|
| Length (A) | 701 | mm |
| Width (B) | 330 | mm |
| Thickness (C) | 50 | mm |
- Weight
- 86.9 Kg
Installation Details
- Bolt Type
- 1'' plow bolt
- Bolt Quantity
- 7
Compatibility
- Compatible Models
- 9SU
