Double Station Extrusion Blow Molding Machine
This double station extrusion blow molding machine is specialized for manufacturing bottles and containers under 10L. It features a toggle balance clamping structure and a high L/D ratio screw for stable extrusion.
Technical Specifications
Overview

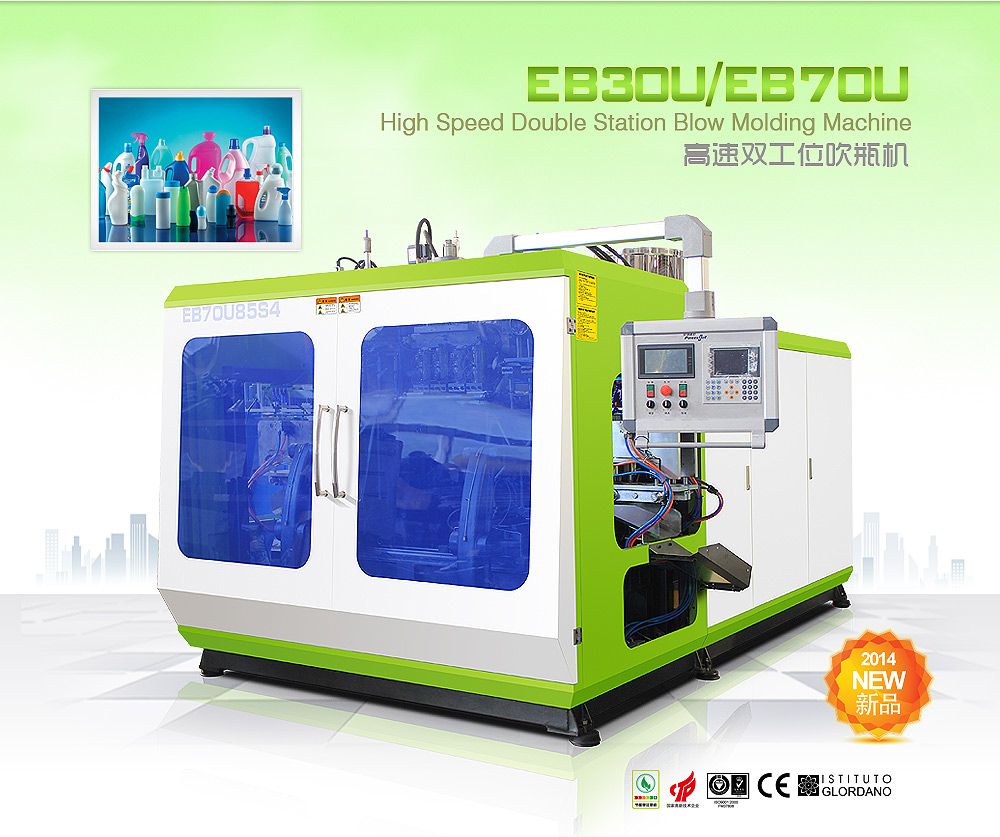

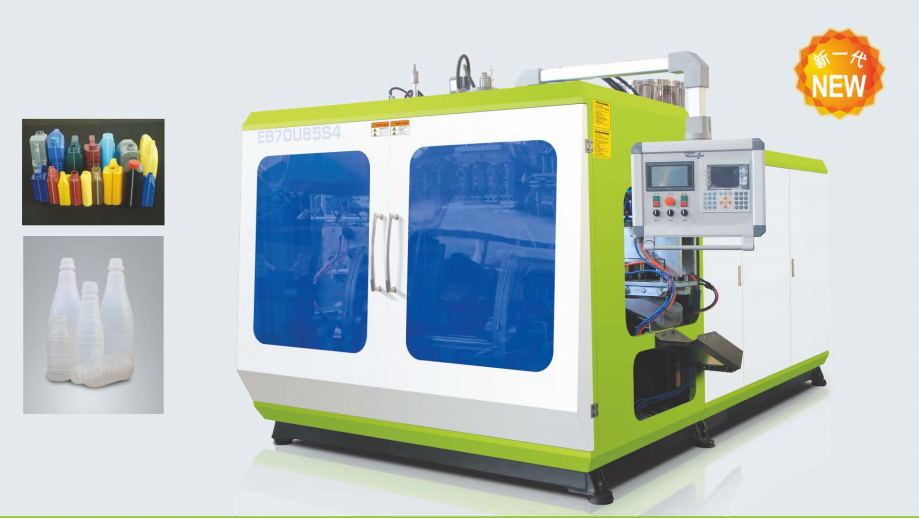

High-Speed Double Station Blow Molding Machine

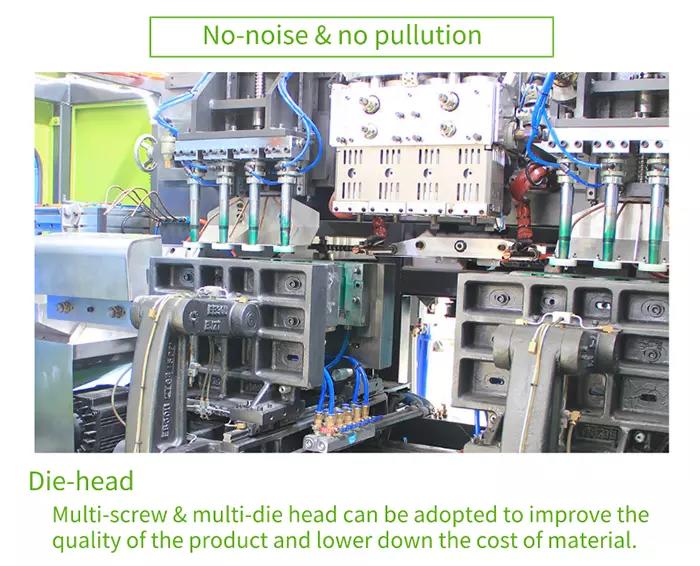

This double station extrusion blow molding machine is engineered for the efficient, high-volume production of plastic bottles and containers up to 10L capacity. Featuring a toggle balance clamping structure and linear guide movement, the system minimizes friction to achieve high-speed operation while maintaining precise control. Advanced multi-screw and multi-die head configurations are available to optimize material usage and product quality, making it an ideal solution for daily necessities, toiletries, and beverage packaging industries.
Key Performance Metrics
Key Performance Metrics
Technical Specifications
Technical Specifications Table
| Parameter | EB30U55 | EB70U85 |
|---|---|---|
| Max Product Volume (L) | 4 | 10 |
| Clamping Force (KN) | 65 | 110 |
| Screw Diameter (mm) | 55 | 85 |
| Extrusion Motor (KW) | 11 | 30 |
| Machine Weight (kg) | 4400 | 5820 |
Features
Key Machine Features
- Toggle balance clamping structure with linear guides
- Finite Element Analysis (FEA) designed frame components

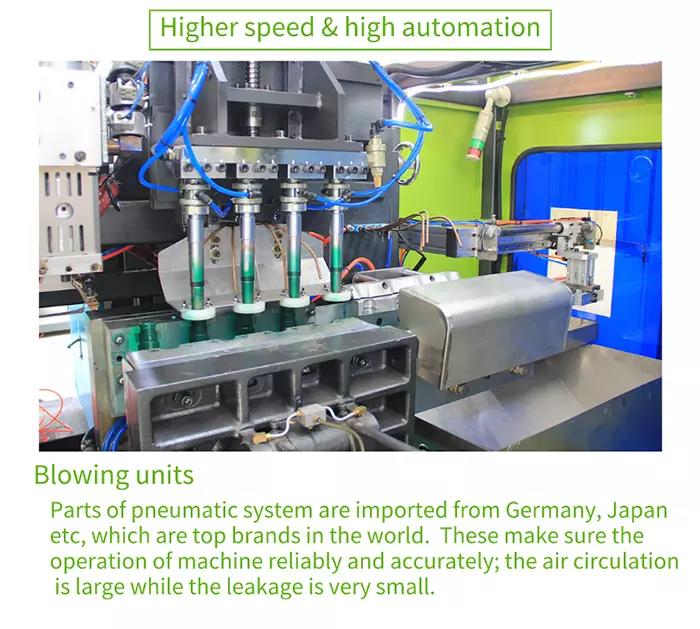

- High-speed mold clamping cylinder with anti-shock cushion valve
- High L/D ratio screw for stable plasticizing
- Multi-way PID controlled temperature heating

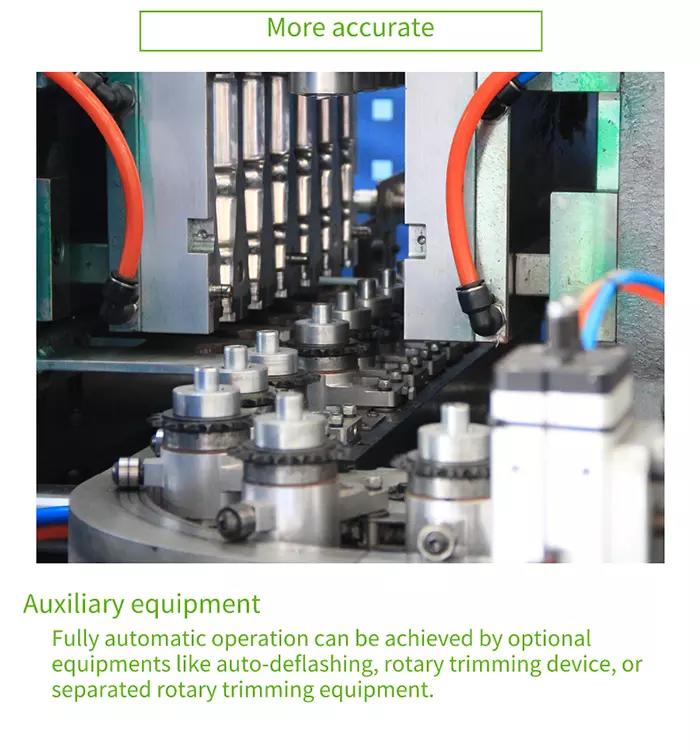

- Optional auto-deflashing and rotary trimming devices
Applications
- Suitable Applications
- Daily NecessitiesToiletriesBeverage PackagingPlastic ContainersHollow Plastic Products
