Technical Specifications
Overview
High-Efficiency Paper Doily Production

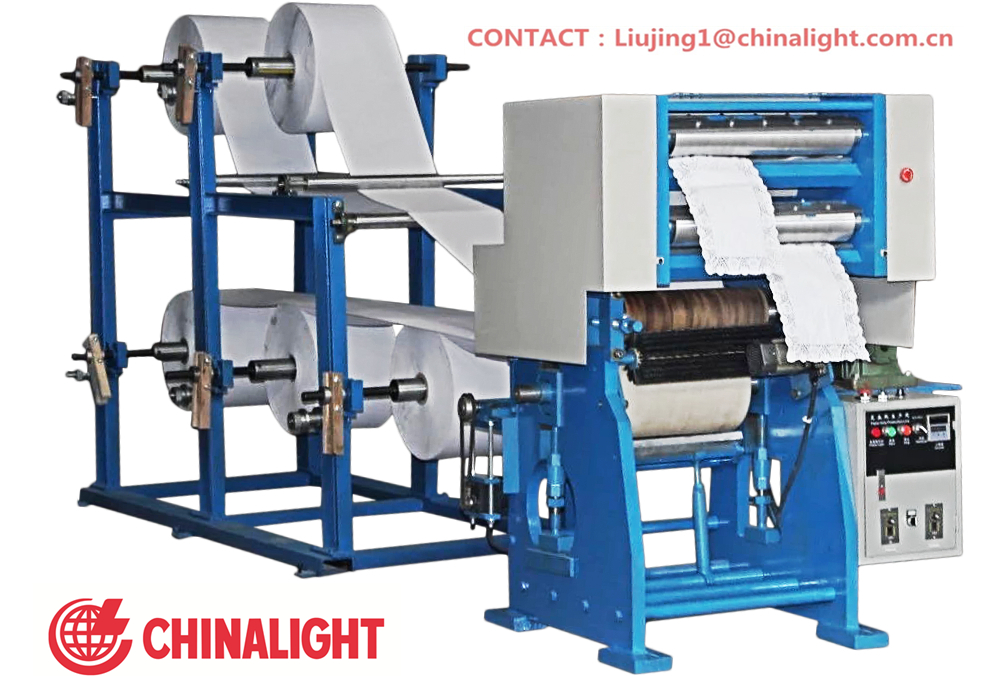

This double output production machine is engineered for the high-volume manufacturing of paper doilies, coasters, and baking cups. Featuring a versatile mold system, it supports various shapes including round, oval, square, and heart. The integrated control system ensures smooth, coordinated operation across die-cutting, embossing, waste cleaning, and finishing processes.
Technical Specifications
- Power Consumption
- 12 kW
- Power Supply Voltage
- AC380V 50HZ
- Mold Speed
- 72 cycles/min
- Round Paper Output
- 72000 sheets/hour
Material Handling
- Compatible Paper Weight
- 45-300g
- Max Raw Paper Width
- 450 mm
- Max Raw Paper Diameter
- 1000 mm
- Paper Roll Capacity
- 5 rolls
Capabilities
Process Features
- Die-cutting
- Embossing
- Waste cleaning
- Cutting and finishing
- Supported Shapes
- RoundOvalSquareRectangleHeart
- Material Efficiency
- 10-20% raw material savings via mold recombination design
