Technical Specifications
Overview
Efficient Multi-Layer Parking Solution

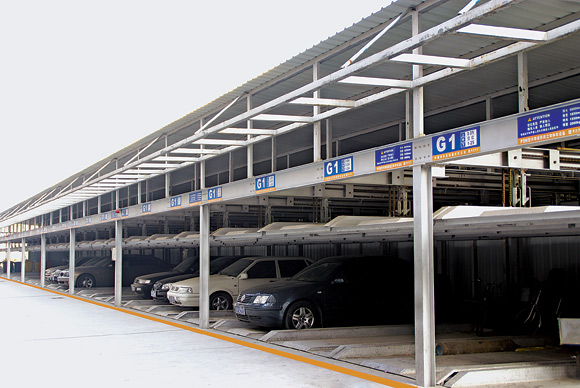

The PSH pit type elevating and traversing three-dimensional garage equipment is an economical mechanical parking solution designed to maximize vehicle capacity in limited spaces. By utilizing vertical and horizontal movement, this system effectively transforms a single parking vacancy into a three-layer storage configuration. It is an ideal infrastructure upgrade for business districts, office complexes, and urban revitalization projects requiring rapid capacity expansion.
Vehicle Capacity
Maximum Loading Capacity
2,000 kg
Max Load
- Upper Layer Vehicle Limits
- ≤ 5000 x 1850 x 1550 mm
- Ground Layer Vehicle Limits
- ≤ 5000 x 1850 x 1700/2000 mm
Technical Specifications
Drive Mechanisms
Chain DriveTraction Steel Cable
- Operation & Control Methods
- RFID CardPasswordFacial RecognitionFingerprintKeyboardVoice PromptRemote ControlTouch Screen (Optional)
- Power Supply
- 3N AC 380V, 50Hz
Performance Data
System Performance Metrics
| Metric | Speed (m/min) | Motor Power (kW) |
|---|---|---|
| Lifting | 4-10 | 2.2 / 3.7 / 5.5 / 9.2 |
| Traversing | 7-12 | 0.2 / 0.4 |
Features
Key Advantages
- Economical construction costs
- Standardized design for scalable production
- Rapid installation process
- Low maintenance requirements
- Multiple integrated safety protection devices
- User-friendly human-machine interface
