Technical Specifications
Product Overview
Automated Paper Bowl Production

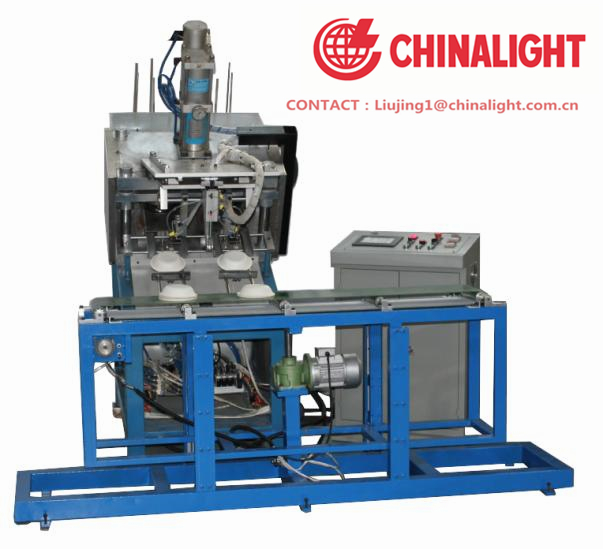

This disposable paper bowl forming machine is designed for fully automated, high-efficiency production, eliminating the need for manual intervention. Utilizing a PLC control system with a touch screen interface, it manages the entire workflow from material feeding to bowl collection. The machine features a dual-mold setup that significantly boosts output, making it an ideal solution for industrial-scale food service packaging.
Performance Metrics
Production Speed
15 times/min
Min Mold Cycles
25 times/min
Max Mold Cycles
- Total Power
- 3.5 kw
Technical Specifications
- Raw Material Weight
- 350-500 g/m2
- Forming Temperature
- 120-250 °C
- Compressed Air Pressure
- 0.56 - 0.8 MPa
- Gas Flow Rate
- 1 m2/min
Features
Automation Capabilities
- Automatic material feeding
- Automatic counting
- Automatic bowl collecting
- PLC-controlled pneumatic operation
- Dual-mold configuration
- Interface Languages
- ChineseEnglish
