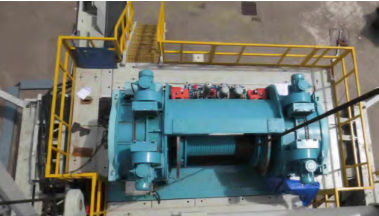

Direct Drive Drawworks System
This direct drive drawworks system is designed for efficient drilling operations. It features dual motors that directly drive the drum, reducing maintenance and improving control.
Technical Specifications
Overview
Advanced Direct Drive Drawworks
The Direct Drive Drawworks System features double motors that directly drive the drum, eliminating the need for reduction gears, couplings, and complex lubrication systems. This innovative design results in a unit that is 40% smaller and 25% lighter than traditional models, while reducing maintenance requirements by up to 80%. Equipped with AC VFD drives and integrated automatic driller's control software, it provides precise control over ROP, WOB, and torque for demanding petroleum prospecting applications.
Key Advantages
Efficiency & Design Benefits
40 %
Size Reduction
25 %
Weight Reduction
80 %
Maintenance Reduction

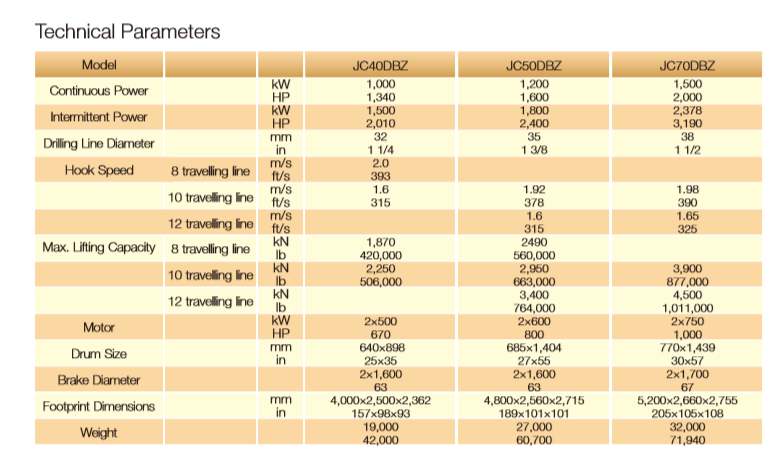

Technical Parameters
Model Specifications Comparison
| Parameter | JC40DBZ | JC50DBZ | JC70DBZ |
|---|---|---|---|
| Continuous Power | 1000 kW (1340 HP) | 1200 kW (1600 HP) | 1500 kW (2000 HP) |
| Intermittent Power | 1500 kW (2010 HP) | 1800 kW (2400 HP) | 2378 kW (3190 HP) |
| Drilling Line Diameter | 32 mm (1 1/4 in) | 35 mm (1 3/8 in) | 38 mm (1 1/2 in) |
| Motor Configuration | 2x500 kW | 2x600 kW | 2x750 kW |
| Max Lifting (10 Lines) | 2250 kN | 2950 kN | 4500 kN |
| Weight | 19,000 kg | 27,000 kg | 32,000 kg |
- Drum Sizes (mm)
- 640x898685x1404770x1439
Safety & Control
Control & Safety Systems
- AC VFD drive with fast line safety protection
- Automatic position control
- Upper & lower travel protection for travelling block
- Wire line protection system (WPS)
- Direct acting and floating hydraulic disc brake
- Integrated automatic driller’s control software (ROP, WOB, DeltaP, Torque)
Mechanical Components
Drive Type
Direct DriveGearlessAC VFD
- Braking System
- Hydraulic disc brake with quick response and automatic clearance adjustment.
