Digital Weighing Scale with LED Display

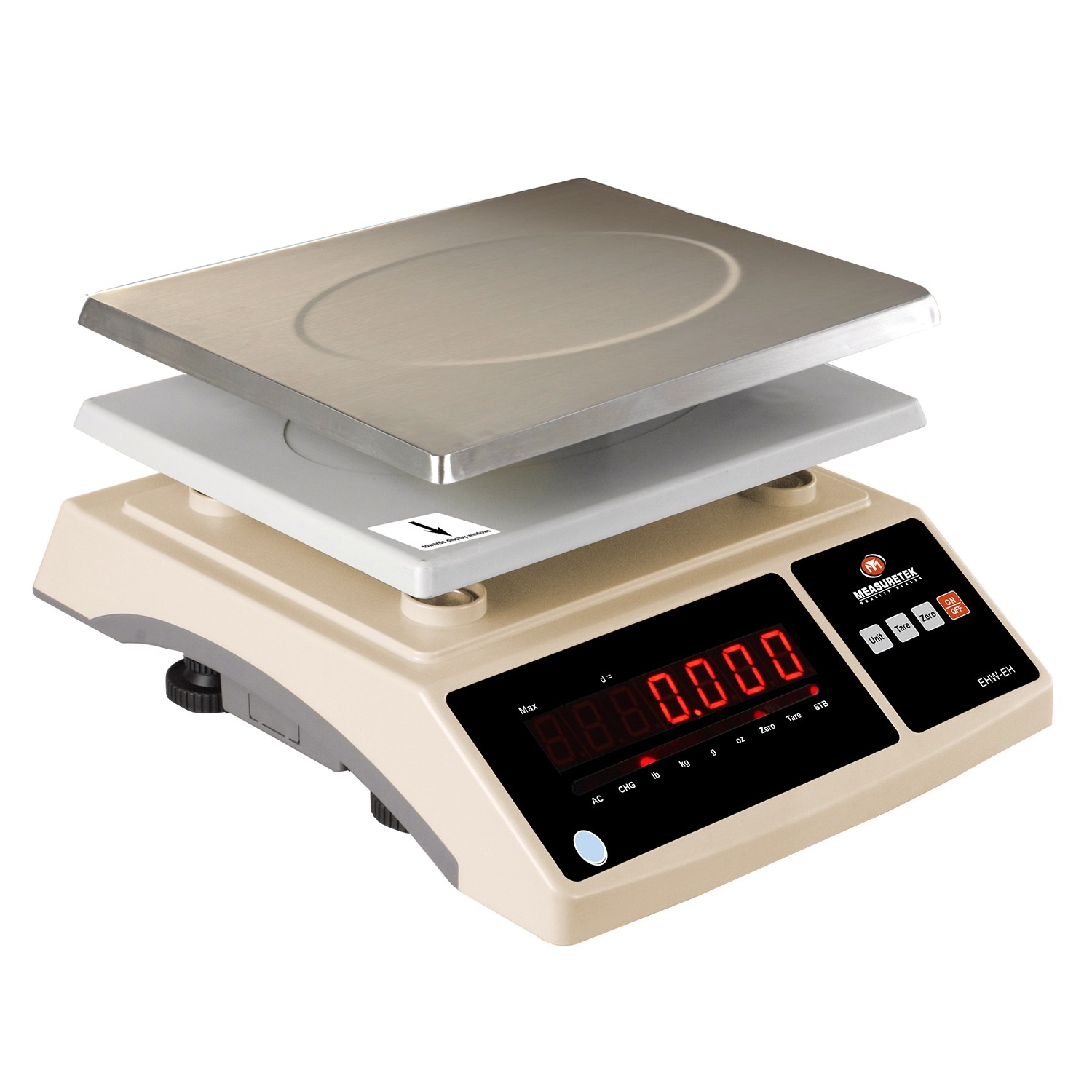

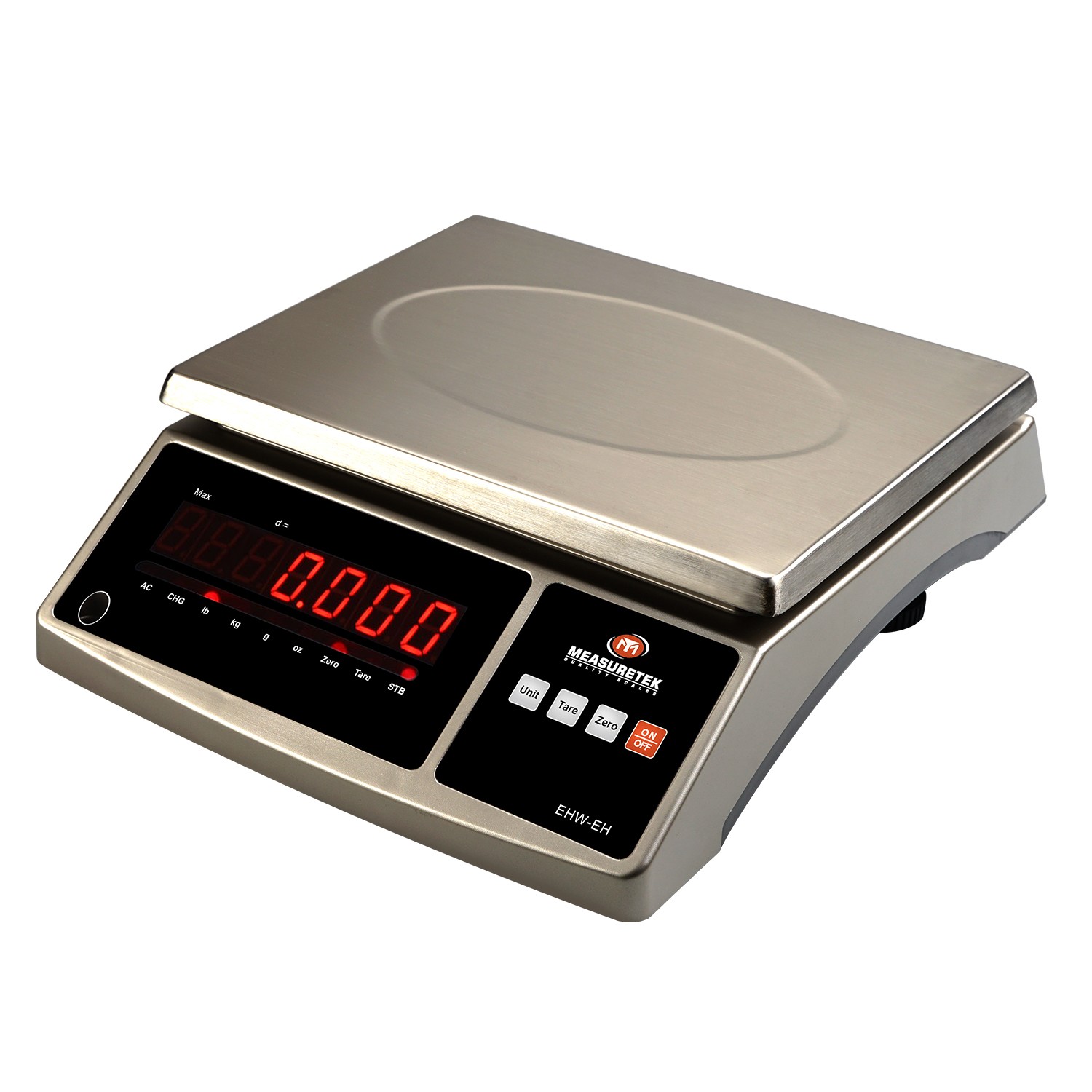

This digital weighing scale is designed for general purpose weighing in light industrial, shop, and warehouse environments. It features a removable stainless steel weighing platter for easy cleaning and a bright LED display.
Technical Specifications
Overview
Precision Weighing Solution
This digital weighing scale is designed for versatility in light industrial, warehouse, and retail environments. It features a high-precision single aluminum load cell that delivers system resolution up to 1/30,000 for accurate measurements. With a robust ABS housing, stainless steel weighing platter, and adjustable feet, it provides a stable and durable platform for daily operations.
Technical Specifications
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
- Power Source
- 12V DC 500mA adapter or 6V 4Ah lead-acid rechargeable battery
- Serial Port
- RS232
- Certifications
- CEWEEEULBS
Performance
Capacity Models
| Model | Capacity |
|---|---|
| EHW-EH-3 | 3kg x 0.5g / 6lb x 0.001lb |
| EHW-EH-6 | 6kg x 1g / 12lb x 0.002lb |
| EHW-EH-15 | 15kg x 2g / 30lb x 0.005lb |
| EHW-EH-30 | 30kg x 5g / 60lb x 0.01lb |
- Display
- 7-digit, 0.8-inch high, 7-segment red LED with adjustable brightness
Construction
Build Materials
Stainless Steel PlatterABS HousingCast Aluminum Bracket
- Platform Size
- 297 x 227 mm (11.69 x 8.94 inches)
Features
Keypad Functions
- ON/OFF
- Zero
- Tare
- Unit
- Connectivity
- External printer support for label printing via RS232
