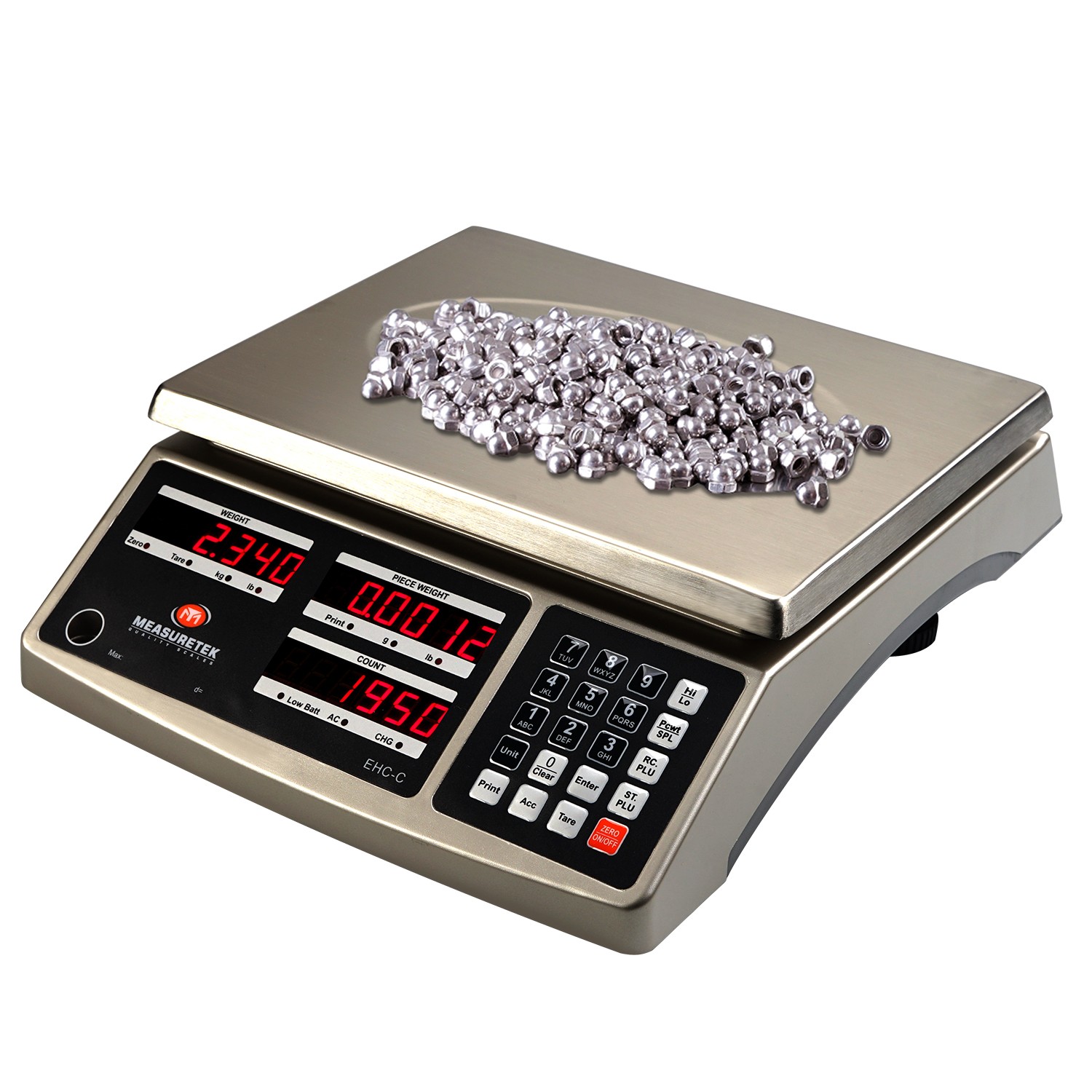

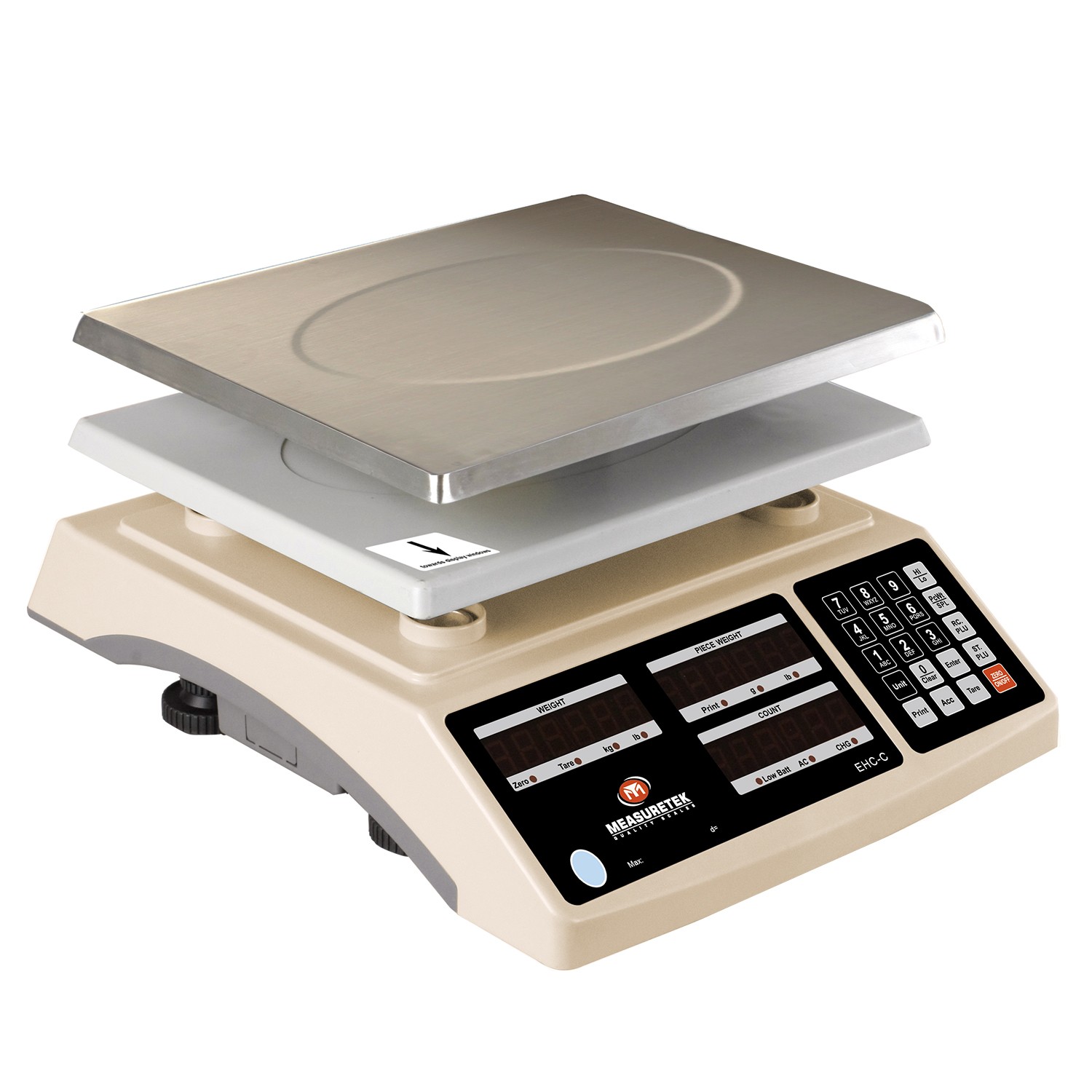

Digital Counting Scale with LED Display
This digital counting scale accurately weighs and counts parts for inventory management. It features an LED display, stainless steel platform, and multiple weighing units.
Technical Specifications
Overview
Professional Counting Solution
This digital counting scale is engineered for precision in light industrial, warehouse, and parts counting applications. Featuring a durable stainless steel weighing platter and a rugged ABS housing, it is built to withstand demanding environments while maintaining stability with its adjustable feet and leveling bubble. With 256 memory slots and advanced counting functions, this scale provides an efficient solution for inventory management and quality control.
Performance
Capacity & Readability
| Model | Capacity (Metric) | Capacity (Imperial) |
|---|---|---|
| EHC-C-3 | 3kg x 0.1g | 6lb x 0.0002lb |
| EHC-C-6 | 6kg x 0.2g | 12lb x 0.0005lb |
| EHC-C-15 | 15kg x 0.5g | 30lb x 0.001lb |
| EHC-C-30 | 30kg x 1g | 60lb x 0.002lb |
Construction
- Build Materials
- Stainless Steel PlatterABS HousingCast Aluminum Load Cell Bracket
- Platform Dimensions
- 297 x 227 mm (11.69 x 8.94 inches)
Features
Key Functions
- Weighing and Counting
- Upper/Lower Count Limits
- Accumulation
- Preset Tare
- 256 Memory Storage (Piece Weight, Tare, Unit)
Connectivity
RS232 Serial PortExternal Printer Support
Technical
Display
3 count
Windows
14.2 mm
Digit Height
- Power Requirements
- 12V DC 500mA adapter or 6V 4Ah lead-acid rechargeable battery
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
- Certifications
- CEWEEEUL/CE/BS/VI Power Adapter
