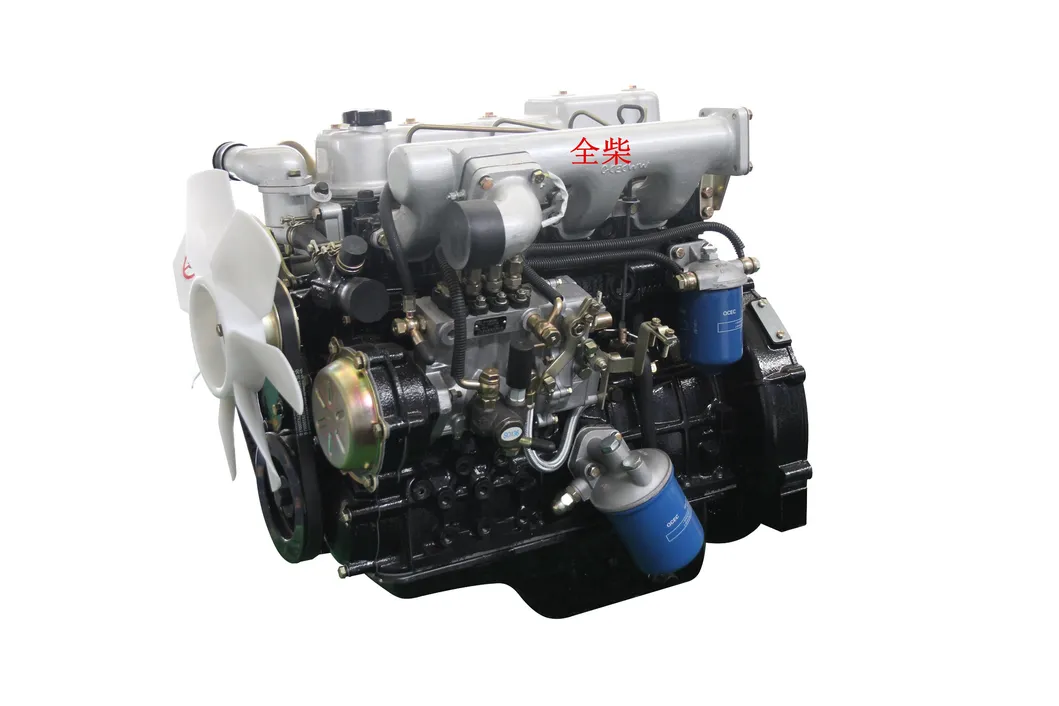

Diesel Engine for Forklift Trucks
This diesel engine is specifically designed for forklift truck applications. It features a 4-cylinder configuration with a 2.27L displacement, delivering 32kW of power at 2600rpm.
Technical Specifications
Product Overview
High-Performance Industrial Diesel Engine
This diesel engine series is specifically engineered for forklift trucks ranging from 1.5 to 4.5 tons, offering a robust power solution for demanding material handling environments. Developed using advanced 3D design and CAE analysis technology, the engine optimizes structural stiffness to ensure high reliability and strong power delivery. Its compact and lightweight design allows for convenient installation and arrangement across various industrial vehicle platforms.
Core Performance
Key Performance Metrics
32 kW
Rated Output
2,600 rpm
Rated Speed
140 N.m
Max Torque
Technical Specifications
- Model
- 4B4-45M22
- Number of Cylinders
- 4
- Bore & Stroke
- 85 x 100 mm
- Displacement
- 2.27 L
- Max Torque Speed
- 1900 rpm
Efficiency & Emissions
Emission Standard
State Two
- Fuel Consumption Rate
- 235 g/kw.h
Design Features
Main Advantages
- Direct injection combustion chamber for easy starting
- Long stroke design for large torque backup
- Strengthened gear system for stable hydraulic PTO output
- High-flow cooling nozzles for thermal management
- Low vibration and noise for operator comfort
- High parts universality with vehicle diesel engines
Applications
- Target Applications
- Forklift Trucks (1.5-4.5t)Construction MachineryAgricultural EquipmentIndustrial Vehicles
