Diesel Engine
Diesel engines provide reliable power for a variety of applications. These engines come in single and multi-cylinder configurations, with options for air or water cooling.
Technical Specifications
Overview
High-Performance Diesel Engine Series
This versatile range of diesel engines offers reliable power solutions for various industrial and agricultural applications. Available in single and twin-cylinder configurations, these four-stroke engines feature advanced direct injection technology for optimized combustion efficiency. With options for both air-cooled and water-cooled systems, these units are designed for durability and consistent performance across diverse operating environments.
Core Performance
Performance Highlights
15 HP
Max Rated Power
3,600 RPM
Max Rated Speed
997 ml
Max Displacement
Engine Design
- Engine Configuration
- Vertical or V-Type, 1 or 2-Cylinder, 4-Stroke
- Cooling Method
- Air CooledWater Cooled
- Combustion System
- Direct Injection or Swirl Chamber
- Rotation Direction
- Clockwise (View from Flywheel)
Operational Details
Starting Options
Recoil StarterElectric Starter
- Fuel Type
- 0# (Summer), -10# (Winter) Diesel Oil
- Lube Oil Grade
- SAE10W30 (Above CD grade)
- Power Take-Off
- Crankshaft
Technical Specifications
Fuel Consumption
- 3000rpm: 275 g/kwh
- 3600rpm: 280-296 g/kwh
- Compression Ratio
- 19:01 to 23:01
Model Comparison

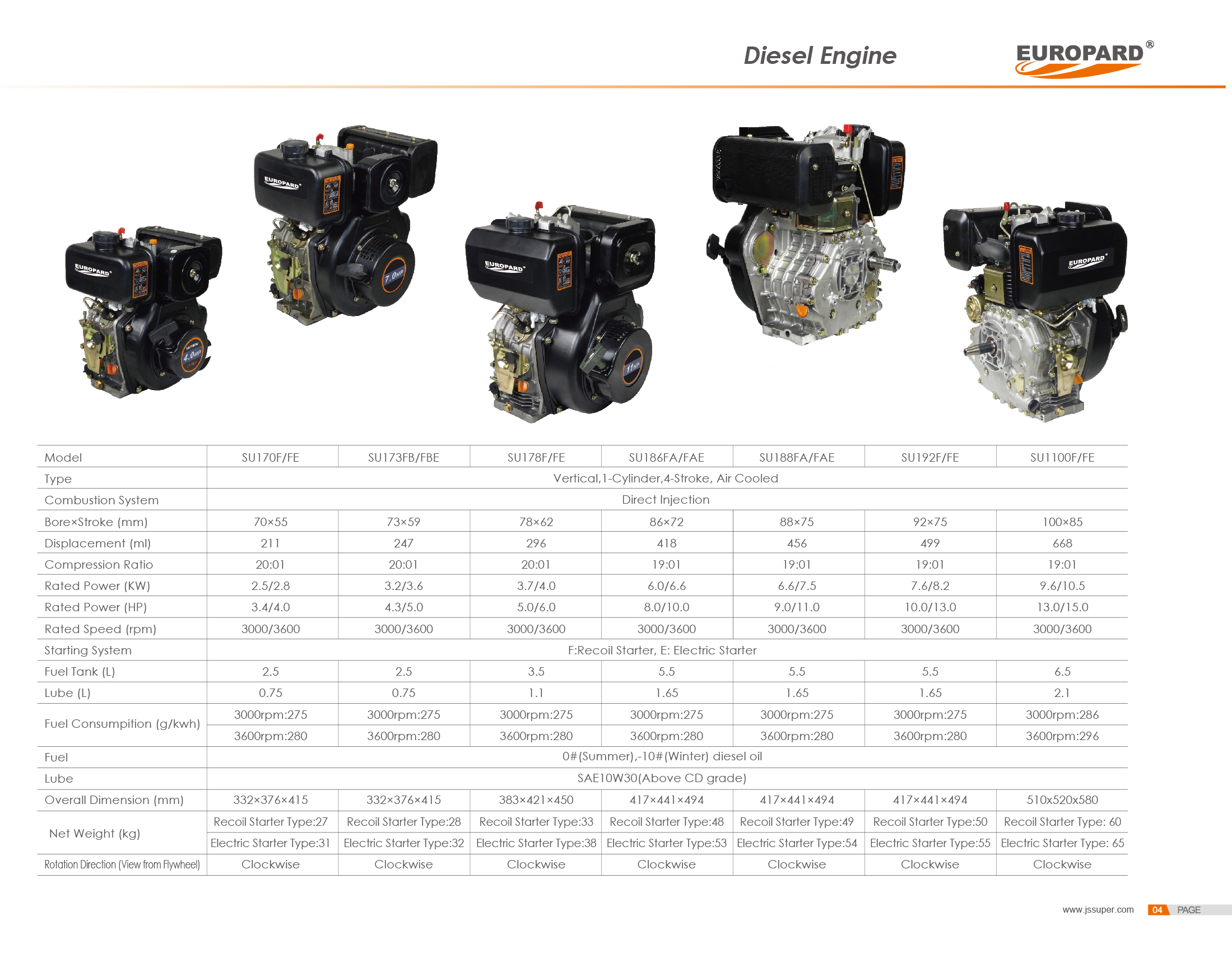

Single-Cylinder Model Range
| Model | Displacement (ml) | Rated Power (KW) | Fuel Tank (L) |
|---|---|---|---|
| SU170F/FE | 211 | 2.5/2.8 | 2.5 |
| SU178F/FE | 296 | 3.7/4.0 | 3.5 |
| SU186FA/FAE | 418 | 6.0/6.6 | 5.5 |
| SU192F/FE | 499 | 7.6/8.2 | 5.5 |
| SU1100F/FE | 668 | 9.6/10.5 | 6.5 |

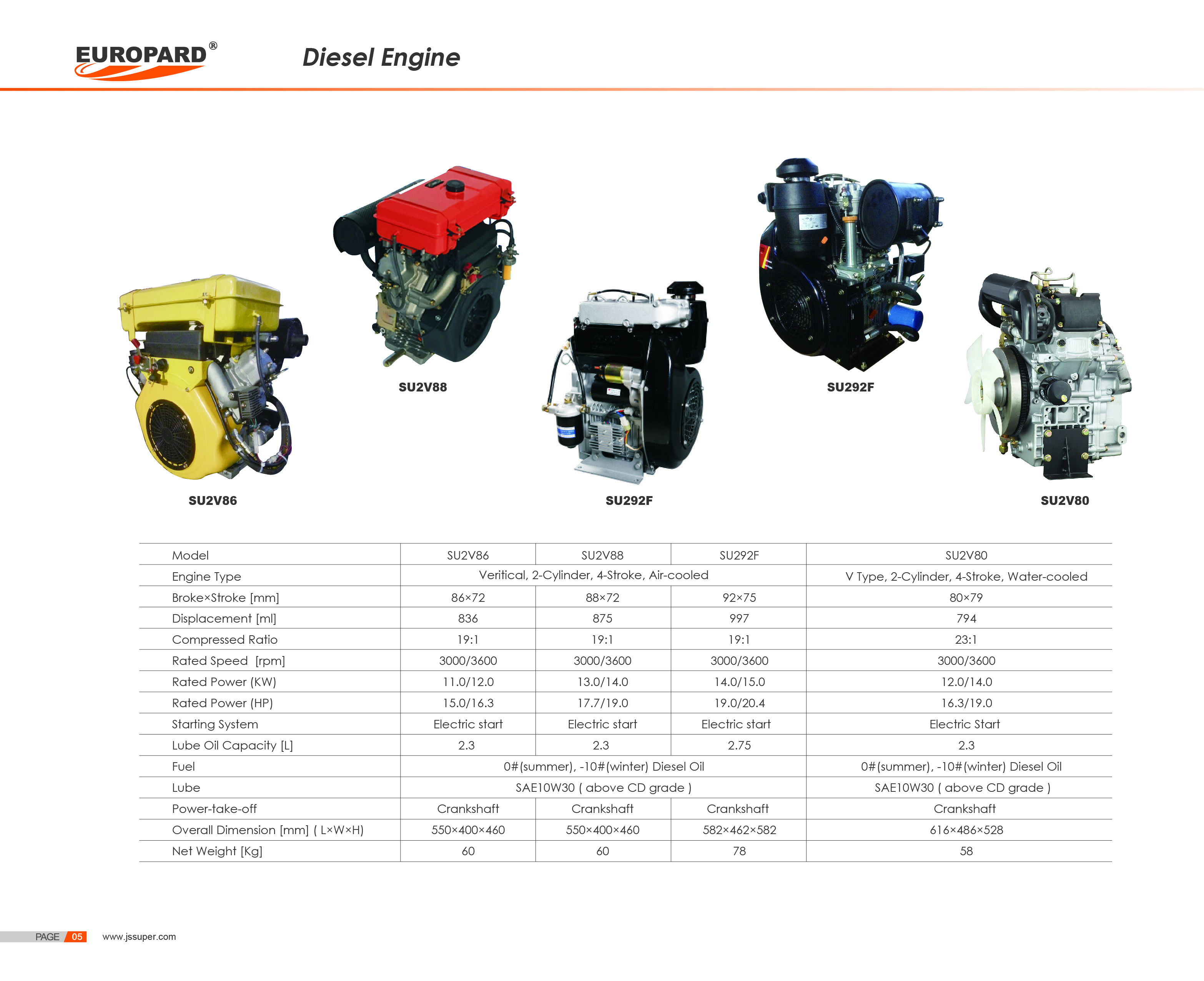

Multi-Cylinder Model Range
| Model | Type | Rated Power (HP) | Weight (kg) |
|---|---|---|---|
| SU2V86 | Air-cooled | 15.0/16.3 | 60 |
| SU2V88 | Air-cooled | 17.7/19.0 | 60 |
| SU292F | Air-cooled | 19.0/20.4 | 78 |
| SU2V80 | Water-cooled | 16.3/19.0 | 58 |
