Technical Specifications
Overview

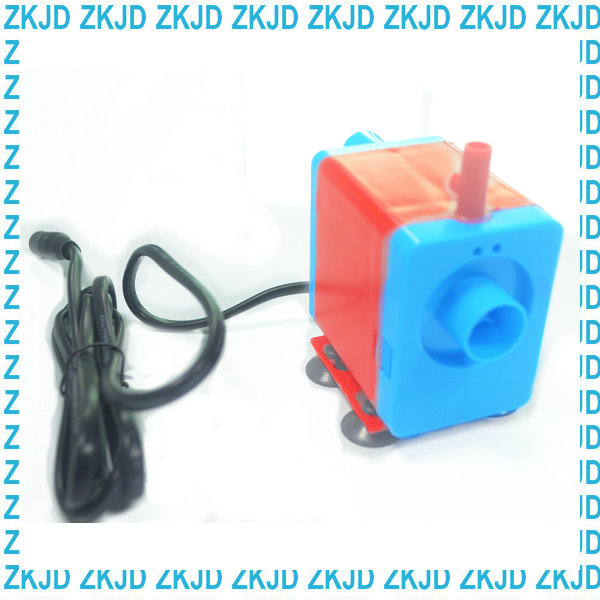

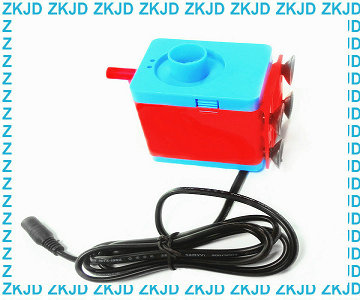

Compact DC 12V Water Circulation Pump
This versatile 12V DC aquarium pump is engineered for efficient water circulation in both fresh and saltwater environments. Featuring a brushless, permanent magnetic driving method, it ensures reliable and quiet operation for various aquatic and hydroponics applications. Its compact size and submersible design make it an ideal choice for professional-grade water management in small to medium-sized setups.
Performance Metrics
Key Performance Indicators
600 L/H
Max Flow Rate
1 M
Max Static Head
5 W
Power Consumption
Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Size (L*W*H) | 71.5mm x 70mm x 50mm |
| Weight | 0.42kg |
| Outlet Diameter | 16mm |
Electrical Characteristics
- Rated Voltage: 12V DC
- Max Rated Current: 0.42A
- Driving Method: Brushless, Permanent Magnetic
- Material
- ABS
Operational Details
- Usage Environment
- SubmersibleFresh WaterSalt Water
- Maximum Operating Temperature
- 60 Celsius
