Technical Specifications
Overview
Versatile Emergency Lighting Solution

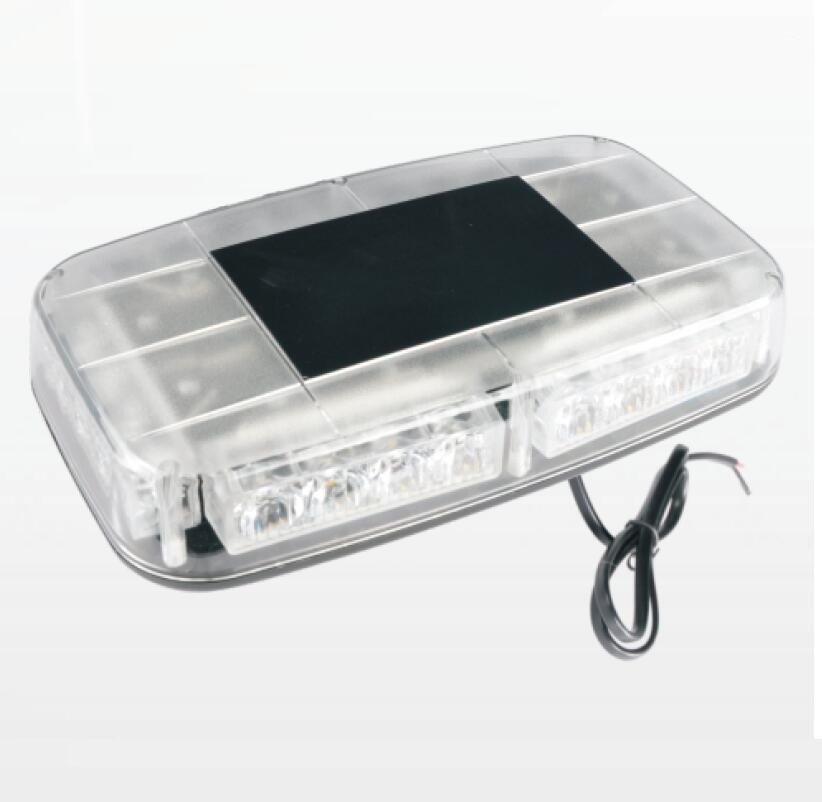

This DC 12V-24V LED light bar bridges the gap between a standard beacon and a full-sized light bar, offering high-performance visibility with the ease of a compact unit. Featuring a streamlined PC cover and high-power LEDs, it is designed for durability and maximum lumen output. It is an ideal choice for emergency vehicles and construction equipment requiring reliable, multi-pattern warning signals.
Technical Performance
Key Performance Metrics
24 pcs
High Power LEDs
8 modes
Flash Patterns
65 IP
Waterproof Rating
- Operating Temperature Range
- -30°C to 50°C
Electrical Specifications
- Operating Voltage
- DC 12V - 24V
- Max Current at 12V
- 1.8 A
- Max Current at 24V
- 0.9 A
Physical Construction
- Dimensions (L x W x H)
- 280mm x 155mm x 55mm
- Lens Material
- Polycarbonate (PC) with Anti-ultraviolet properties
- Available Lens Colors
- AmberBlueRedClear
Installation & Use
Mounting & Connection

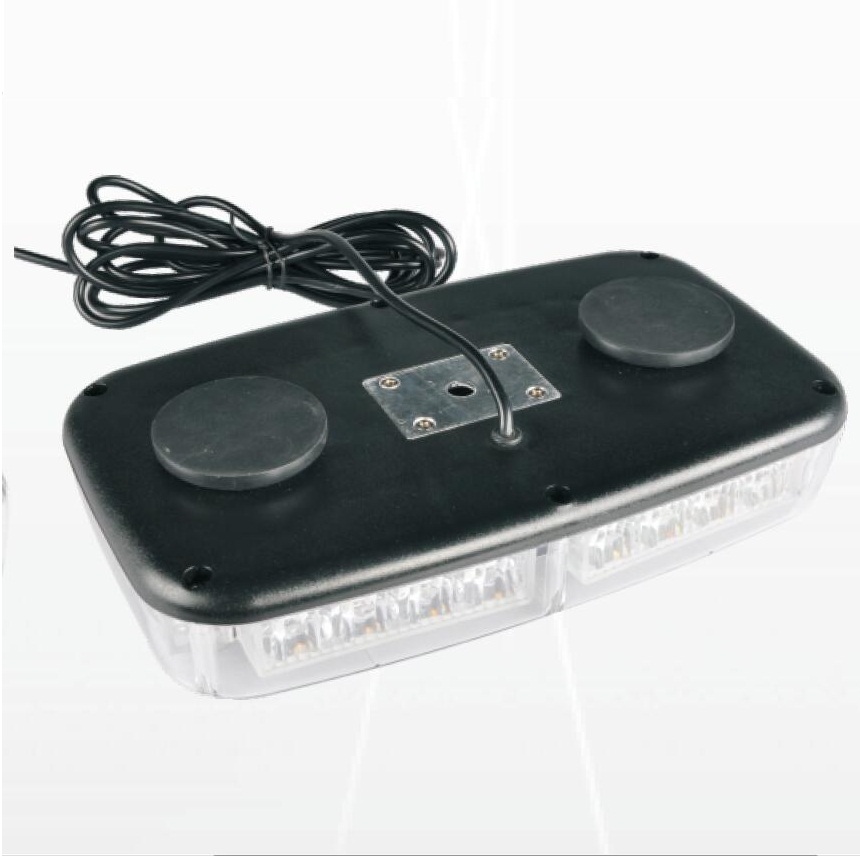

- Magnetic base for secure vehicle attachment
- Cigar plug for easy power connection
- Coiled power cable included
Compliance & Quality
Certifications
CERoHSREACHDOT ApprovedECE R10Reg 65
- Warranty
- 1 Year limited warranty from production date
