Technical Specifications
Overview

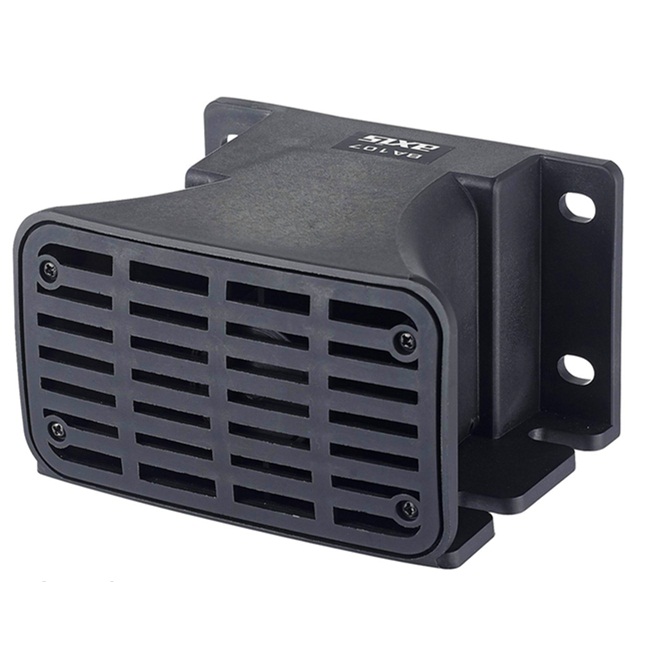

Heavy-Duty Safety Reversing Alarm
This robust safety reversing alarm is engineered for reliable performance in demanding industrial and construction environments. Designed for compatibility with trucks, forklifts, and heavy equipment, it operates on a wide 12-48V DC voltage range. The unit features dual sound output levels and durable, weather-resistant construction to ensure clear, effective warnings in noisy workspaces.
Technical Specifications
Sound Levels
97 dB
Low Output
107 dB
High Output
IP Rating
IP56DustproofWaterproof
- Operating Voltage
- 12-48V DC
- Sound Options
- White NoiseSquawkQuackBeeBee
- Power Consumption
- 15 Watts / 250mA

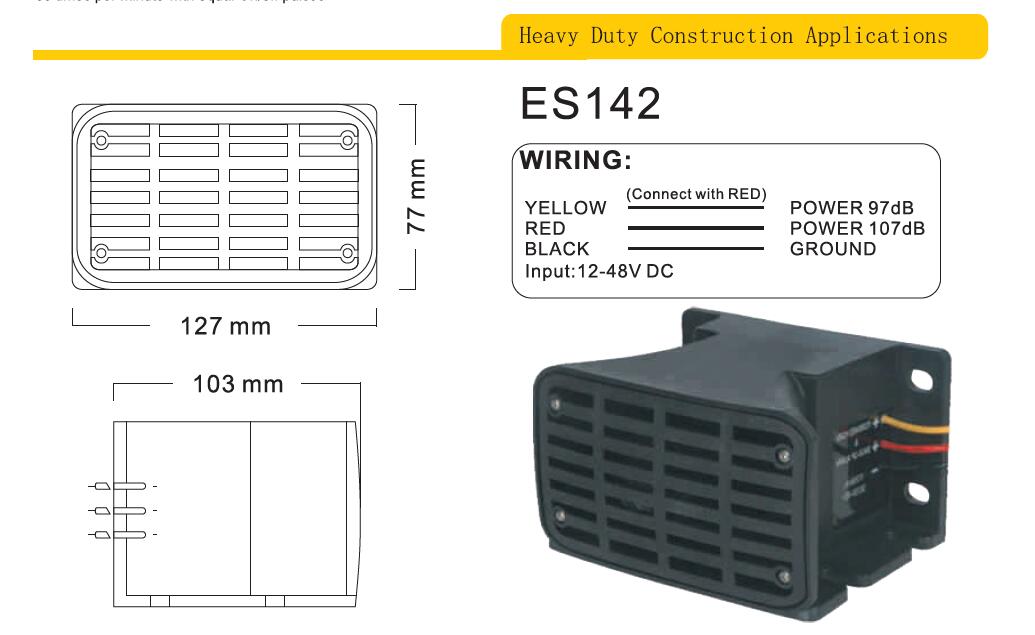

- Dimensions
- 77H x 127W x 103D mm
- Material
- Nylon

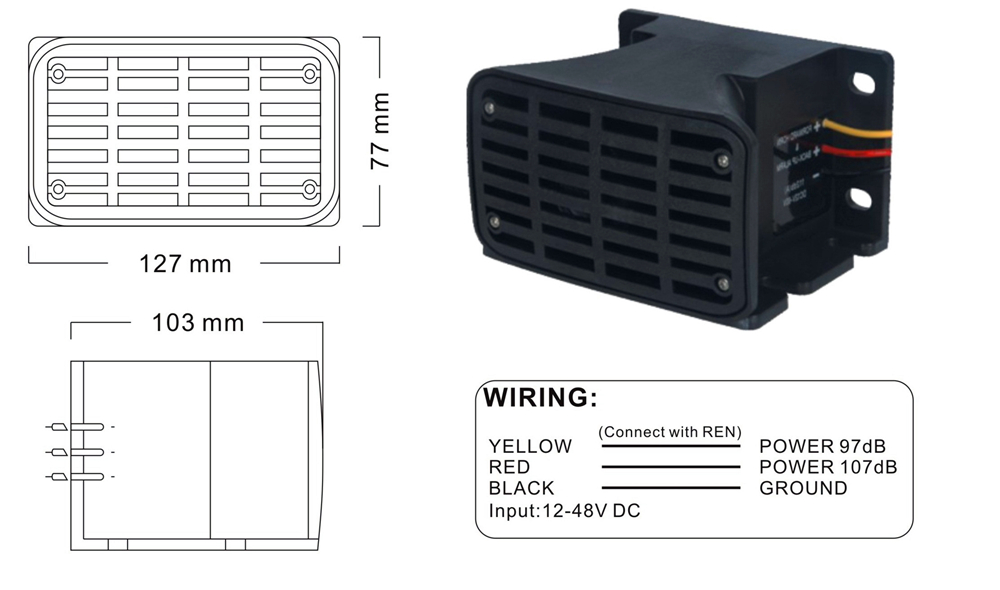

Wiring Configuration
Wiring Guide
| Wire Color | Function |
|---|---|
| Red | Power (107dB) |
| Yellow + Red | Power (97dB) |
| Black | Ground |
Commercial Terms
- Warranty
- 12 months
- Customization
- Custom color box available for orders over 1000 pcs
