Cross Flow Air Curtain
This cross flow air curtain is designed to create an invisible air barrier, separating different environments. It is suitable for commercial and industrial settings such as retail stores and warehouses.
Technical Specifications
Overview
High-Efficiency Cross Flow Air Curtain
This cross flow air curtain is engineered to create an invisible climate barrier, effectively preventing the exchange of air, dust, and insects while reducing energy loss. Featuring a sleek metal and plastic grill design, it offers a high-efficiency motor and quiet blower for consistent performance in commercial and industrial environments. The unit is designed for easy maintenance and versatile installation above doorways to maintain stable indoor temperatures.
Performance Metrics
Key Performance Indicators
10.5 m/s
Air Velocity
3,200 m³/h
Max Air Volume
3 m
Max Install Height

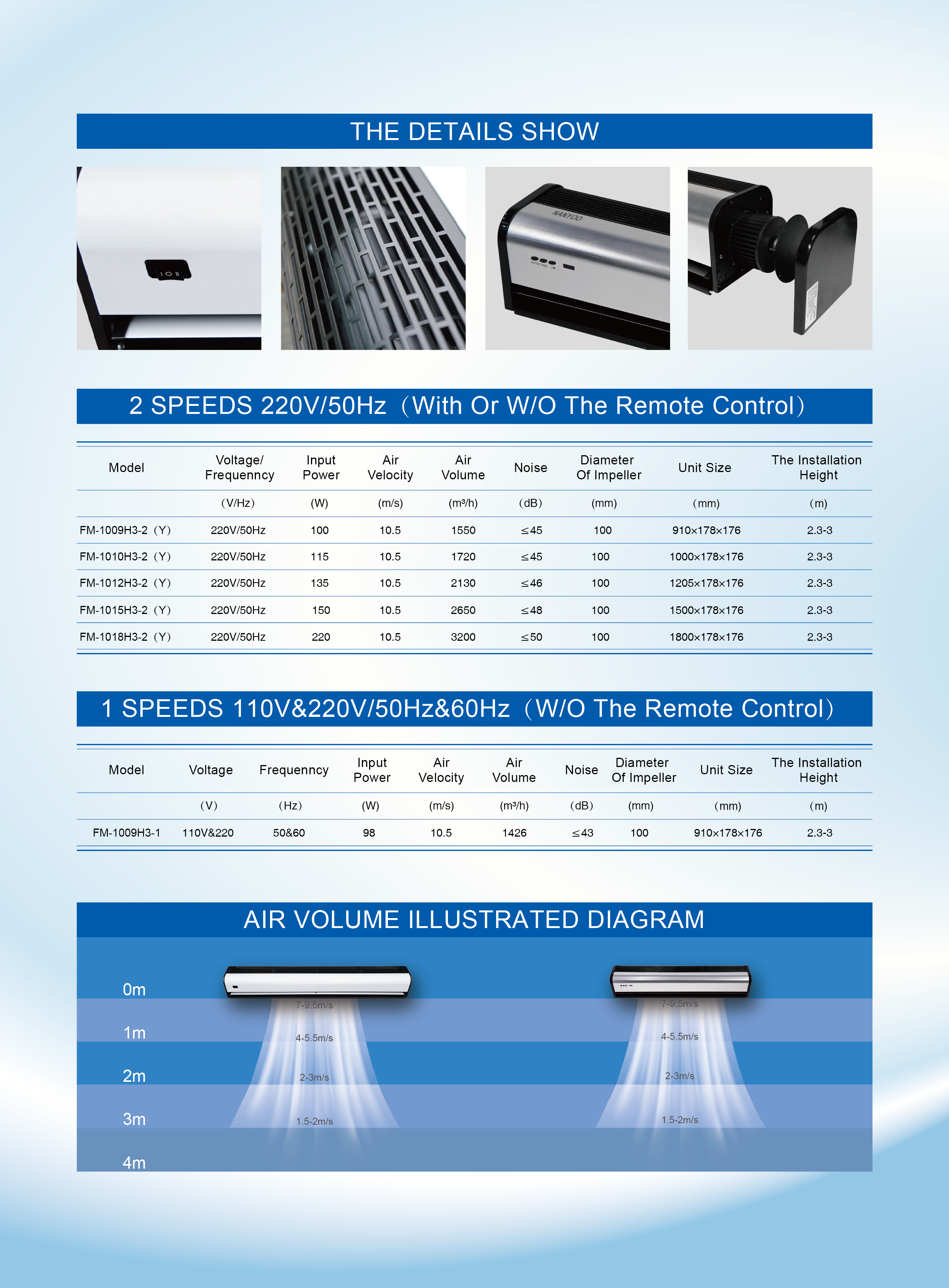

Air Velocity at Distance
- 0m: 7-9.5 m/s
- 1m: 4-5.5 m/s
- 2m: 2-3 m/s
- 3m: 1.5-2 m/s
Technical Specifications
Model Specifications (220V/50Hz)
| Model | Power (W) | Air Volume (m³/h) | Noise (dB) | Unit Size (mm) |
|---|---|---|---|---|
| FM-1009H3-2 (Y) | 100 | 1,550 | <45 | 910×178×176 |
| FM-1010H3-2 (Y) | 115 | 1,720 | <45 | 1000×178×176 |
| FM-1012H3-2 (Y) | 135 | 2,130 | ≤46 | 1205×178×176 |
| FM-1015H3-2 (Y) | 150 | 2,650 | ≤48 | 1500×178×176 |
| FM-1018H3-2 (Y) | 220 | 3,200 | ≤50 | 1800×178×176 |
Design & Construction

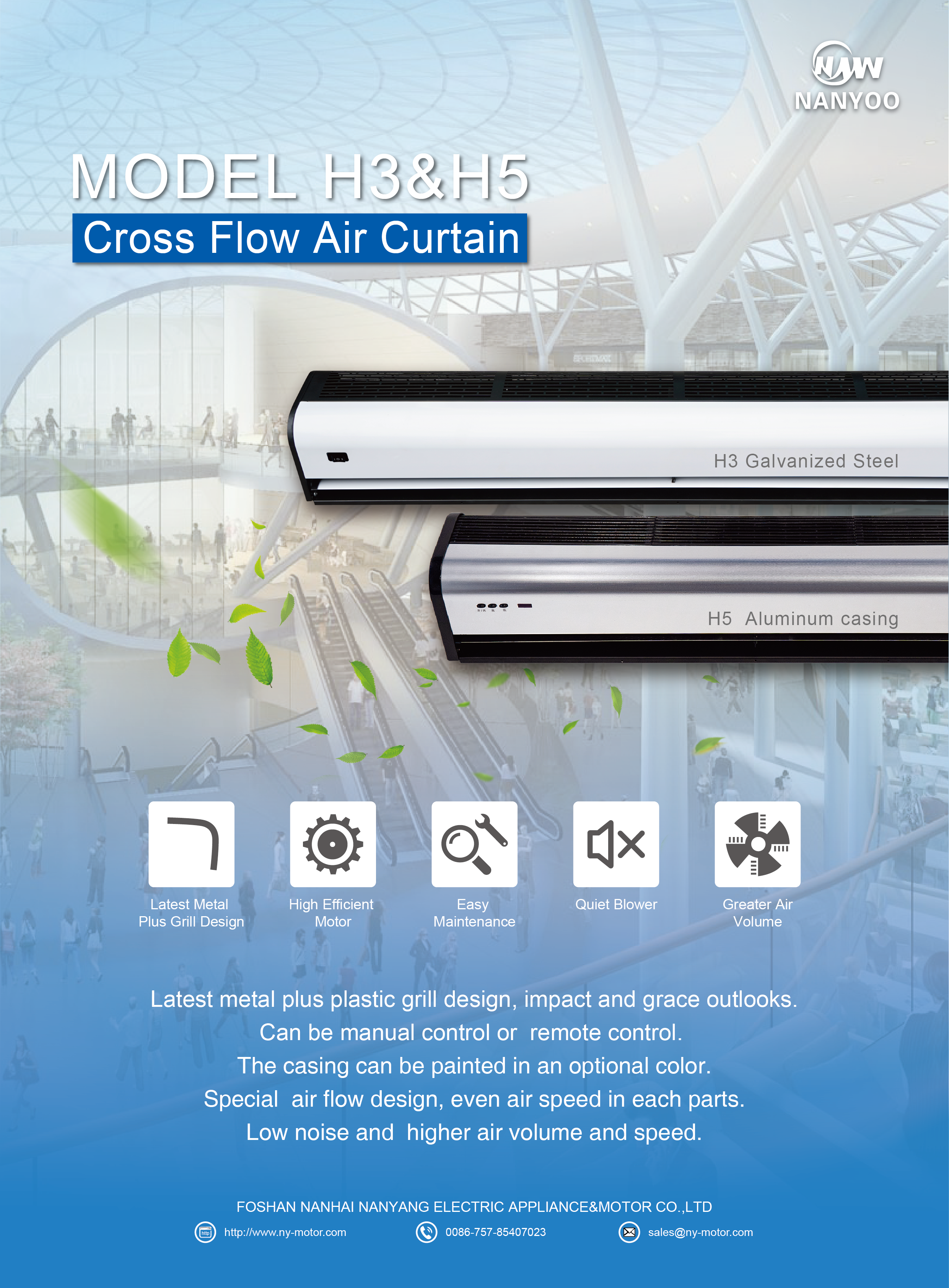

Casing Options
- H3 Model: Galvanized Steel
- H5 Model: Aluminum Casing
- Optional painted colors available
Key Features
Low NoiseHigh Air VolumeEasy MaintenanceQuiet Blower
- Impeller Diameter
- 100 mm
Control & Installation
- Control Options
- Manual ControlRemote Control2-Speed Settings
- Recommended Installation Height
- 2.3 - 3 meters
