Technical Specifications
Overview
High-Efficiency Corrugated Tank Production

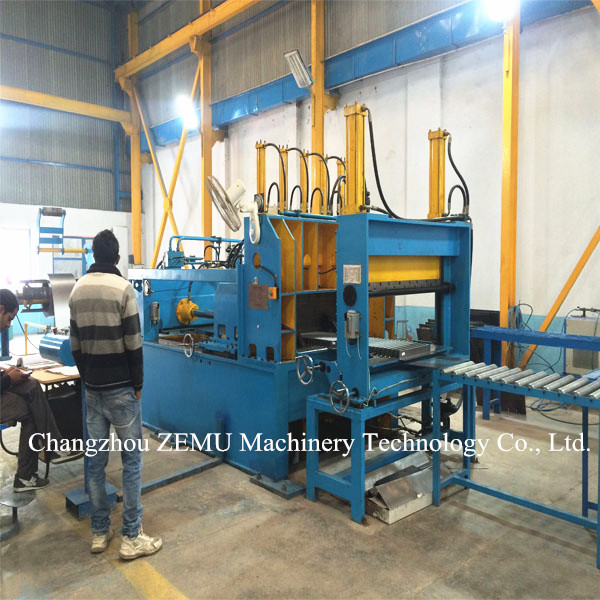

The BW1600 is a specialized machine designed for the automated production of corrugated tanks for power transformers. It streamlines the manufacturing process by integrating material feeding, forming, shearing, and edge folding into a single, efficient operation. With advanced hydraulic systems and PLC controls, this equipment ensures precision, consistency, and reduced labor requirements for industrial transformer production.
Technical Specifications
Forming Speed
3 fins/min
Minimum Speed
4 fins/min
Maximum Speed
Plate Dimensions
| Parameter | Range |
|---|---|
| Plate Width | 300mm - 1300mm |
| Plate Thickness | 0.5mm - 1.75mm |
| Corrugation Height | 50mm - 400mm |
| Corrugation Pitch | >= 45mm |
System Components
Integrated System Modules

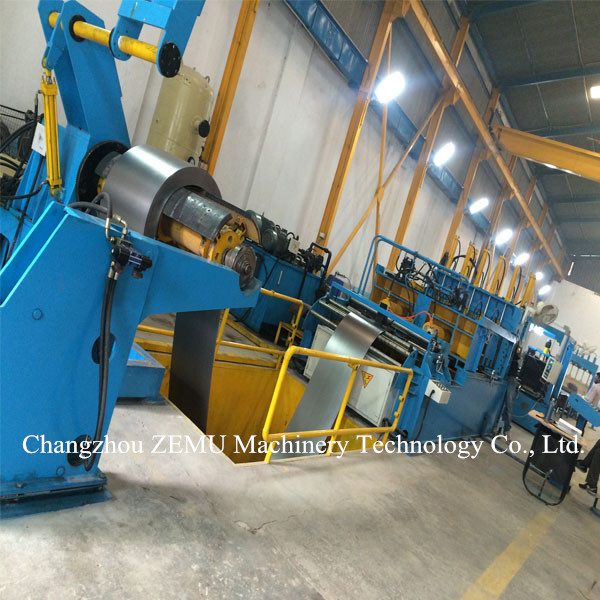

- Hydraulic Automatic Decoiler
- Transformer Tank Fin Forming Machine
- Hydraulic Transformer Tank Fin Shearing and Hemming Machine
- Automatic Transformer Tank Fin Welding Machine
- Hydraulic Station
- PLC Control System
Operational Features
- Automation & Control
- Automatic Hydraulic ControlPLC SystemHuman-Machine InterfaceLabor Saving
- Required Operators
- 1-2 persons
