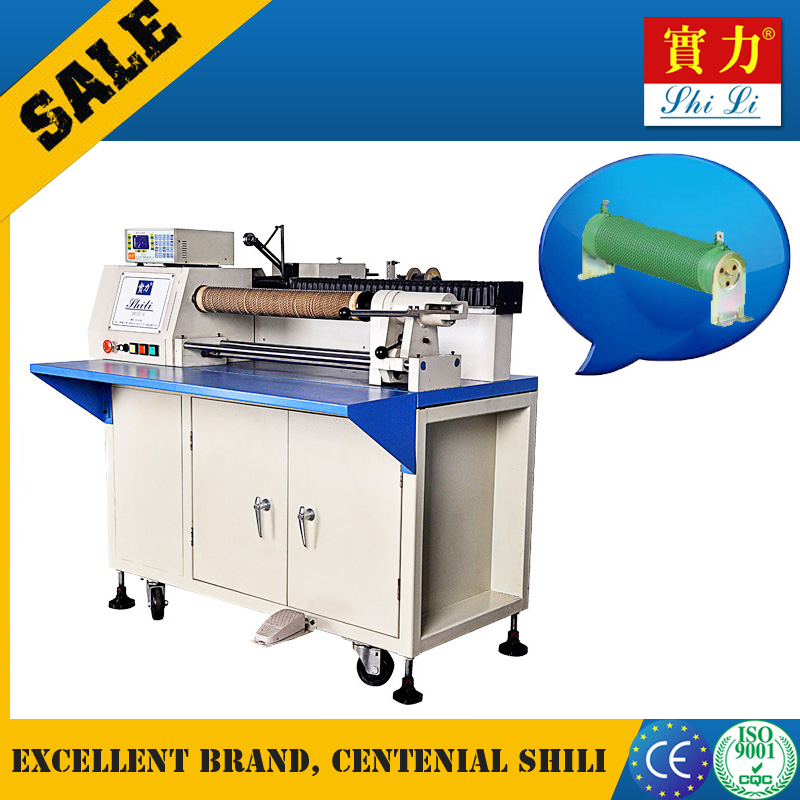

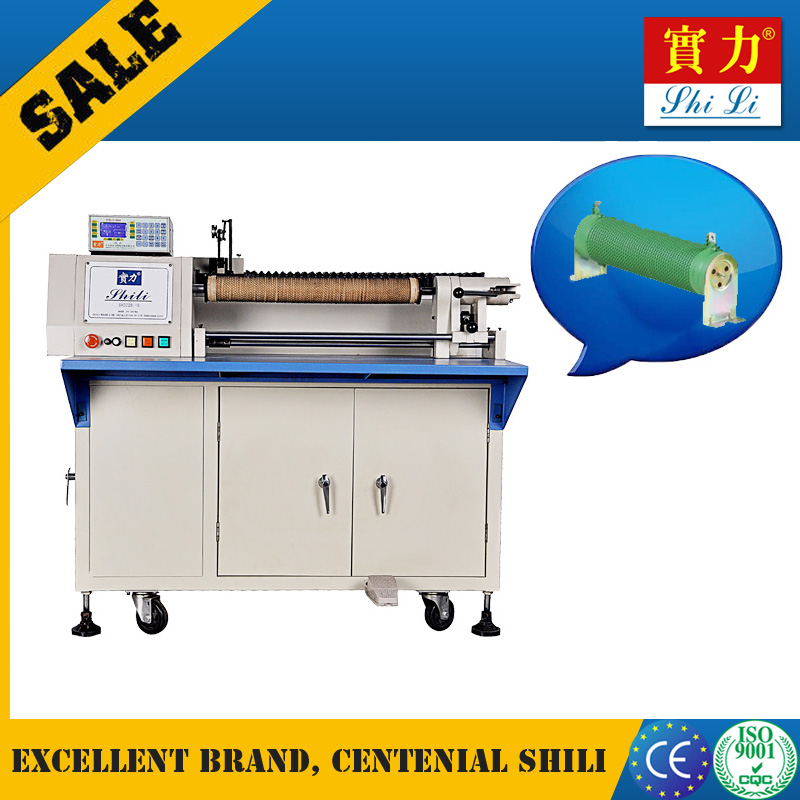

Corrugated Resistance Winding Machine
This machine utilizes a 32-bit controller for enhanced speed and reliability. It features a user-friendly interface with both Chinese and English display options and retains winding data after power failure.
Technical Specifications
Overview
High-Precision Corrugated Resistance Winding
This advanced winding machine utilizes a 32-bit controller chip for high reliability and consistent performance. Engineered with a cast body and four-spindle synchronous design, it ensures high-speed operation with minimal noise. It is an ideal solution for manufacturing elevator resistance distribution phase resistors and large-scale industrial components.
Key Features
Premium Components
- NSK/NTN Bearings (Japan)
- BANDO/GATES Belts (Japan)
- TBI Ball Screw (Taiwan)
- Taiwan Transducers
- Compliance & Quality
- CEISO 9001CQC
Technical Specifications
Performance Metrics
500 turn/min
Max Speed
220 mm
Loop Diameter
600 mm
Max Winder Width
330 kg
Net Weight
Dimensions & Power
| Parameter | Value |
|---|---|
| Machine Size | 1330x1130x1200mm |
| Package Size | 1430x1070x1450mm |
| Input Power | 220V 50Hz/60Hz |
