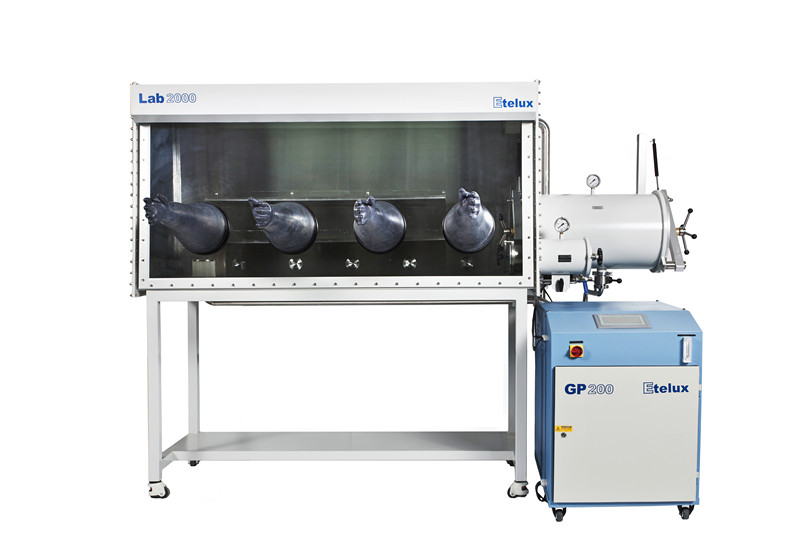

Controlled Atmosphere Glove Box with Gas Purification
This glove box maintains H2O and oxygen levels below 1ppm. It features a gas purification system and airtight enclosure for creating a controlled environment.
Technical Specifications
Overview
High-Performance Controlled Atmosphere System
This advanced glove box system provides a highly secure, controlled environment for handling sensitive materials requiring protection from oxygen and moisture. Designed with a robust stainless steel enclosure and integrated gas purification, it ensures maximum purity for research and industrial applications. The system features automated microprocessor control, real-time data logging, and versatile customization options to meet specific laboratory or manufacturing requirements.
Technical Specifications
Available Lengths
- 1,220
- 1,500
- 1,800
- 2,400
Available Widths
- 750
- 1,000
- 1,200
- Enclosure Material
- Stainless steel
- Window Material
- Tempered glass or polycarbonate
- Height
- 900 mm
Performance Metrics
Circulation Rate
60 CFM
Max Circulation
- Key Features
- Gas PurificationData LoggingPressure ControlSelf DiagnosticsVibration ControlAutomated Regeneration
System Controls
Automation Capabilities
- Automatic pressure control
- Self-start after power failure
- Password protection
- Oxygen and moisture readout
- Integrated vacuum oven/chamber controls
- Control System
- Microprocessor-based with LCD touch screen
