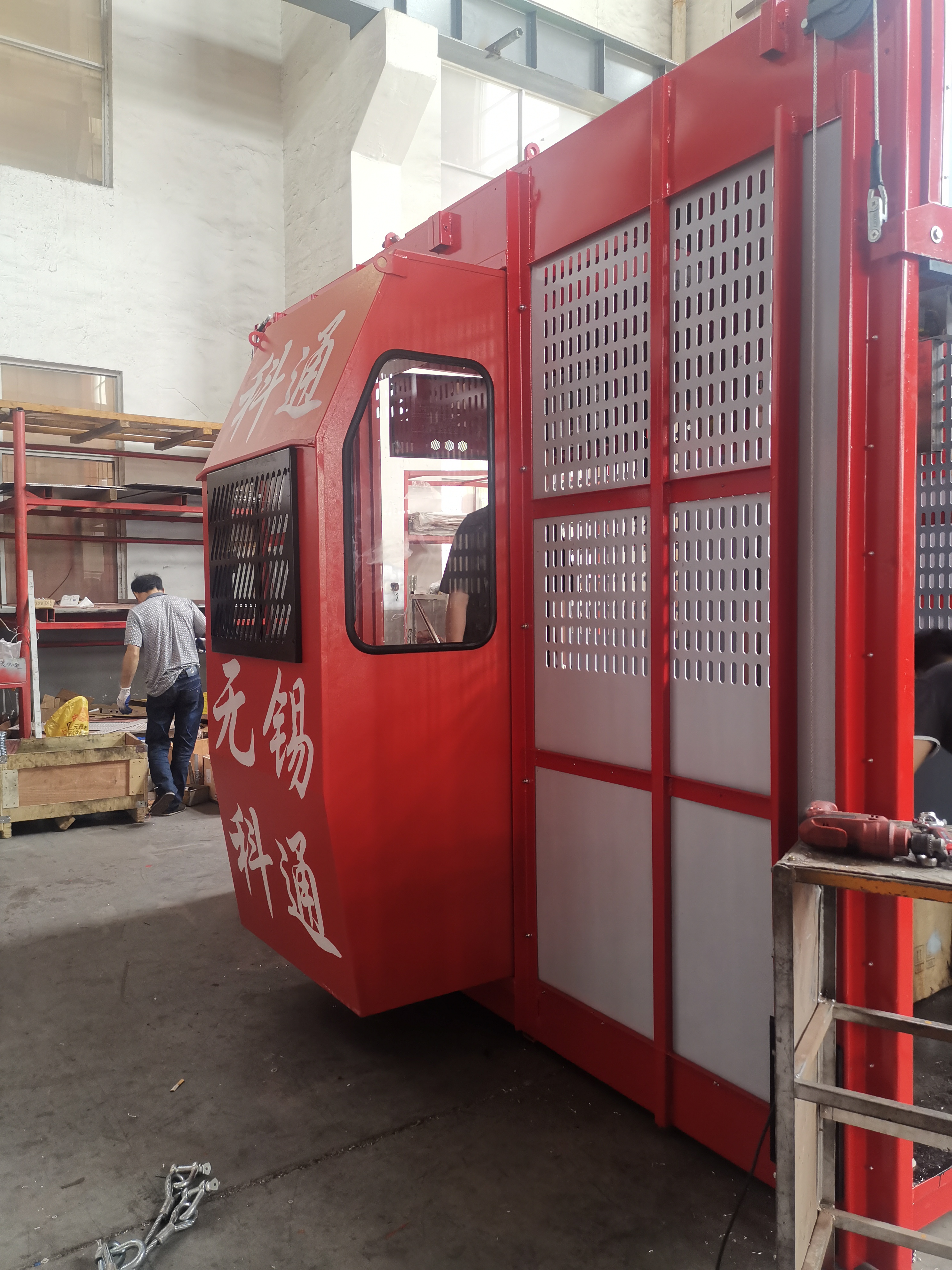

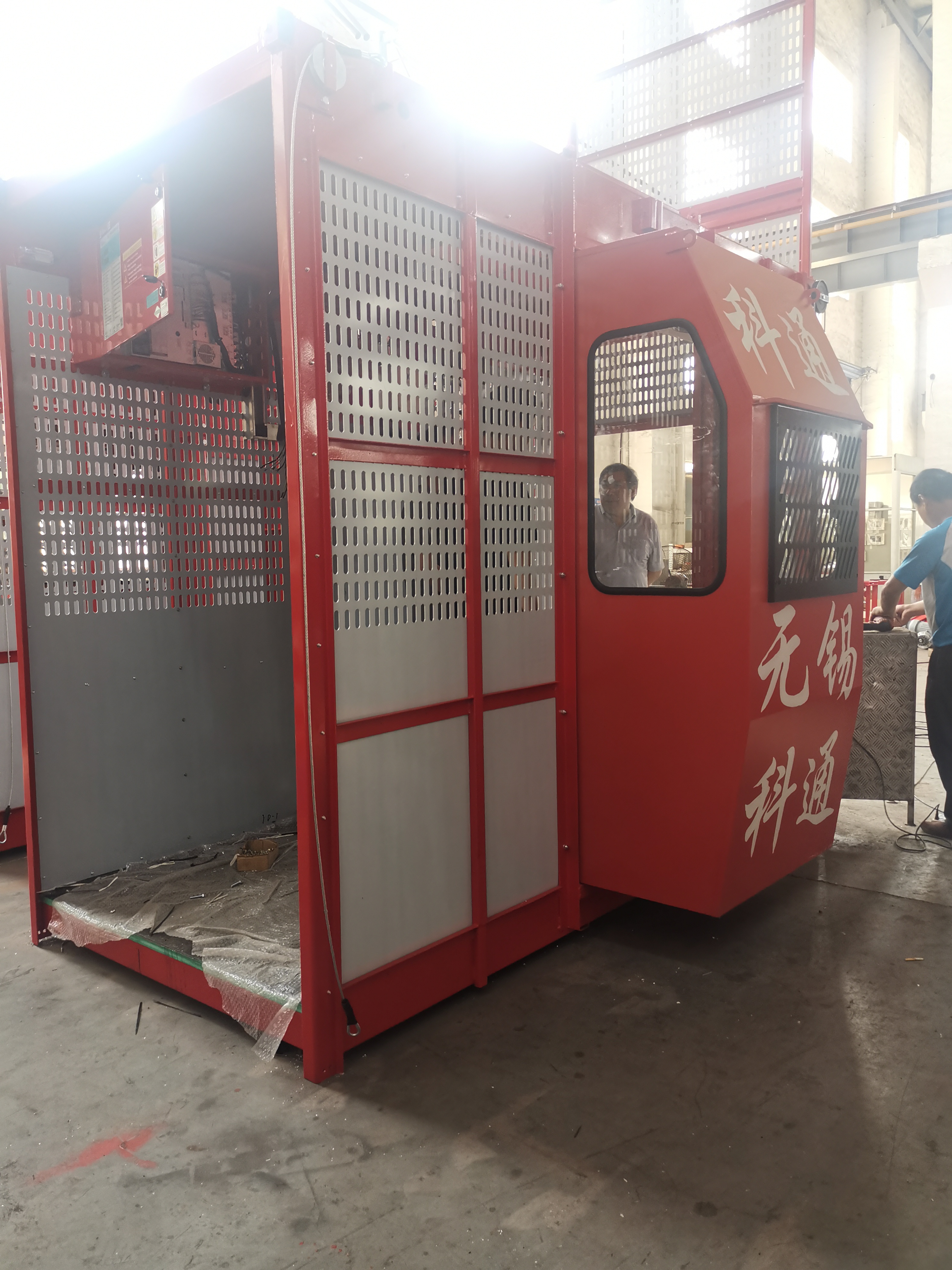

Construction Passenger and Freight Elevator
This elevator is designed for the vertical transportation of both goods and passengers at construction sites. It provides a safe and efficient way to move materials and personnel in high-rise construction projects.
Technical Specifications
Overview
Professional Vertical Transport Solution
This construction elevator is engineered for the efficient and safe transport of personnel, materials, and equipment on high-rise building sites and major infrastructure projects. Utilizing a motorized rack-and-pinion system, it ensures smooth vertical travel along mast tower sections. The design supports flexible configurations including single or double-caged setups to meet diverse site requirements.
Technical Specifications
Cage Configuration
Single-cagedDouble-caged
Mast Section Construction
| Configuration | Structure |
|---|---|
| Double-caged | 4 pieces of ø76 * 4 seamless steel pipes |
| Single-caged | 2 pieces of ø51 * 4 seamless steel pipes |
- Drive System
- Motorized rack-and-pinion system
- Control Modes
- Manual ControlComputer Automatic Positioning System
Safety & Features
Safety Features
- Emergency brakes
- Overload protection
- Wall-attaching device
- Self-erection and dismantling unit (Derrick)
- Safety Gear Model
- SAJ30-1.2
