Technical Specifications
Overview

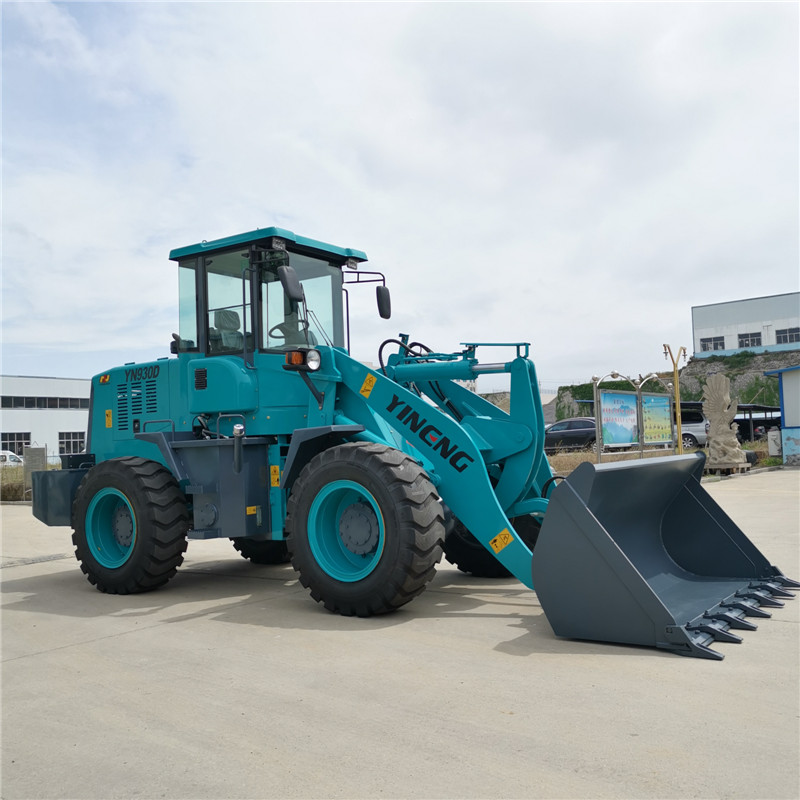

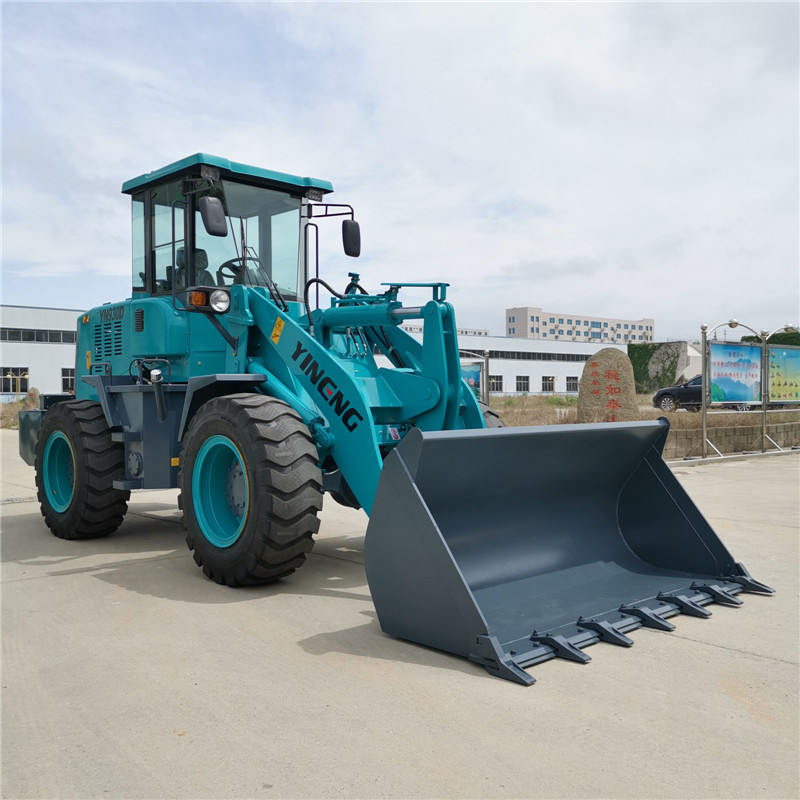

Professional Compact Wheel Loader
This high-performance compact wheel loader is engineered for demanding material handling tasks in construction, agricultural, and landscaping environments. With a 2000kg rated load and a powerful turbocharged 4-cylinder engine, it delivers excellent breakout force and efficiency in confined spaces. The unit features an advanced hydraulic system and a user-focused ergonomic design to maximize productivity and operator comfort on site.
Performance
Key Operational Metrics
2,000 kg
Rated Load
6,720 kg
Overall Weight
1.2 m3
Rated Bucket Capacity
3,600 mm
Max Dumping Height
Engine and Power
Engine Specifications
| Feature | Value |
|---|---|
| Model | YUNNEI 4102 |
| Type | Turbocharged 4-Cylinder |
| Rated Power | 70kW @ 2400r/min |
| Max Torque | 300 N.m |
Drive and Transmission
- Transmission Configuration
- 2 forward, 2 reverse gear shift
- Maximum Speed
- 23 km/h
Hydraulic and Braking
- Hydraulic Working Pressure
- 16 MPa
- Service Brake Type
- Air over hydraulic disc brake on 4 wheels
Dimensions
- Overall Dimensions (L x W x H)
- 6770 x 2205 x 2920 mm
