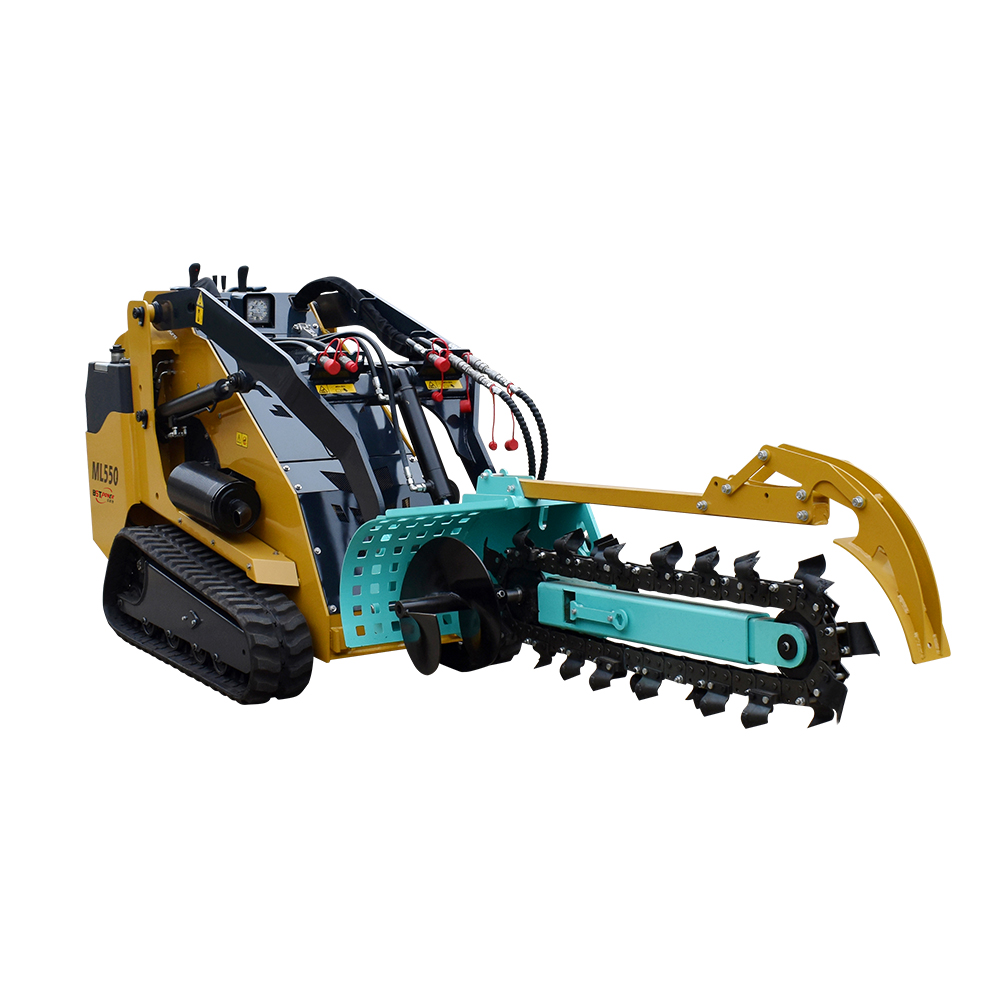

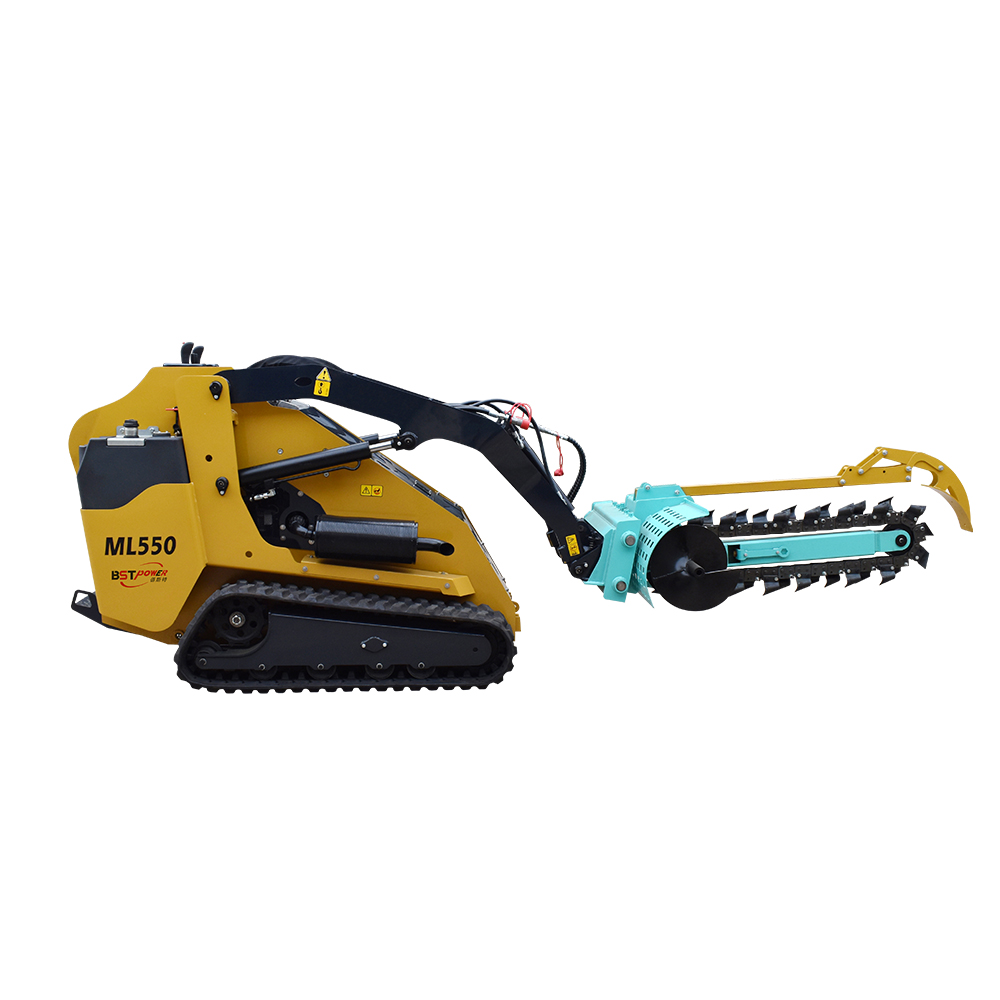

Compact Track Loader with Trencher Attachment
This compact track loader is designed for digging narrow trenches in various soil conditions. The track system ensures stability and maneuverability on uneven terrain.
Technical Specifications
Overview
Compact Multi-Purpose Loader
This compact track loader is designed for high-efficiency operation in narrow and confined spaces, such as urban infrastructure, warehouses, and landscaping sites. Featuring a powerful hydraulic system and an intuitive quick-change device, the machine supports over 300 practical attachments, including trenchers, buckets, and augers. Its tracked design ensures superior stability and traction, while the integrated electronic control system promotes safety and ease of use for operators.
Performance
Key Performance Metrics
381 kg
Rated Operating Capacity
1,088.6 kg
Tipping Load
Engine & Electrical
Engine Specifications
| Specification | Value |
|---|---|
| Horsepower (SAE Gross) | 35.7 kW |
| Maximum Governed RPM | 2600 RPM |
| Torque @ 2200 RPM | 143 Nm |
| Number of Cylinders | 4 |
| Displacement | 2.216 L |
Electrical System
- Alternator: 85 amps
- Battery: 12 V, 62 Ah
- Starter: 12 V, 2 kW Gear Reduction Type
Capacities
Fluid Capacities
| System | Capacity |
|---|---|
| Cooling System | 14 L |
| Fuel Tank | 65 L |
| Engine Oil with Filter | 10 L |
| Hydraulic Reservoir | 75 L |
| Hydraulic System | 62 L |
Features
- Key Features
- Tracked UndercarriageQuick-Change Attachment SystemElectronic Control SystemHydraulic Drive Safety SystemCompact Design
