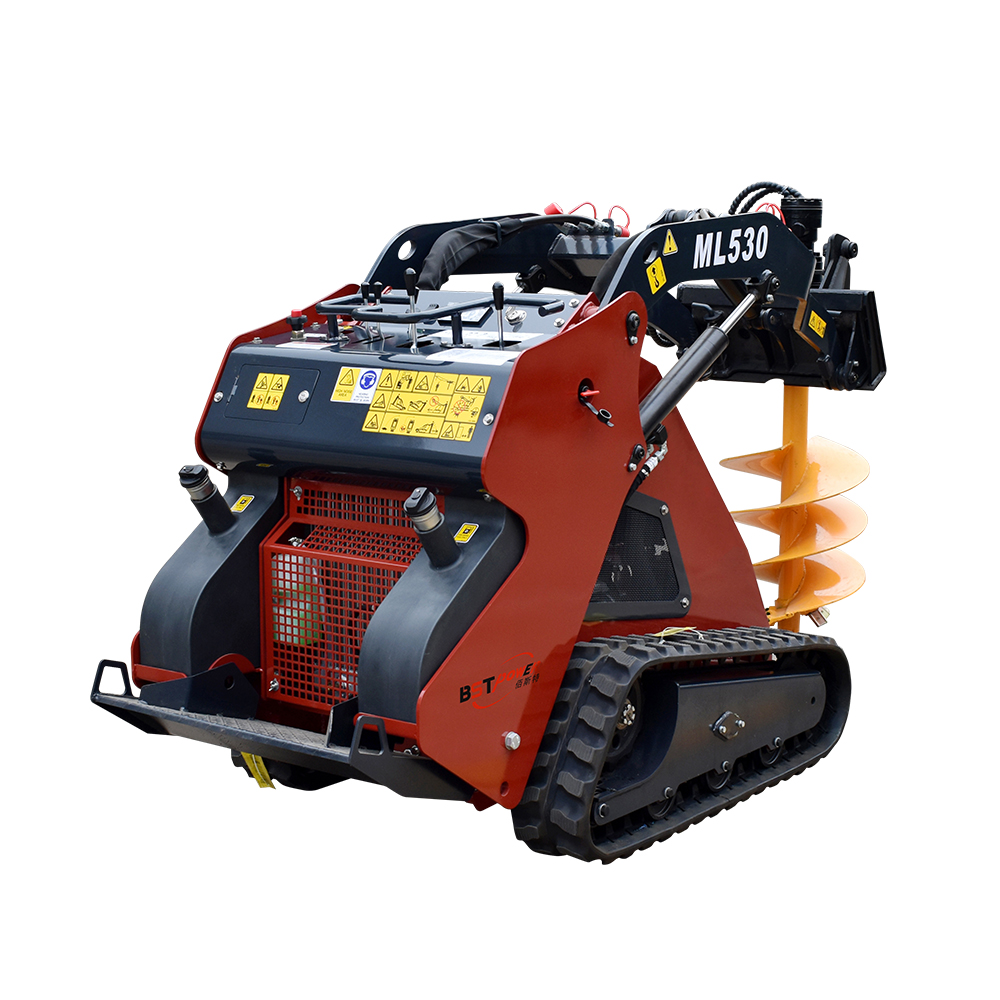

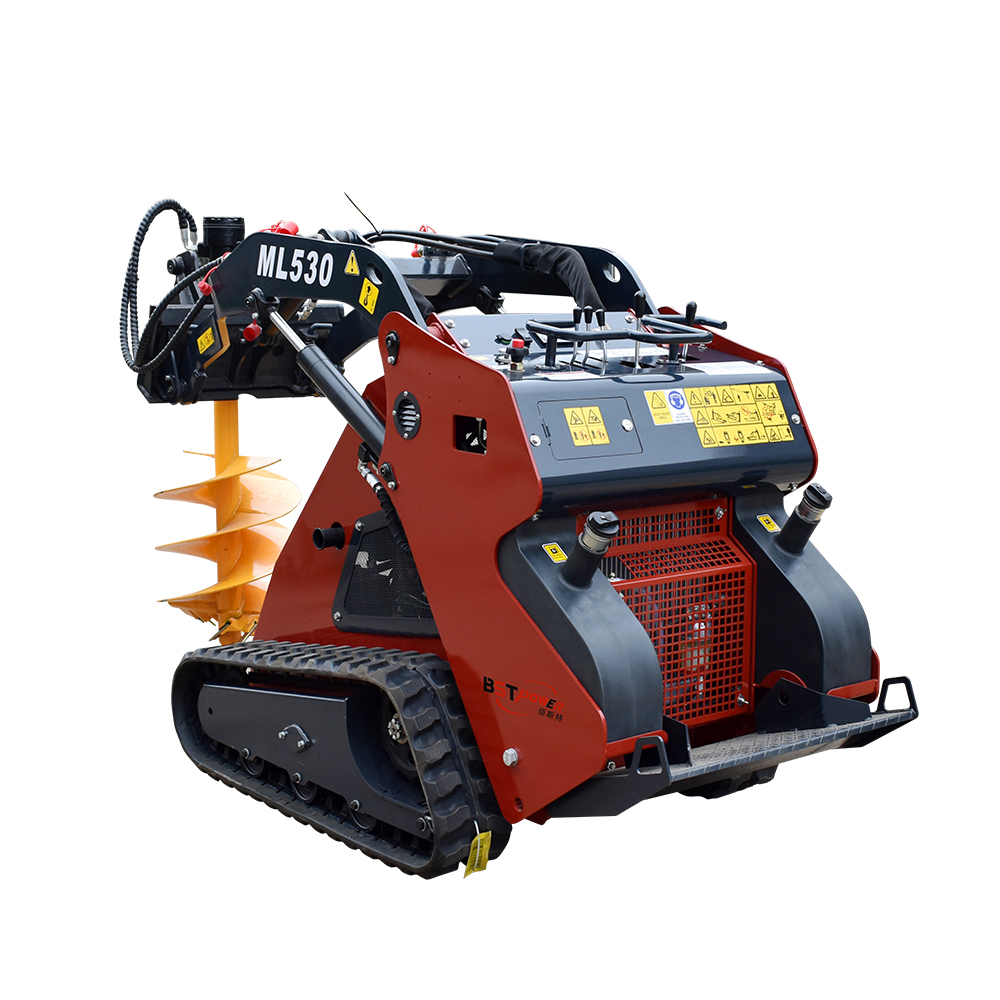

Compact Track Loader
This compact track loader is designed for versatile applications. Equipped with a robust hydraulic system, it offers high lifting capacity and efficient performance in tight spaces.
Technical Specifications
Overview
Versatile Compact Track Loader
This compact track loader is engineered for high performance in narrow, challenging environments such as urban infrastructure sites, warehouses, and workshops. Featuring a robust hydraulic system and compatibility with over 300 practical attachments, it offers exceptional multi-purpose utility for shoveling, stacking, lifting, and digging. Its design prioritizes operator efficiency, safety, and ease of use, allowing a single operator to achieve the productivity of a larger manual crew.
Performance
Operating Capacities
224 kg
Capacity (35%)
320 kg
Capacity (50%)
Engine & Electrical
Engine Specifications
| Parameter | Value |
|---|---|
| Make/Model | YANMAR 3TNV82A-BDSA2 |
| Horsepower (SAE Gross) | 22.2 kW |
| Max Governed RPM | 3000 RPM |
| Torque @ 2200 RPM | 82.4 Nm |
| Displacement | 1.331 L |
| Cylinders | 3 |
Electrical System
- 12V Battery (65 Ah)
- 40 Amp Belt Driven Alternator
- 1.7 kW Gear Reduction Starter
- Diesel-Compression Ignition
Capacities
Fluid Capacities
35 L
Fuel Tank
34 L
Hydraulic Reservoir
40 L
Hydraulic System
5.6 L
Cooling System
Features
- Key Advantages
- Narrow Turning RadiusQuick-Attach SystemElectronic Control SystemHydraulic Safety SystemStand-up OperationMulti-purpose Utility
