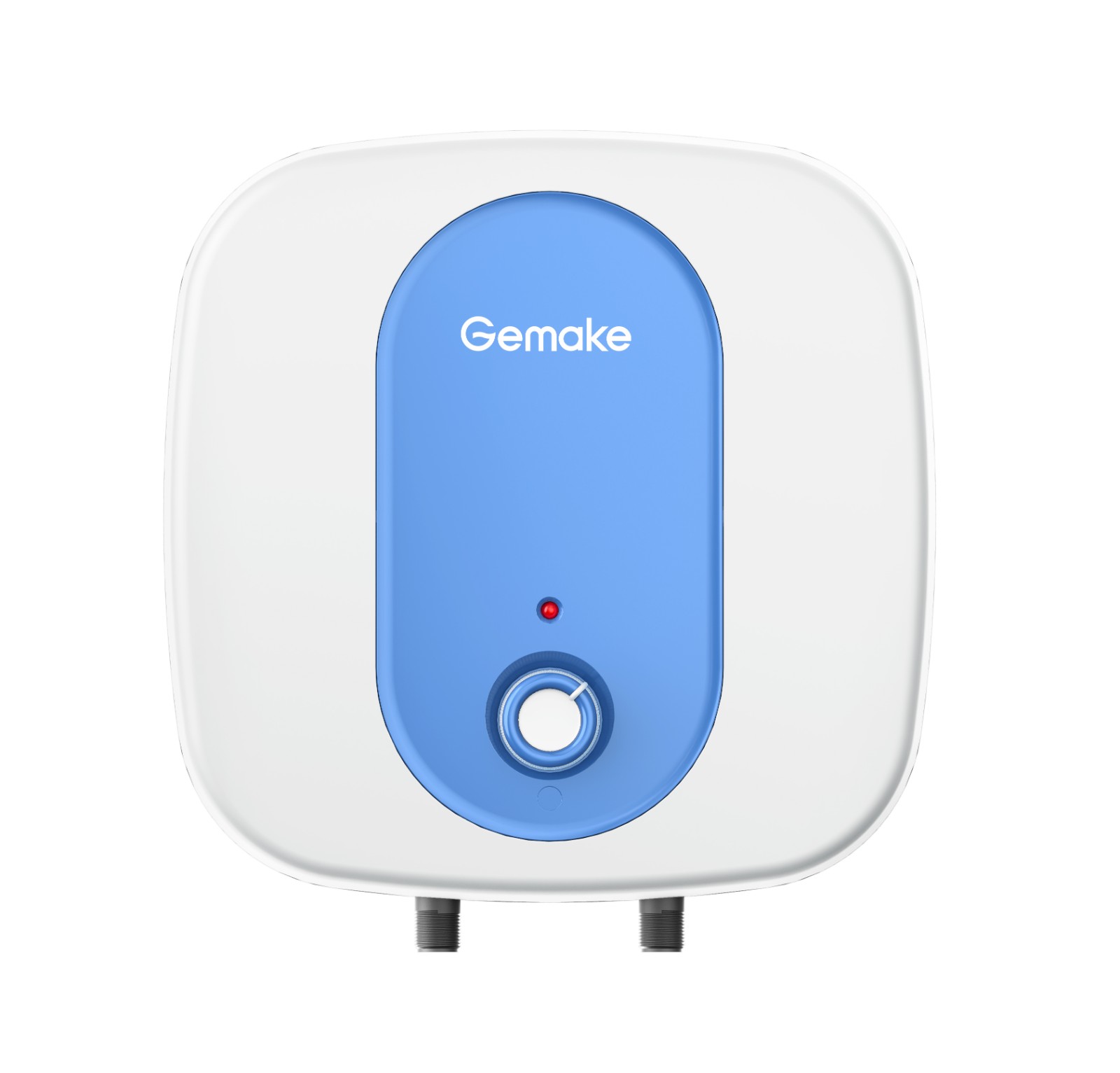

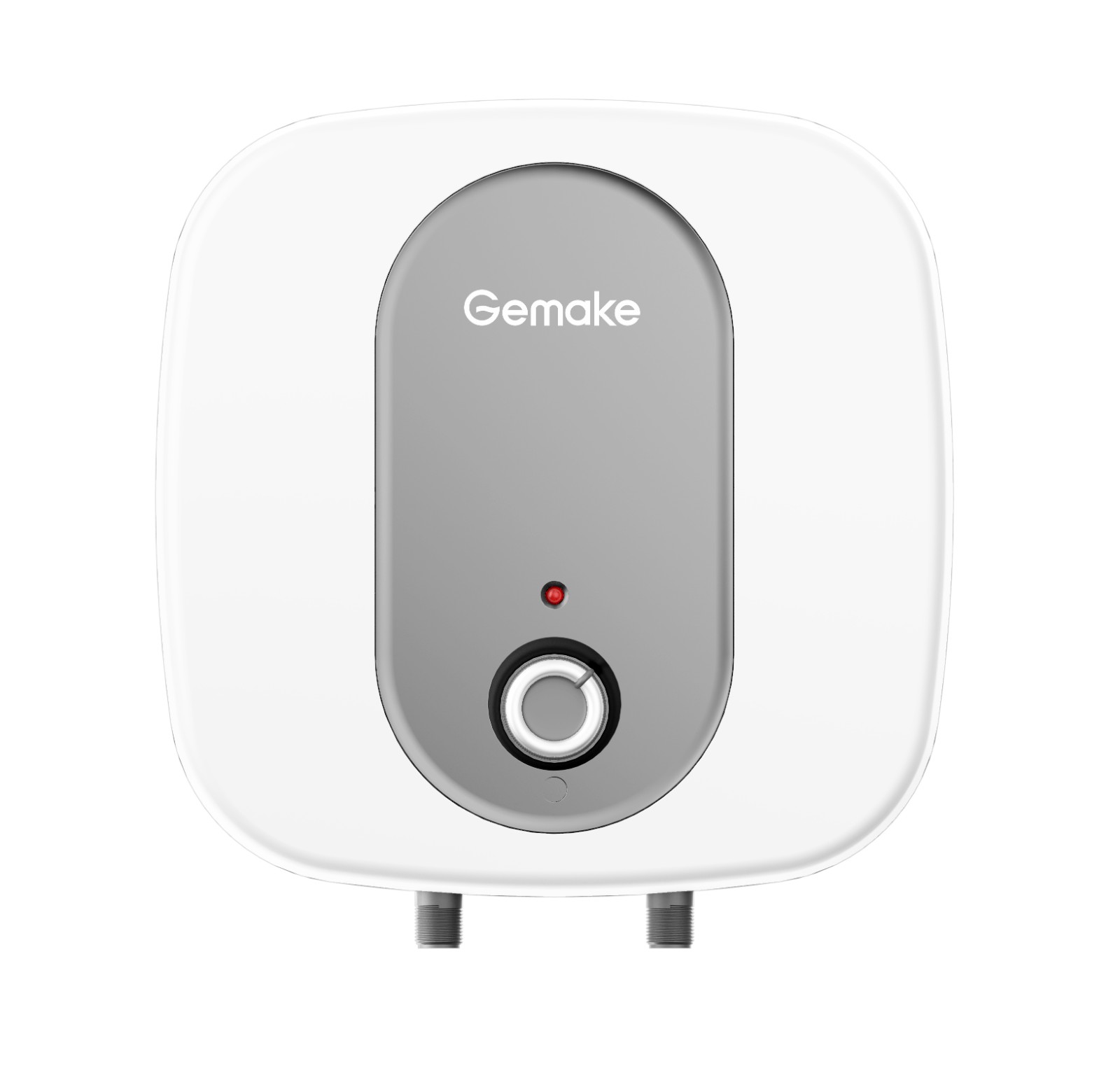

Compact Point-of-Use Electric Water Heater
This compact electric water heater is designed for point-of-use applications, providing hot water quickly and efficiently. Its small size makes it ideal for installation under sinks or in other tight spaces.
Technical Specifications
Product Overview
Compact Point-of-Use Heating Solution
This versatile electric water heater is engineered for efficient point-of-use applications, fitting easily under or above sinks in residential and commercial settings. It features a high impact resistant body and a specialized Blue Diamond inner tank designed to withstand high-pressure conditions. With adjustable temperature settings and multiple power options, it provides a reliable and customizable hot water supply for tight spaces.
Technical Specifications
Rated Power Options
- 500
- 1,000
- 1,500
- 2,000
- 2,500
- Rated Voltage
- 220-240V~110-120V~
- Rated Frequency
- 50Hz60Hz
Performance & Safety
Performance Metrics
Waterproof Degree
Design & Construction

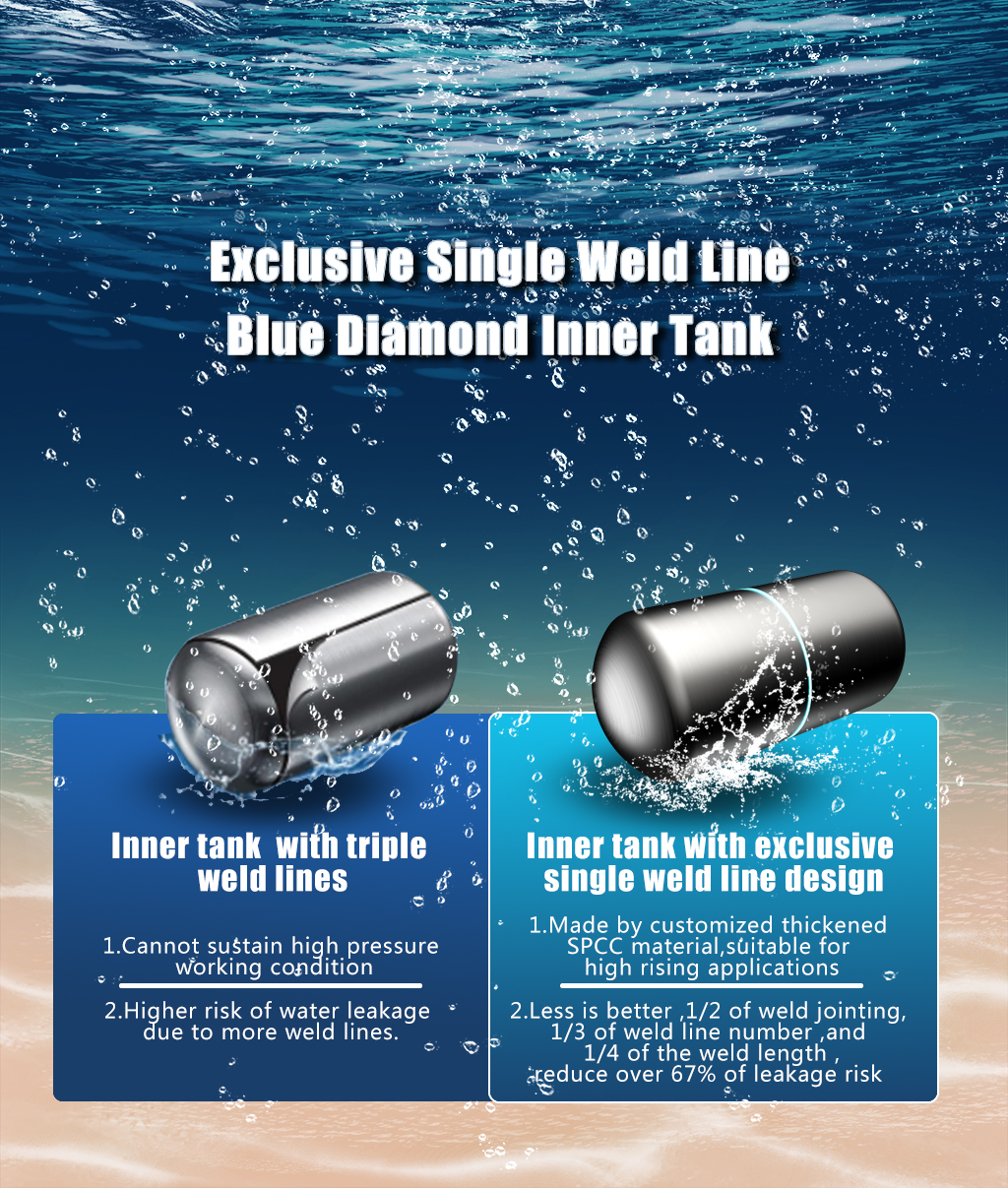

Blue Diamond Single Weld Line Tank
The inner tank is constructed from customized thickened SPCC material featuring an exclusive single weld line design. This advanced construction reduces weld jointing by 50% and weld length by 75%, resulting in a 67% reduction in leakage risk compared to traditional triple weld line tanks.
Key Features
- High impact resistant body
- Under or above sink installation
- Adjustable water temperature (Ambient to 75℃)
- Multiple color options for outer shell
- Customizable service panel colors
Tank Design Comparison
| Feature | Single Weld Line (Blue Diamond) | Triple Weld Line |
|---|---|---|
| Pressure Resistance | High Pressure Capable | Cannot sustain high pressure |
| Leakage Risk | Reduced by 67% | Higher risk |
| Weld Length | 1/4 of standard | Standard length |

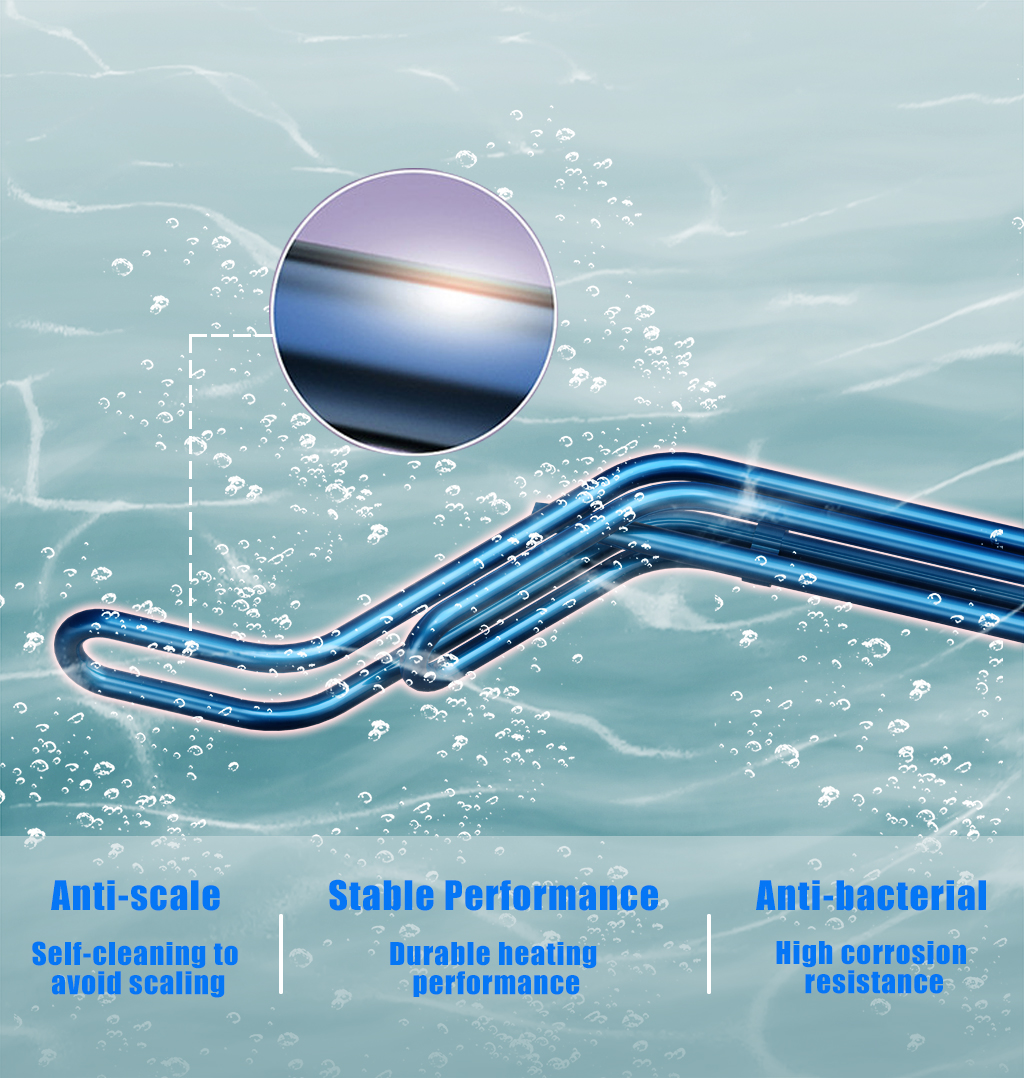

Heating Element
- Heating Element Properties
- Anti-scaleAnti-bacterialSelf-cleaningCorrosion Resistant
