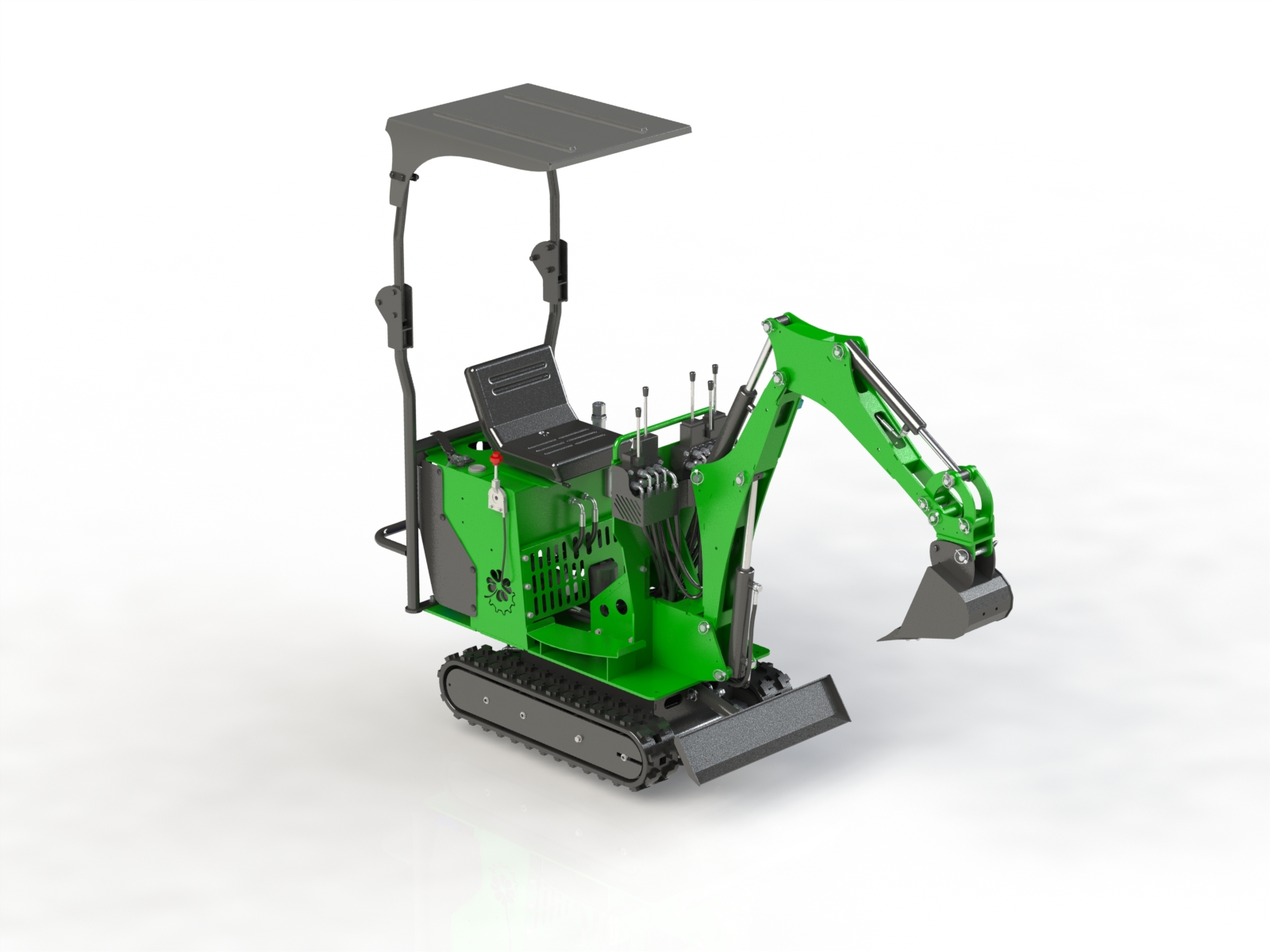

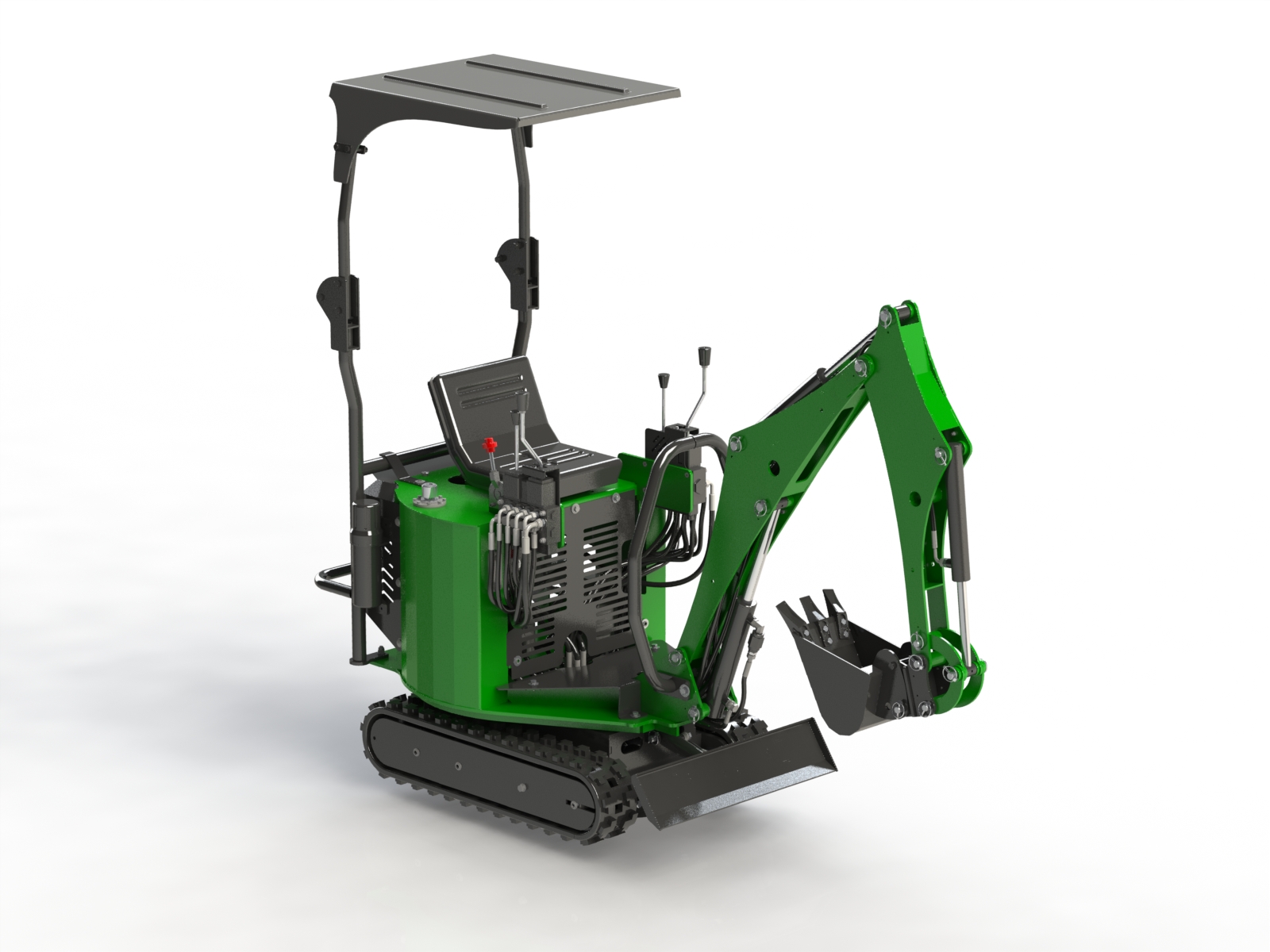

Compact Mini Excavator
This mini excavator is a compact machine designed for excavation and construction. Its narrow width and zero tail swing allow operation in confined spaces.
Technical Specifications
Product Overview
Compact Power for Narrow Access
This compact mini excavator is engineered for versatility in tight spaces, featuring a narrow 770mm width that allows it to pass through standard doorways and side gates with ease. Weighing only 500kg, it is highly portable and can be easily transported in a small trailer or pickup truck. With a powerful 9.5hp engine and a robust hydraulic system, it is an ideal solution for trenching, landscaping, and light construction tasks.
Dimensions & Portability
- Operating Weight
- 500 kg
- Machine Width
- 770 mm
Engine & Performance
Engine Specifications
- Kohler Petrol 9.5hp
- 12 Volt Electric Start
- Driver operated choke and throttle control
Hydraulic Performance
22 L/min
Hydraulic Flow
Operational Features
Capabilities
360 Degree SwingHydraulic Grader BladeRubber TracksSun Canopy
- Included Attachments
- 200mm Bucket400mm Bucket600mm BucketGrappleRipper
Warranty & Support
- Engine Warranty
- 3 Year Commercial Warranty
