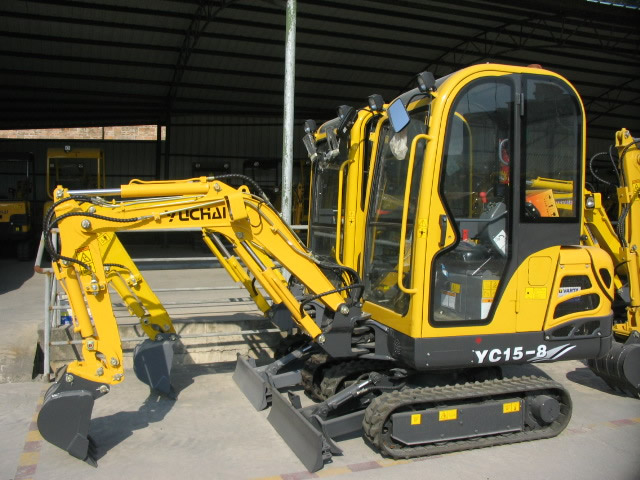

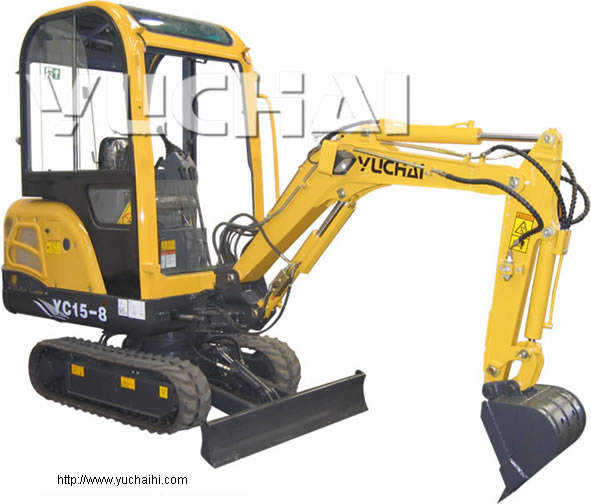

Compact Hydraulic Excavator
This compact excavator has an operating weight of 1625kg with a canopy or 1725kg with a cabin. It has a standard bucket capacity of 0.04m3 and width of 400mm.
Technical Specifications
Overview
Compact Hydraulic Excavator
This versatile compact excavator is engineered for high-performance digging and lifting in confined environments. With a robust hydraulic system and a high-stability design, it excels in landscaping, utility work, and general construction. The machine combines precise control with durability to deliver reliable efficiency on diverse terrains.
Performance Metrics
Maximum Digging Force
11 KN
Digging Force
- Travelling Speed
- 2 km/h
- Maximum Gradeability
- 58 %
Hydraulic System
- Operating Pressure
- 16 Mpa
- Pump Displacement Capacity
- 8.2 + 8.2 + 3.2 ml/r
Operating Features
- Platform Swing Speed
- 10-12 rpm
- Digging Arm Swing Angle
- Left 60° / Right 48°
- Maximum Traction
- 8.8 KN
