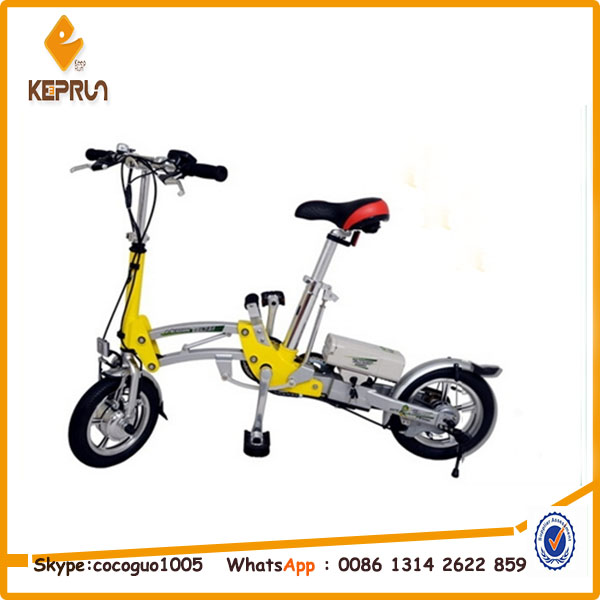

Compact Foldable Electric Bicycle
This compact electric bicycle features a foldable aluminum alloy frame and a brushless motor. It has a maximum speed of less than 30km/h and a range of 31-60 km per charge.
Technical Specifications
Overview
Versatile Urban Mobility
This Compact Foldable Electric Bicycle is engineered for the modern urban commuter, combining a lightweight aluminum alloy frame with a highly portable folding design. Featuring a brushless motor and a high-capacity lithium-ion battery, it offers a reliable range of up to 60km with pedal assistance. Its compact 12-inch wheels and impressive 180kg load capacity make it a robust yet agile solution for daily transportation and recreational riding.
Performance Metrics
Key Performance Stats
23 km/h
Max Speed
60 km
Max Range
180 kg
Max Loading
4 h
Charging Time
Electrical System
Available Battery Capacities
- 6.75Ah
- 9Ah
- Motor Type
- Brushless
- Motor Wattage
- < 200w
- System Voltage
- 36 V
- Battery Type
- Lithium Ion (Li-ion)
Physical Dimensions
Size Specifications
| State | Dimensions (L*W*H) |
|---|---|
| Spread Size | 1255*490*1090mm |
| Folding Size | 640*280*810mm |
- Wheel Size
- 12 inch
- Net Weight
- 16 kg
Chassis & Build
Available Colors
YellowSilverRed
- Frame Material
- Aluminum Alloy

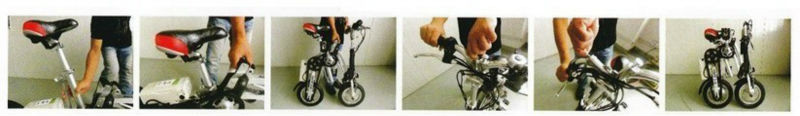

- Foldable Design
- Yes
Compliance & Range
Operational Range
- Pure Electric Power: 30-40km
- Pedal Assistant Mode: 50-60km
- Certifications
- CE
