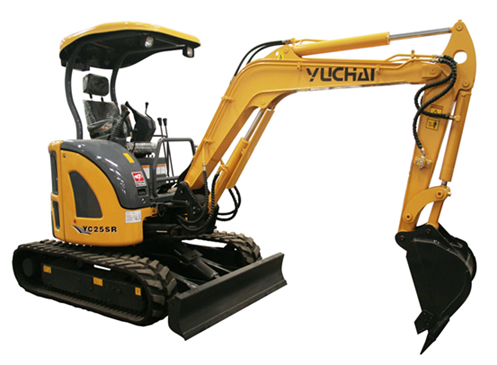

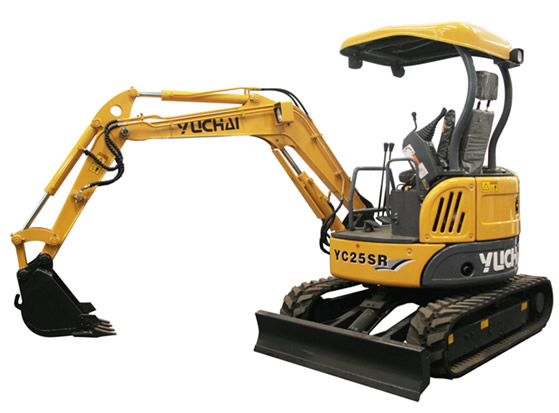

Compact Excavator with Zero Tail Swing
This compact excavator is designed for digging, lifting, and grading tasks in confined spaces. It features a zero tail swing radius for enhanced maneuverability and safety on various job sites.
Technical Specifications
Overview
Compact Power and Precision
This compact excavator features a zero tail swing radius, providing exceptional maneuverability and safety within confined urban or landscaping environments. Engineered for efficiency, the machine utilizes a robust hydraulic system to deliver high-performance digging and lifting capabilities. With a comfortable operator station and intuitive controls, it ensures enhanced productivity and ease of use during demanding earthmoving tasks.
Performance Metrics
Maximum Digging Force
21.5 kN
Digging Force
- Maximum Traction
- 28.1 kN
- Maximum Gradeability
- ≥58% (30°)
Hydraulic System
- Operating Hydraulic Pressure
- 20.6 Mpa
- Variable Displacement Pump Capacity
- 16.1+16.1+7+3.5 ml/r
Operational Capabilities
- Travelling Speed Range
- 2.6 - 4.1 km/h
- Platform Swing Speed
- 10.8 rpm
- Digging Arm Swing Angularity (Left/Right)
- 50°/80°
General Features
- Core Features
- Zero Tail SwingCompact DesignHydraulic Pilot ControlsRubber Track Undercarriage
