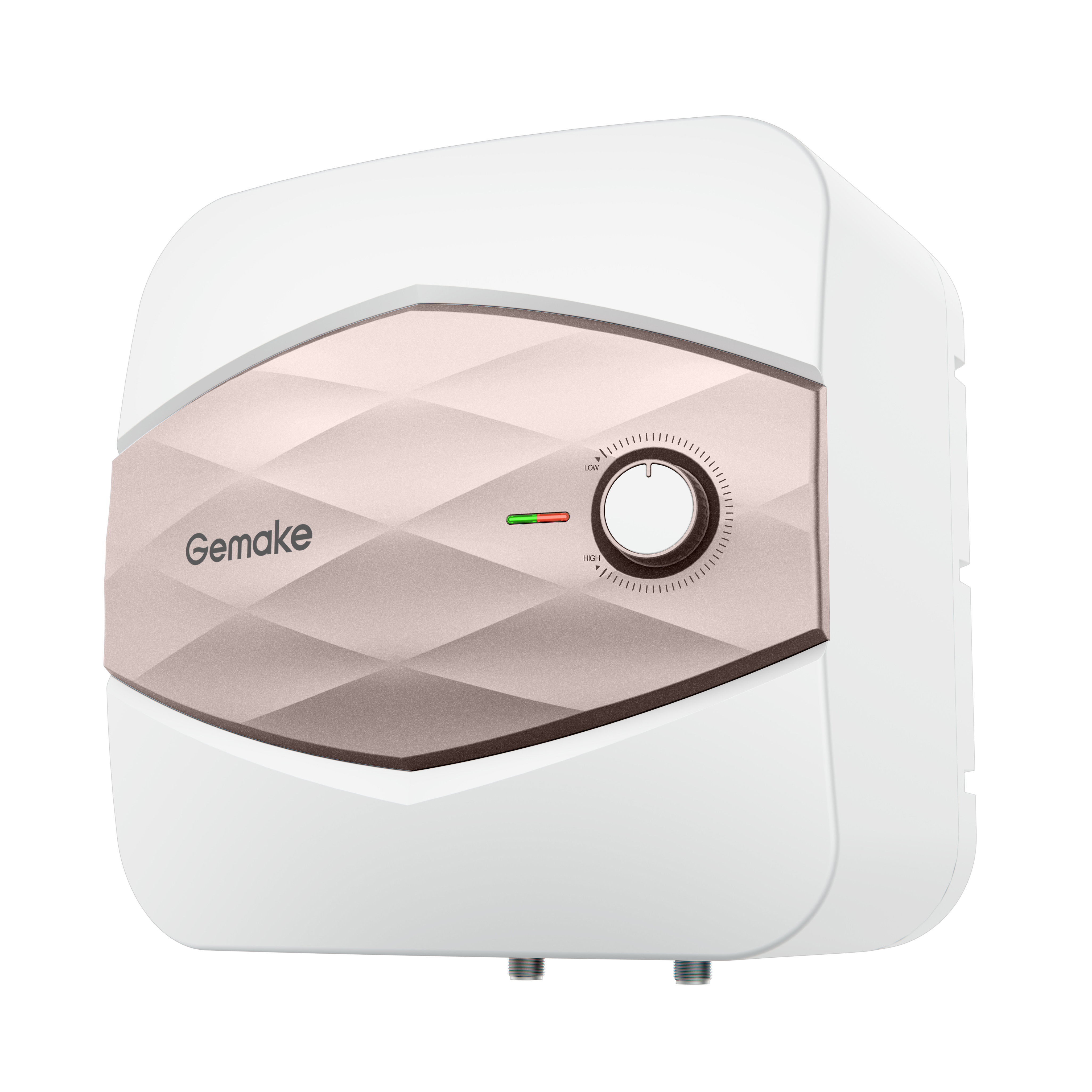

Compact Electric Water Heater
This compact electric water heater is designed for point-of-use applications, providing hot water quickly and efficiently. Its small size allows for installation in tight spaces, such as under sinks or in cabinets.
Technical Specifications
Product Overview
Compact Point-of-Use Heating
This compact electric water heater is designed for efficient, point-of-use applications, making it an ideal solution for under-sink or small-space installations. It features a durable, high-impact resistant ABS body and offers versatile installation options to suit various plumbing setups. With energy-saving performance and user-friendly temperature controls, it provides a reliable and convenient hot water source for single faucets or appliances.
Key Features
- Highlights
- 5-Star BEE Energy StandardHigh Impact Resistant ABS BodyUnder or Above Sink InstallationAnti-Scale TechnologyAnti-Bacterial Properties
Technical Specifications
Model Specifications
| Model | Capacity (L) | Dimensions (mm) | Net Weight (kg) |
|---|---|---|---|
| DSZFXX-LJ/6KH | 6 | 315×315×278 | 6.5 |
| DSZFXX-LJ/10KH | 10 | 365×365×293 | 8 |
| DSZFXX-LJ/15KH | 15 | 395×395×338 | 10 |
| DSZFXX-LJ/25KH | 25 | 445×445×383 | 12.5 |
| DSZFXX-LJ/30KH | 30 | 445×445×383 | 13.1 |
Design & Construction

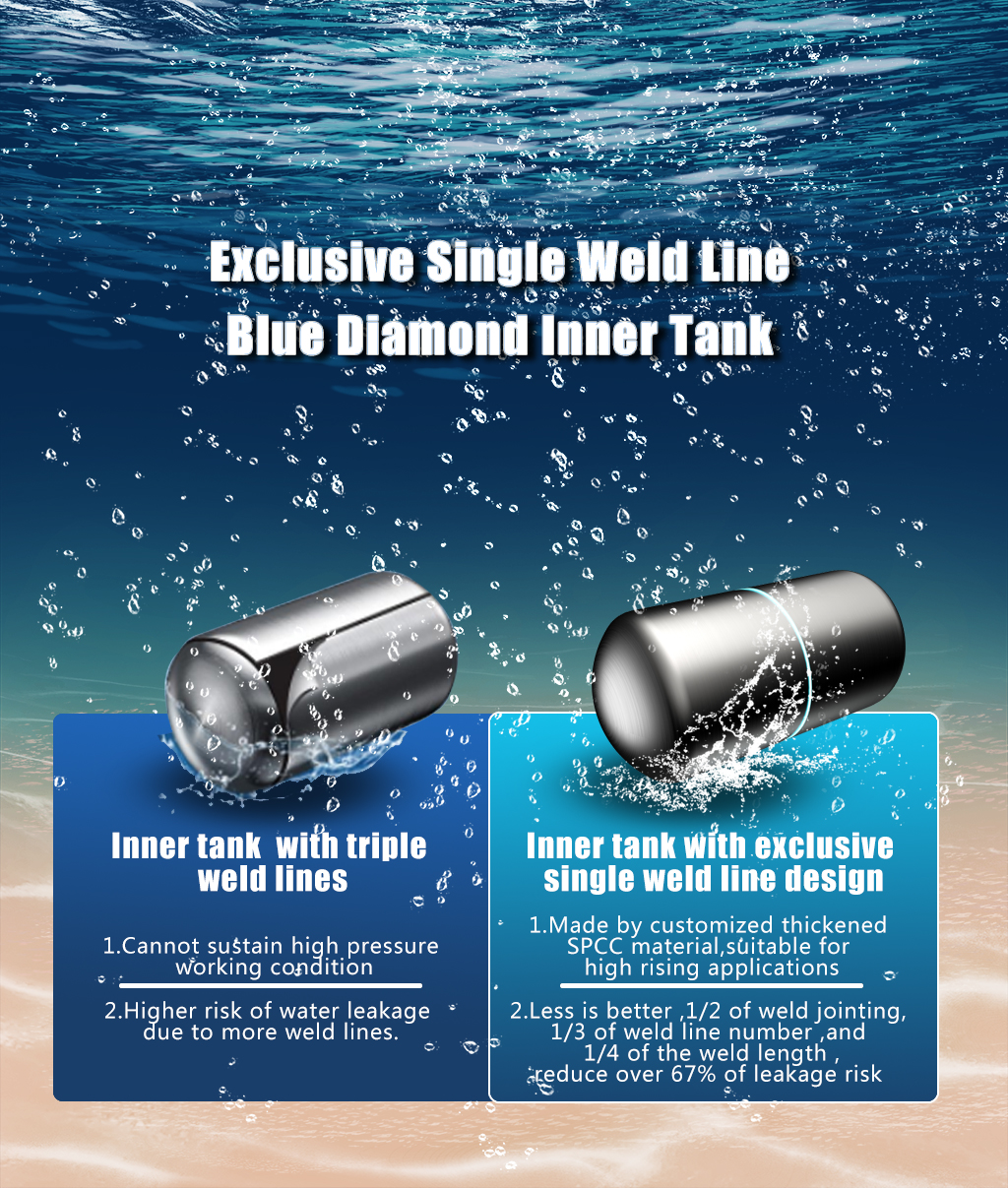

Blue Diamond Inner Tank
Constructed with customized thickened SPCC material, the inner tank utilizes an exclusive single weld line design. This advanced construction reduces the number of weld lines by 1/3 and weld length by 1/4 compared to traditional triple weld designs, resulting in over a 67% reduction in leakage risk and superior pressure-bearing capability.

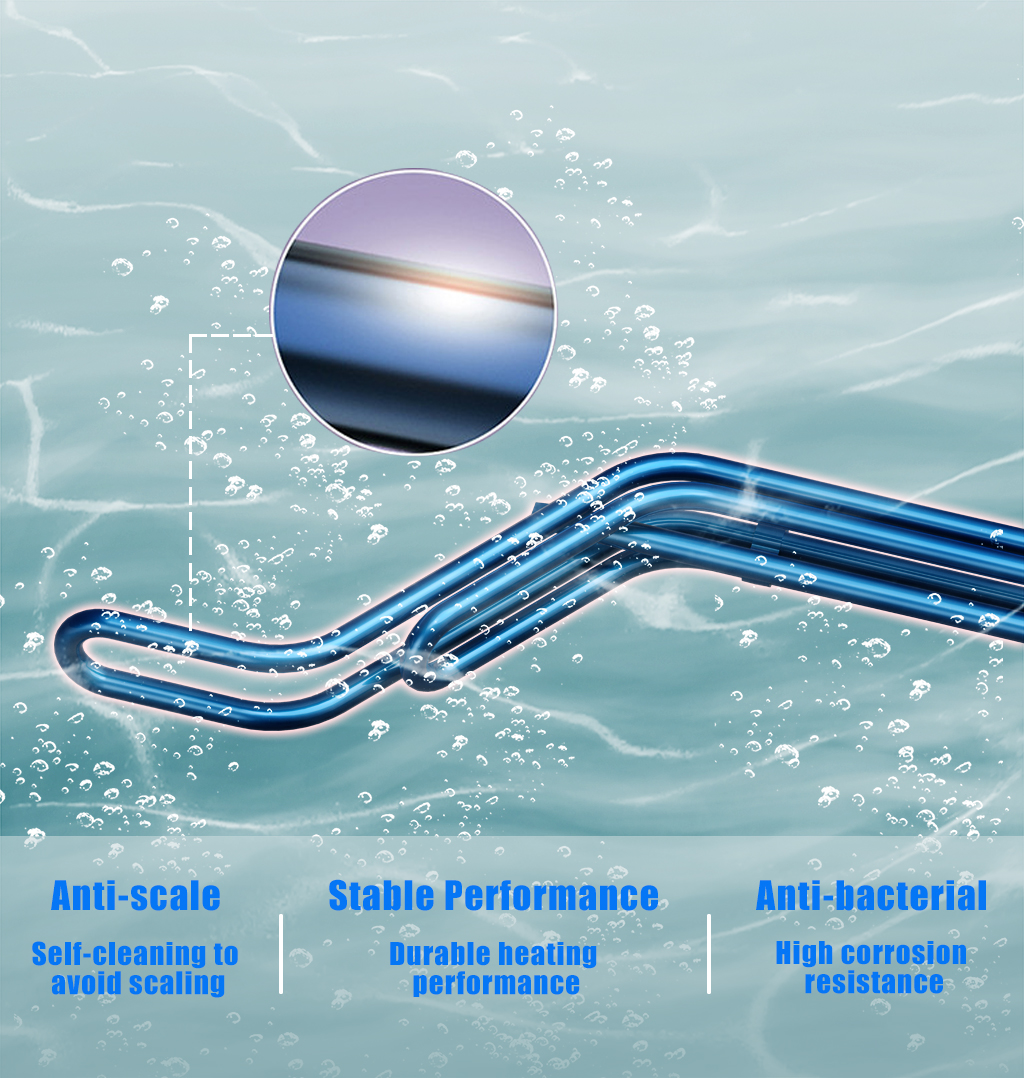

Heating Element
