Technical Specifications
Overview
Versatile Construction Mini Loader

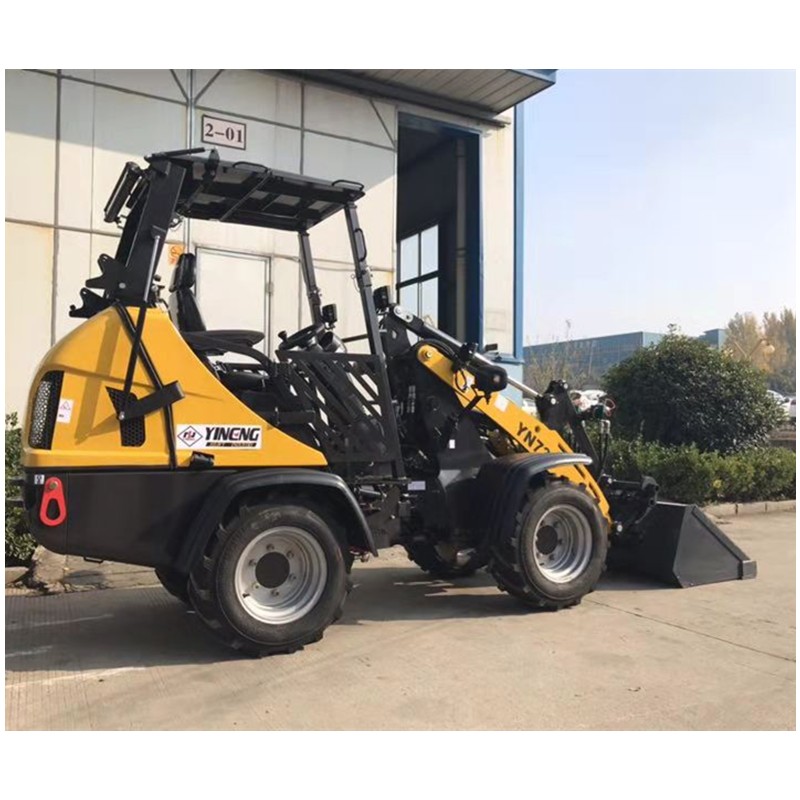

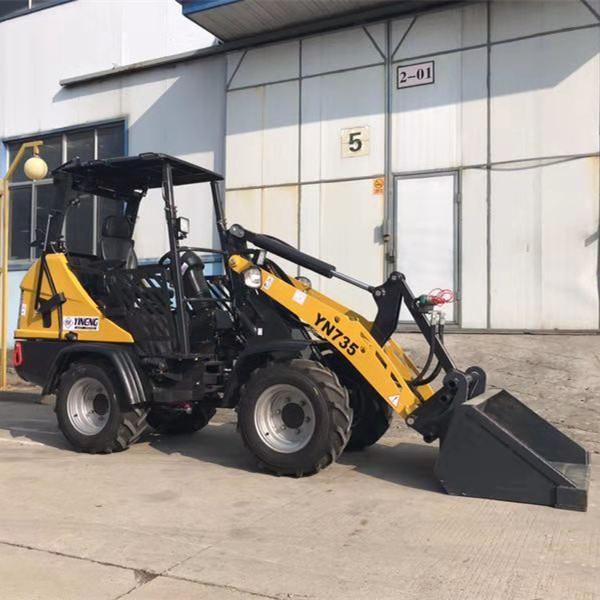

The YN735 is a high-performance mini loader engineered for material handling in confined environments. It features a robust Perkins engine and advanced Sauer-Danfoss hydraulics to deliver stable, flexible operation. With an articulated steering design and a 43-degree turning angle, it offers exceptional maneuverability for landscaping and urban construction projects.
Performance Metrics
Key Performance Metrics
1,320 kg
Rated Operating Capacity (Bucket)
2,888 mm
Max Dump Height
20 km/h
Max Travel Speed
Technical Specifications
Engine Details
- Engine: Perkins
- Rated Power: 26.4 kw
- Rated Speed: 2800 rpm
Dimensions & Weight
| Parameter | Value | Unit |
|---|---|---|
| Operating Weight | 2,510 | kg |
| Length | 4,139 | mm |
| Width | 1,080 | mm |
| Height | 2,230 | mm |
| Wheel Base | 1,502 | mm |
- Operational Specs
- Articulated Steering43 Degree Turning AngleHydraulic Arm Damping SystemMulti-integrated Joystick
