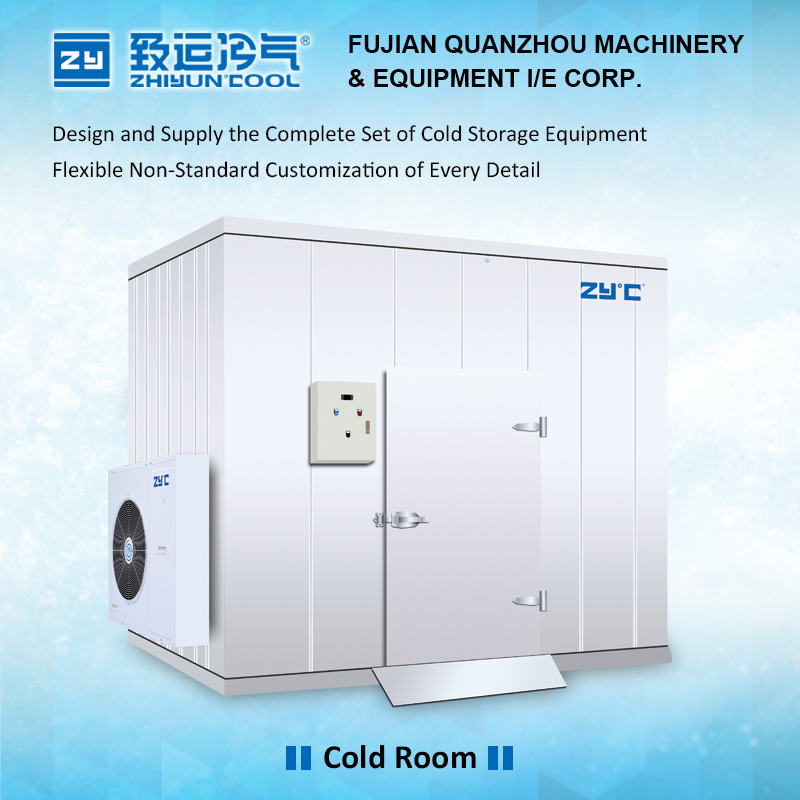

Commercial Refrigeration Cold Room
This cold room is designed for industrial and commercial refrigeration storage. It is suitable for storing various temperature-sensitive goods, ensuring optimal preservation and longevity.
Technical Specifications
Product Overview
Professional Cold Storage Solution
This industrial-grade cold storage system is engineered for high-efficiency thermal preservation and reliable temperature control. The complete solution integrates advanced polyurethane insulation panels with high-performance refrigeration units and evaporators to ensure optimal storage conditions. Designed for versatility, it is suitable for a wide range of applications including food preservation, medical storage, and industrial cooling requirements.

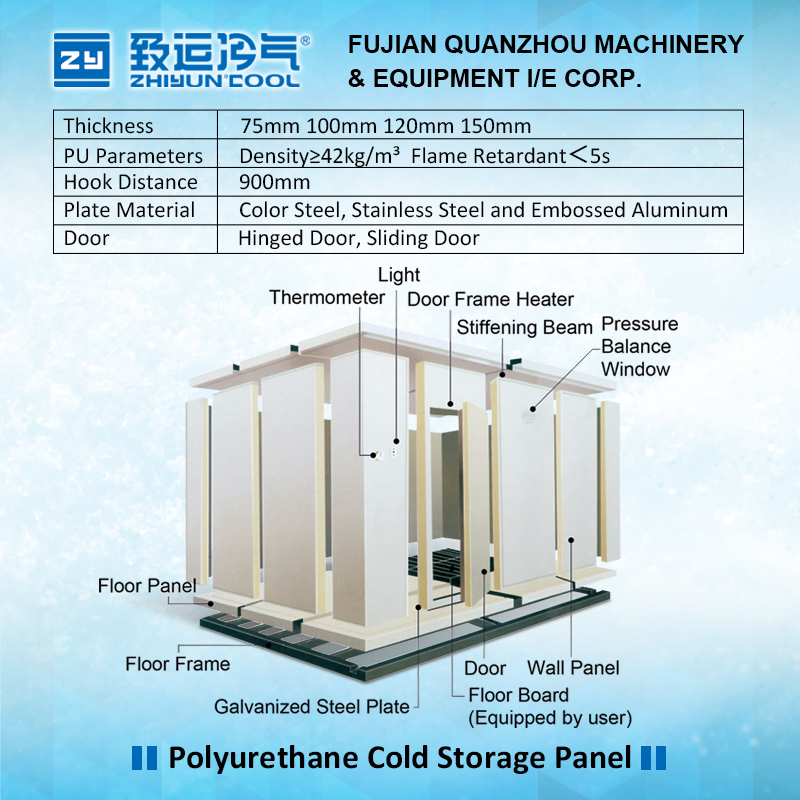

Core Components
Included Components
- Polyurethane heat preservation panels
- Refrigeration condensing units
- Evaporators
- Floor panels and frame
- Door frame heater and stiffening beams
- Pressure balance window
- Suitable Applications
- Fruit & Vegetable PreservationMeat FreezingSeafood Quick FreezingMedicine StorageIce MakingWorkshop Cooling
Insulation Panels
Available Thicknesses
- 75
- 100
- 120
- 150
Technical Specifications
42 kg/m³
Minimum Density
900 mm
Hook Distance
5 s
Flame Retardant Rating
Material Options
Color SteelStainless SteelEmbossed Aluminum
Available Door Types
Hinged DoorSliding Door
Refrigeration System
Compressor Compatibility
- Scroll Type
- Piston Type
- Screw Type
Performance Highlights
- Fast refrigeration speed
- Low noise and vibration
- Energy saving operation
- High reliability and long service life
