Commercial Bean to Cup Coffee Machine with Touchscreen
This commercial bean to cup coffee machine features a user-friendly touchscreen interface for selecting various coffee beverages. The machine incorporates an integrated bean hopper and grinder, ensuring fresh coffee with every cup.
Technical Specifications
Product Overview
Premium Beverage Solution

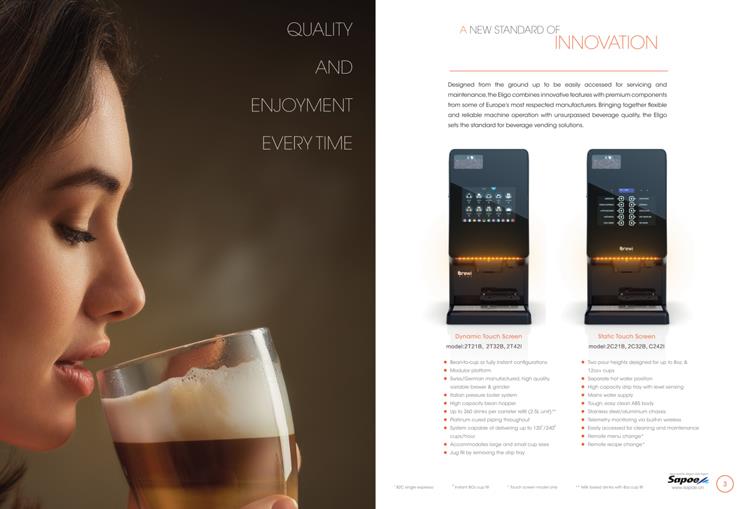

The Eligo is an elegant, compact bean-to-cup beverage solution featuring a curved design and a sophisticated touchscreen interface. Engineered for reliability and ease of maintenance, it combines high-quality European components like Italian pressure boilers and Swiss grinders to deliver exceptional drink quality. With integrated telemetry and remote management capabilities, it is designed to meet the rigorous demands of commercial environments while providing a user-friendly experience.
Performance Metrics
Key Performance Metrics
240 cups
Max Cups per Hour
1.7 kg
Bean Hopper Capacity
300 espressos
Waste Bin Capacity
Technical Specifications
- Electrical Requirements
- 220-240V 50/60Hz, 12.5A
- Power Consumption
- 2.4 kW
- Boiler Volume
- 0.6 l
Water & Plumbing
Water Quality Requirements
- Hardness: Max 70mg CaO per liter (7dH-12dH)
- Chloride content: Max 100mg/l
- Water Supply Inlet
- 3/4" BSP inlet with 10mm push-fit hose
- Operating Water Pressure
- 0.05-0.6MPa (0.5-6 bar)
Design & Interface

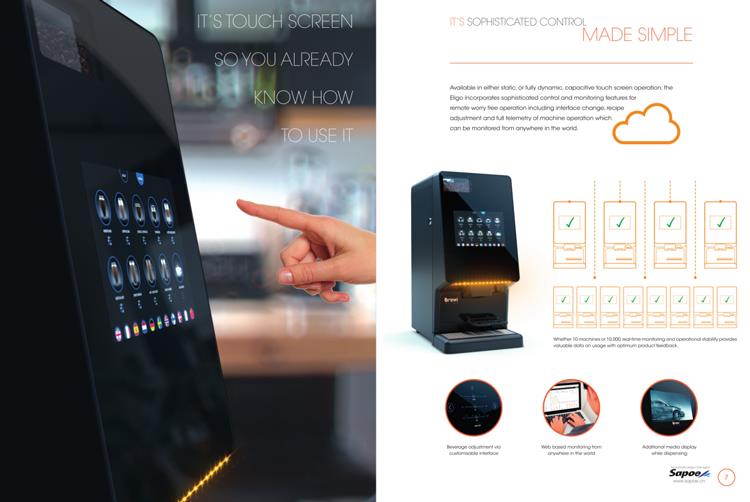

User Interface
Dynamic Touch ScreenStatic Capacitive TouchMedia Advertising Support
- Smart Features
- Full TelemetryRemote Recipe AdjustmentRemote Interface ChangeWeb-based Monitoring

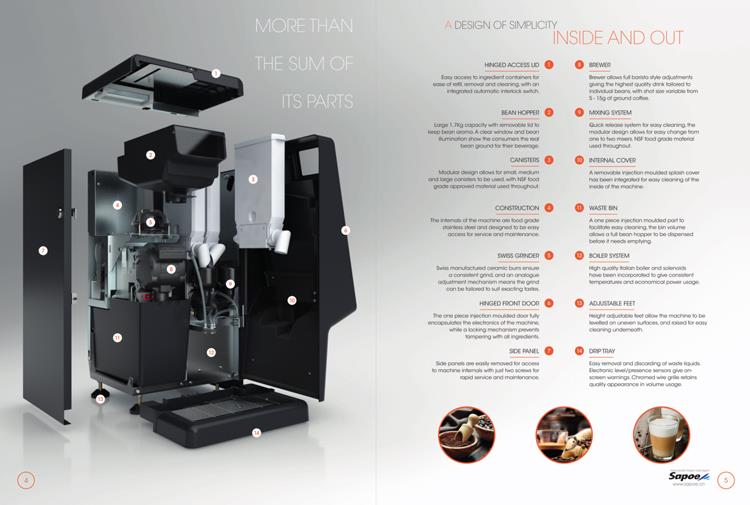

Components
Premium Components
- Swiss-manufactured ceramic burr grinder
- Italian pressure boiler and valve system
- Variable brewer (5-15g ground coffee capacity)
- Quick-release modular mixing system
- Food-grade stainless steel interior construction
Dimensions
Machine Dimensions
| Dimension | Value |
|---|---|
| Height | 705 mm |
| Width | 338 mm |
| Depth | 510 mm |
Beverage Options
- Supported Beverage Ingredients
- Bean EspressoInstant CoffeeChocolateMilk/Instant MixDecaffeinated CoffeeHot WaterSugar
Maintenance
Service & Cleaning
- Automated cleaning and descaling programs
- Removable splash cover and drip tray
- Hinged front door for easy electronic access
- Removable side panels for rapid servicing
- Electronic level sensors for drip tray
